GJYXFCH GJYXCH Outdoor FTTH Drop Cable With LSZH Sheath

FTTH outdoor drop cable(GJYXFCH/GJYXCH) is also called self-supporting butterfly drop optical cable with a indoor butterfly cable and an additional strength member. It is for outdoor communication applications. LSZH sheath is extruded outside for application of fiber to the home.

Fiber Type: G652D, G657A1, G657A2 available
Fiber Count: 1-12 Cores
Standard: IEC 60794-4、 IEC 60793、TIA/EIA 598 A

Application:
● Internal FTTH applications horizontal and riser.
● Clipping to surfaces including skirting boards.
● Short distance external use with black LSZH jacket.

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Structure Design:

Main Features:
1. GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, ensure data transmission.
2. Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install.
3. Two parallel phosphated steel wires as strength members have excellent crush and tensile resistance.
4. Self-supporting steel wire strength component withstand most part of tension.
5. Low smoke, non-halogen flame retardant outer sheath material.

Optical Fiber Charactristic:

		G.652	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Technical Parameter:

Fiber count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long /Short Term N	Crush Resistance Long /Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.)×(5.0±0.2)	20	300/600	1000/2200	20/40
2	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
4	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
6	(2.5±0.2)×(6.0±0.2)	24	300/600	1000/2200	20/40
8	(2.5±0.2)×(6.0±0.2)	24	300/600	1000/2200	20/40
12	(2.0±0.)×(5.0±0.2)	20	300/600	1000/2200	20/40

Storage/Operating Temperature : -20℃ to + 60℃

Note:

Only a part of FTTH Drop cables are listed in the table. Cables with other specifications can be inquired.
Cables can be supplied with a range of single mode or multimode fibers.
Specially designed Cable structure is available on request.

How to choose an economical and practical cable drum packaging to drop cable?

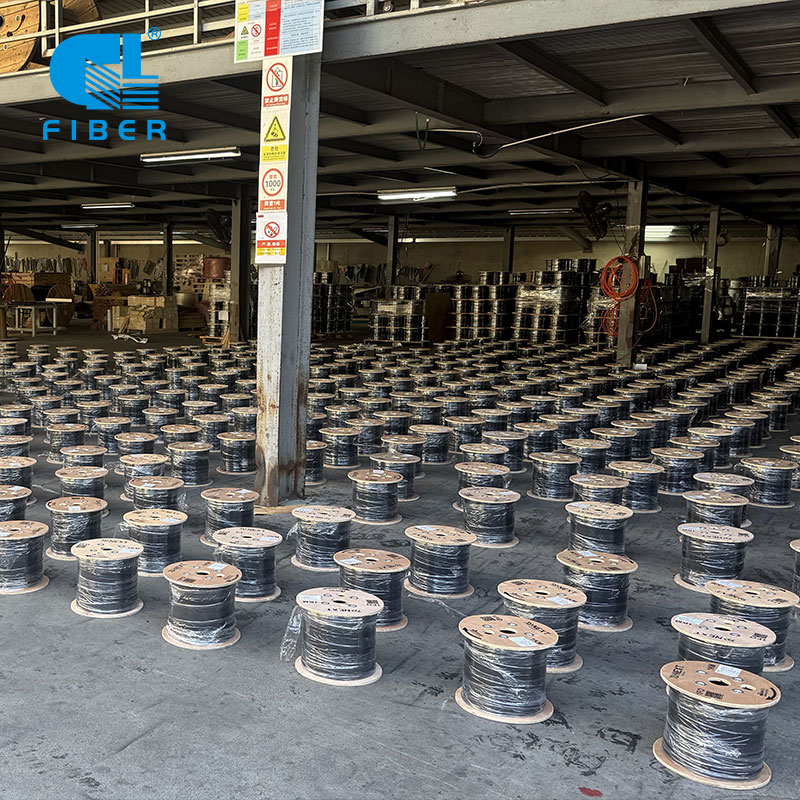

Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its' advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.

Meanwhile, we have 15 years mature logistic team, 100% meet your good safety and delivery time.

Package of FTTH Drop Cable
No	Item	Index
No	Item	Outdoor Drop Cable	Indoor Drop Cable	Flat Drop Cable
1	Length and packaging	1000m/Plywood Reel	1000m/Plywood Reel	1000m/Plywood Reel
2	Plywood reel size	250×110×190mm	250×110×190mm	300×110×230mm
3	Carton size	260×260×210mm	260×260×210mm	360×360×240mm
4	Net weight	21 kg/km	8.0 kg/km	20 kg/km

Loading quantity suggestion
20'GP container	1KM/roll	600KM
20'GP container	2KM/roll	650KM
40'HQ container	1KM/roll	1100KM
40'HQ container	2KM/roll	1300KM

*The above is just a suggestion for container loading, please consult our sales department for the specific quantity.

Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].

Write your message here and send it to us

Optical Fiber Charactristic:

		G.652	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Technical Parameter:

Fiber count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long /Short Term N	Crush Resistance Long /Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.)×(5.0±0.2)	20	300/600	1000/2200	20/40
2	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
4	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
6	(2.5±0.2)×(6.0±0.2)	24	300/600	1000/2200	20/40
8	(2.5±0.2)×(6.0±0.2)	24	300/600	1000/2200	20/40
12	(2.0±0.)×(5.0±0.2)	20	300/600	1000/2200	20/40

Storage/Operating Temperature : -20℃ to + 60℃

Note: Only a part of FTTH Drop cables are listed in the table. Cables with other specifications can be inquired.
Cables can be supplied with a range of single mode or multimode fibers.
Specially designed Cable structure is available on request.

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Port:
Shanghai/Guangzhou/Shenzhen

Lead Time:

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Package of FTTH Drop Cable
No	Item	Index
No	Item	Outdoor Drop Cable	Indoor Drop Cable	Flat Drop Cable
1	Length and packaging	1000m/Plywood Reel	1000m/Plywood Reel	1000m/Plywood Reel
2	Plywood reel size	250×110×190mm	250×110×190mm	300×110×230mm
3	Carton size	260×260×210mm	260×260×210mm	360×360×240mm
4	Net weight	21 kg/km	8.0 kg/km	20 kg/km
5	Gross weight	23 kg/Box	9.0 kg/Box	21.5 kg/Box

Package & Shipping:

How to choose an economical and practical cable drum packaging to drop cable? Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its’ advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.

https://www.gl-fiber.com/products-ftth-drop-cable/

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

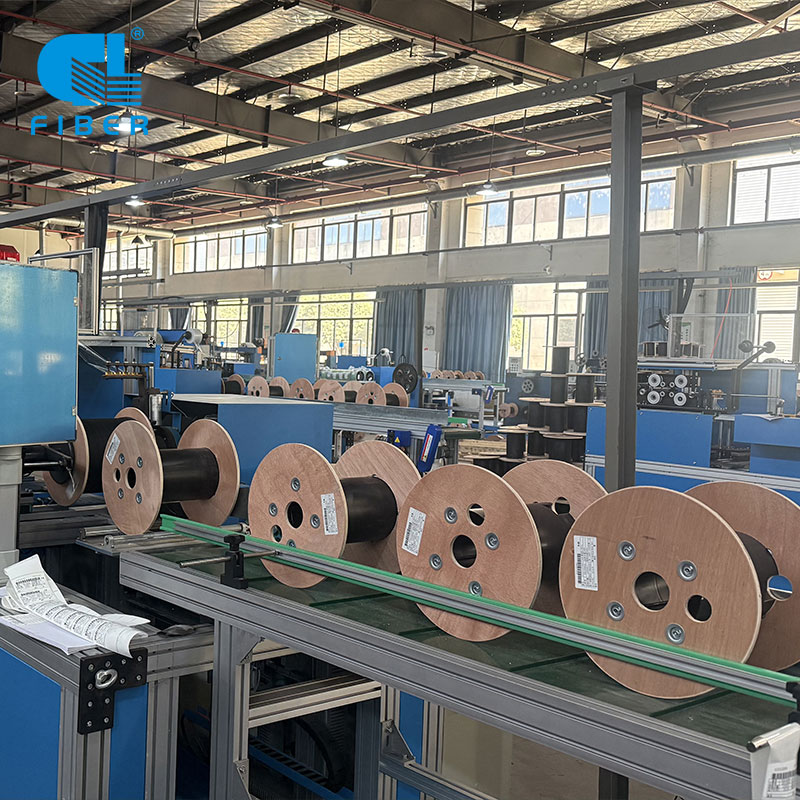

GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
