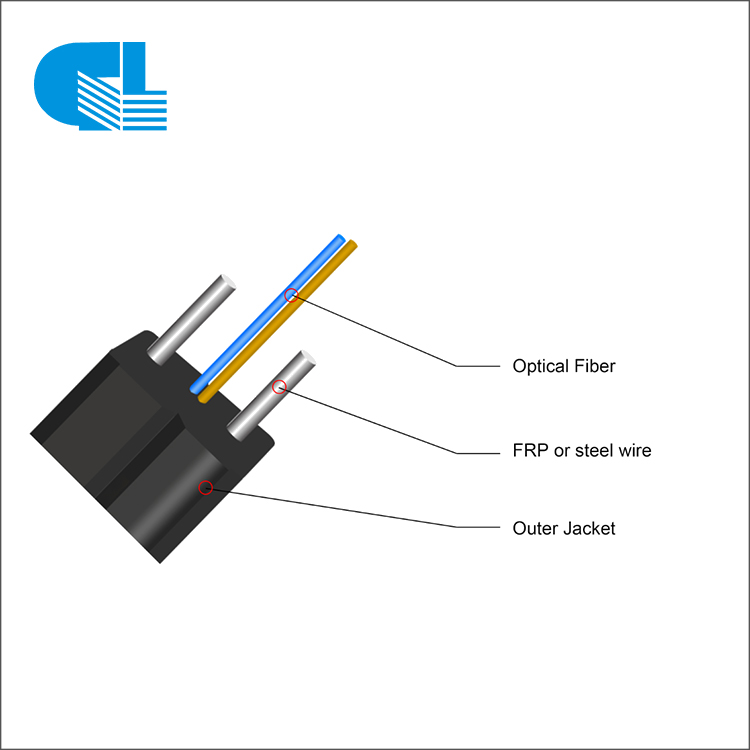

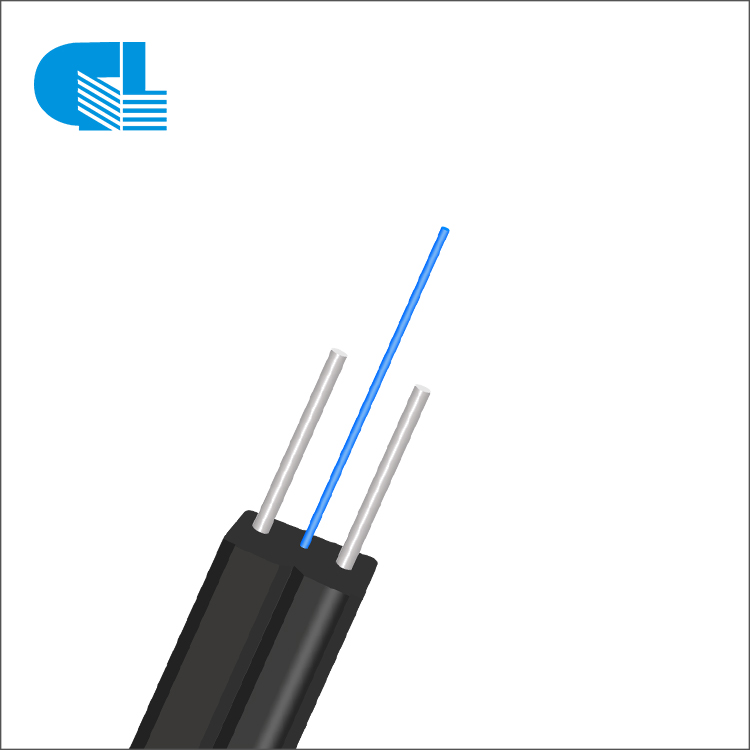

GJXFH central fibers contains 1 core , 2 cores , 4 cores , and up to 12cores , it`s the optical communication unit in the center, placed on both sides of two parallel Steel Wire/FRP/KFRP as the strength members, and the outer jacket material is LSZH,sometimes PVC or PE according to costomer demand.

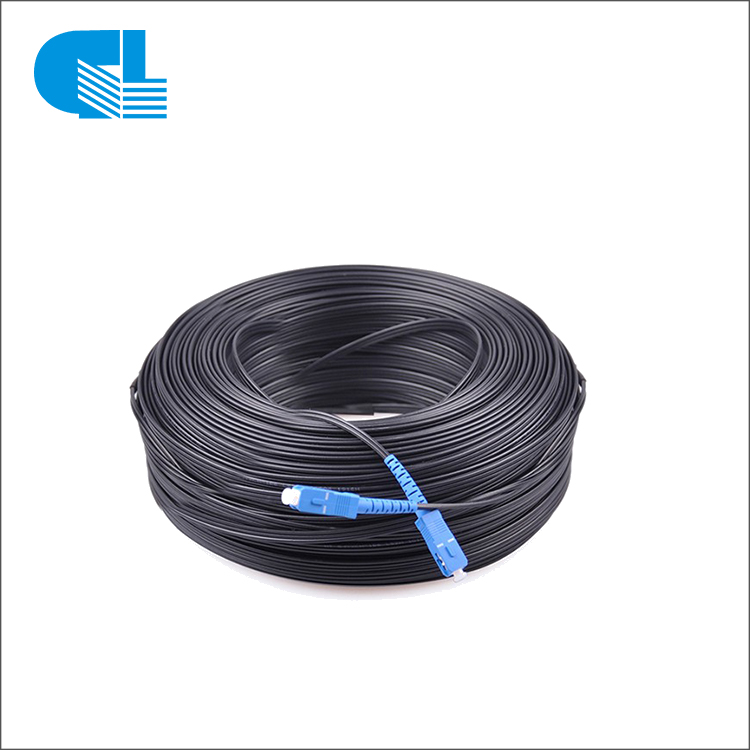

Product Name:1-12 Core Indoor FTTH Drop Cable FRP KFRP Steel Wire
Brand Place of Origin: GL Hunan,China (Mainland)
Provide OEM/ODM Services !
Indoor
1，All types of fiber cables with different structures.
2，High performance optical network operating.
3，High speed optical routes in buildings (FTTX).
Operating :-20℃ to 60℃
Storage :-20℃ to 60℃
1，Special flexible cable, to provide greater bandwidth and enhance network transmission characteristics;
2，Two parallel FRP make the cable have good compression performance, protect the optical cable;
3，Cable structure is simple, light weight, practicality;
4，Unique groove design, easy to peel, easy to pick, simplify installation and maintenance;
5，Low-smoke halogen-free flame retardant sheath, environmental protection.
Comply with standard YD/T1997-2009
Only a part of Drop Cables are listed here. We can depend on customer’s requirement to producing the different model Drop Cables.
We supply OEM&ODM Service. Contact Us Now !
E-Mail: [email protected]
WhatsApp:+86 18073118925 Skype: opticfiber.tim
|
1) |
Fiber | |
|
Singlemode: G652D, G657A1, G657A2 etc |
||
|
2) |
Strength member： |
|
|
Amount |
2 PCS | |
| Material |
Metallic, FRP, KFRP |
|
| Diameter |
0.50±0.10 mm |
|
|
3) |
Fiber counts |
1~12 cores |
|
4) |
Outer sheath of Indoor FTTH Cable: |
|
|
Material |
PVC or LSZH – Low smoke zero halogen |
|
|
Color |
White, Black |
|
|
Diameter |
2.0 H × 3.0 W ± 0.1 mm OR 2.0 H × 4.0 W ± 0.1 mm |
|
| Marking |
As per Customer Request |
|
|
Tensile properties of Indoor FTTH Cable |
||||
| No. | Item | Units |
Index |
|
|
1 |
Pulling Load (short time) | N |
≤ 80 |
|
|
2 |
Pulling Load (long time) | N |
≤ 40 |
|
|
3 |
Crush load (short time) | N/100mm |
≤ 1000 |
|
|
4 |
Crush load (long time) | N/100mm |
≤ 500 |
|
|
5 |
Bend radius ( static ) | mm |
≥ 15 |
|
|
6 |
Bend radius ( Dynamic ) | mm |
≥ 30 |
|
|
Environmental conditions of Indoor FTTH Cable |
||||
|
No. |
Item | Units |
Index |
|
|
1 |
Storage temperature range | ℃ | -40 to +70 | |
| 2 | Install the temperature range | ℃ |
-0 to +50 |
|
| 3 |
Operating temperature range |
℃ |
-20 to +70 |
|
1，Only a part of FTTH Drop cables are listed in the table. Cables with other specifications can be inquired.
2，Cables can be supplied with a range of single mode or multimode fibers.
3，Specially designed Cable structure is available on request.
Packed by Plywood and Carton.
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: Guanglian or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 7 years;
d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) |
1-300 |
≥300 |
| Est.Time(Days) |
15 |
To be begotiated! |
Package of FTTH Drop Cable |
||||
| No | Item | Index | ||
| Outdoor Drop Cable | Indoor Drop Cable | Flat Drop Cable | ||
| 1 | Length and packaging | 1000m/Plywood Reel | 1000m/Plywood Reel | 1000m/Plywood Reel |
| 2 | Plywood reel size | 250×110×190mm | 250×110×190mm | 300×110×230mm |
| 3 | Carton size | 260×260×210mm | 260×260×210mm | 360×360×240mm |
| 4 | Net weight | 21 kg/km | 8.0 kg/km | 20 kg/km |
| 5 | Gross weight | 23 kg/Box | 9.0 kg/Box | 21.5 kg/Box |
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.
GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
