AAC/AAAC Bare Conductor

All Aluminium Alloy Conductors (AAAC) are extensively used for primary and secondary transmission in bare overhead distribution and transmission lines (11 kV to 800 kV lines) and HV substations. Also, usable in highly polluted industrial areas and coastal regions due to corrosion resistance.

Character: 1.Aluminum Conductor； 2.Steel Reinforced； 3.Bare.

Standard: IEC, BS, ASTM, CAN-CSA, DIN, IS, AS and relevant national and international standards.

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

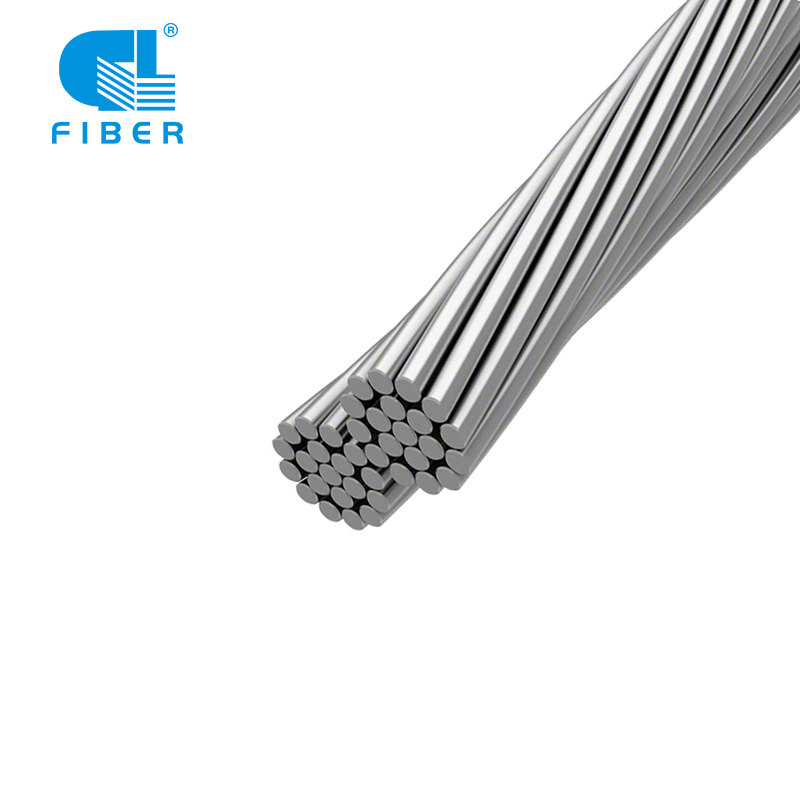

AAAC (All Aluminium Alloy Conductors)-Several layers of aluminium alloy (generally Al-Mg-Si) stranded in concentic layers. Designed using a high strength aluminium alloy to achieve a high strength-to-weight ratio; affords better sag characteristics.

Manufacturing Capability:

SR.NO	DESCRIPTION	RANGE
01	Conductor Area	10.6mm2 to 1095mm2	0.0164 in2 1.6973 in2
02	Conductor construction	7Al Alloy to 91 Al Alloy
03	Conductivity of Aluminium	52.5% to 53%

Physical Properties:

At a temperature of 20°C (68°F), the density of hard-drawn aluminium has been taken as 2.703 g/cm3 (168.74 lb/cf).

SR. NO.	CONDUCTOR CONSTRUCTION	MODULUS OF MPA	ELASTISITY* KSI	LINEAR COEFFCIENT*
SR. NO.	CONDUCTOR CONSTRUCTION	MODULUS OF MPA	ELASTISITY* KSI	/OC	/OF
01	7 Strands	62000	8992	23.0 X 10-6	12.8 X 10-6
02	19 Strands	60000	8702	23.0 X 10-6	12.8 X 10-6
03	37 Strands	57000	8267	23.0 X 10-6	12.8 X 10-6
04	61 Strands	55000	7977	23.0 X 10-6	12.8 X 10-6

Write your message here and send it to us

Advantage:AAAC has good corrosion resistance, however due to the absence of steel, its resistance is lower than ACSR. AAAC can carry 15-20% extra current and has a higher life span (60 years) as compared to ACSR of equal size (30 years). The surface hardness of AAAC is 80 BHN while ACSR has hardness 35 BHN. This reduces damage to the surface during handling, thereby leading to lesser corona losses and ratio interference at EHV. AAAC can be operated with stable temperature of 85°C against ACSR conductors which are stable upto 75°C. Since AAAC has higher strength-to-weight ratio, span can be increased by 2-15% resulting in overall reduction of cost in tower supports and other accessories in the transmission line system.

AAAC Conductor Parameter List:

AAAC conductor-ASTM B 399B 399M
Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
6	13.2	7/1.55	4.65	36.2	4.18	2.5361	69
4	21.1	7/1.96	5.88	57.9	6.69	1.586	93
2	33.5	7/2.47	7.41	92	10.6	0.9987	123
0	53.5	7/3.12	9.36	146.8	17	0.62592	165
2/0	67.3	7/3.50	10.5	184.8	20.4	0.49738	190
3/0	84.9	7/3.93	11.79	233	25.7	0.3945	219
4/0	107	7/4.42	13.26	294.7	32.5	0.31188	253
250	126	19/2.91	14.55	346.7	38.8	0.26509	280
300	152	19/3.19	15.95	416.7	46.6	0.22059	313
350	178	19/3.45	17.25	487.3	52	0.1886	345
400	203	19/3.69	18.45	557.5	59.5	0.16486	375
450	228	19/3.91	19.55	626	66.8	0.14683	402
500	253	19/4.12	20.6	695	74.2	0.13224	429
550	279	37/3.10	21.7	766.2	83.9	0.11995	455
600	303	37/3.23	22.61	831.9	91	0.11049	478
650	330	37/3.37	23.59	905.5	94.9	0.1015	504
700	354	37/3.49	24.43	971.2	101	0.09464	525
750	381	37/3.62	25.34	1045	109	0.08796	549
800	404	37/3.73	26.11	1109	116	0.08285	569
900	456	37/3.96	27.72	1250	131	0.07351	612
1000	508	37/4.18	29.26	1393	146	0.06597	653
1250	631	61/3.63	32.67	1732	179	0.05306	743
1500	759	61/3.98	35.82	2082	215	0.04414	827
1750	886	61/4.30	38.7	2431	251	0.03781	904

AAAC conductor-BS 3242
Code	AL Nominal Area	Cu Nominal Area Equivalent	Total Area	Stranding	Overall Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

AAAC conductor-BS EN 50182
Code	Stranding	Nominal Area	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

AAAC conductor-IEC 61089
Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185

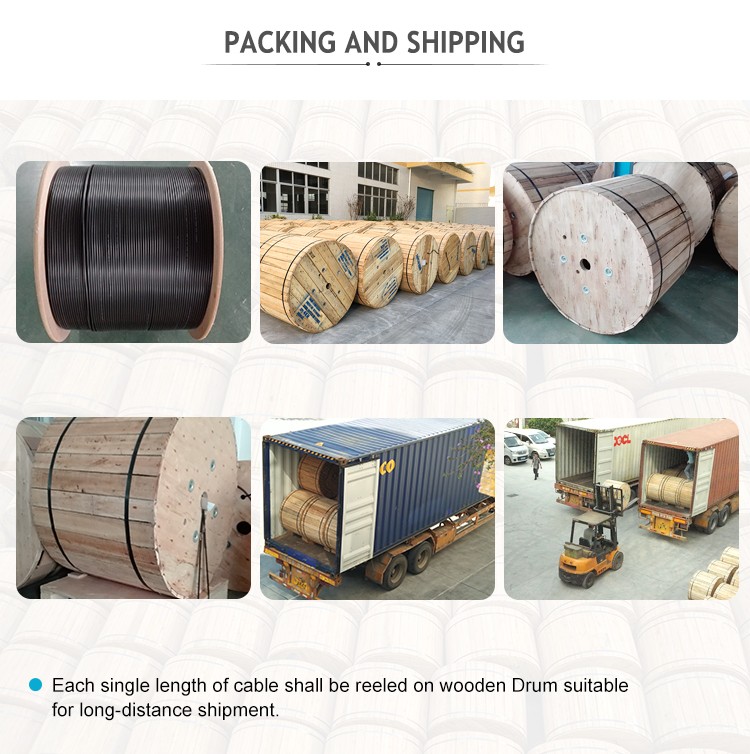

Packaging Details：

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
