Professional aluminum cable manufacturer from China, Meet your kinds of requirement aluminum wire cable With over 17 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size.
Product Name: AAC All Aluminium Conductor
Charactor: All Aluminum Conductor; Bare;

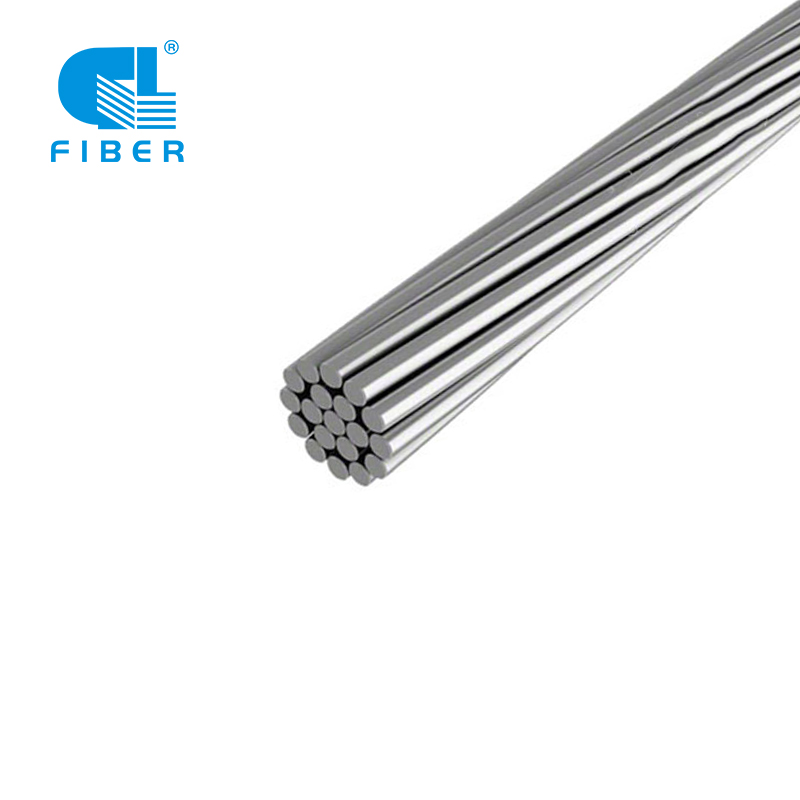

This kind of conductor is composed by one or more layer of pure aluminium AA1350-H19, hard drawn. The conductivity is 61%IACS. This kind of conductor has a very low value of specific mechanical resistance and it’s used for short lengths (for example next to the stations) and not for long spans. This kind of conductor has a very good resistance to corrosion and his modulus of elasticity is characterized by a law that consider the formation of the conductor (number of wires and layers).
Item AAC Tarantula Details:
| Code Name | Tarantula | |
| Nominal Aluminum Area | mm2 | 750 |
| Stranding and Wire Diameter | mm | 37/5.23 |
| Sectional Area | mm2 | 794.60 |
| Approximate Overall Diameter | mm | 36.60 |
| Linear Mass | kg/km | 2191 |
| Calculated Breaking Load | daN | 12010 |
| Calculated D.C. Resistance at 20℃ | Ω/km | 0.0363 |
| Current Rating | A | 1150 |
Item AAC Wasp Details:
| Code Name | Wasp | |
| Nominal Aluminum Area | mm2 | 100 |
| Stranding and Wire Diameter | mm | 7/4.39 |
| Sectional Area | mm2 | 106.00 |
| Approximate Overall Diameter | mm | 13.17 |
| Linear Mass | kg/km | 290 |
| Calculated Breaking Load | daN | 1600 |
| Calculated D.C. Resistance at 20℃ | Ω/km | 0.2702 |
| Current Rating | A | 271 |
Item AAC Hawthorn Details:
| Code Name | Hawthorn | |
| Total Area | AWG or MCM | 1192.5 |
| mm2 | 604.26 | |
| Stranding and wire diameter | mm | 61/3.551 |
| Approximate Overall Diameter | mm | 31.05 |
| Linear Mass | Kg/km | 1666 |
| Nominal breaking Load | daN | 9245 |
| Maximum Resistance at 20℃ | Ω/km | 0.0477 |
| Current Rating | A | 767 |
Item AAC Aster Details:
| Code Name | Aster | |
| Total Area | AWG or MCM | 2/0 |
| mm2 | 67.42 | |
| Stranding and wire diameter | mm | 7/3.503 |
| Approximate Overall Diameter | mm | 10.51 |
| Linear Mass | Kg/km | 186 |
| Nominal breaking Load | daN | 1100 |
| Maximum Resistance at 20℃ | Ω/km | 0.4276 |
| Current Rating | A | 207 |
Item AAC Cosmos Details:
| Code Name | Cosmos | |
| Total Area | AWG or MCM | 477 |
| mm2 | 241.68 | |
| Stranding and wire diameter | mm | 19/4.023 |
| Approximate Overall Diameter | mm | 20.12 |
| Linear Mass | Kg/km | 666 |
| Nominal breaking Load | daN | 3708 |
| Maximum Resistance at 20℃ | Ω/km | 0.1193 |
| Current Rating | A | 447 |
Application: Classes 1 AA and A are used primarily for overhead transmission and primary and secondary distribution, where ampacity must be maintained and a lighter conductor (compared to ACSR) is desired, when conductor strength is not a critical factor. Classes B and C are used primarily as bus, apparatus connectors and jumpers, where additional flexibility is required.
Item AAC Tarantula Details:
| Code Name | Tarantula | |
| Nominal Aluminum Area | mm2 | 750 |
| Stranding and Wire Diameter | mm | 37/5.23 |
| Sectional Area | mm2 | 794.60 |
| Approximate Overall Diameter | mm | 36.60 |
| Linear Mass | kg/km | 2191 |
| Calculated Breaking Load | daN | 12010 |
| Calculated D.C. Resistance at 20℃ | Ω/km | 0.0363 |
| Current Rating | A | 1150 |
Item AAC Wasp Details:
| Code Name | Wasp | |
| Nominal Aluminum Area | mm2 | 100 |
| Stranding and Wire Diameter | mm | 7/4.39 |
| Sectional Area | mm2 | 106.00 |
| Approximate Overall Diameter | mm | 13.17 |
| Linear Mass | kg/km | 290 |
| Calculated Breaking Load | daN | 1600 |
| Calculated D.C. Resistance at 20℃ | Ω/km | 0.2702 |
| Current Rating | A | 271 |
Item AAC Hawthorn Details:
| Code Name | Hawthorn | |
| Total Area | AWG or MCM | 1192.5 |
| mm2 | 604.26 | |
| Stranding and wire diameter | mm | 61/3.551 |
| Approximate Overall Diameter | mm | 31.05 |
| Linear Mass | Kg/km | 1666 |
| Nominal breaking Load | daN | 9245 |
| Maximum Resistance at 20℃ | Ω/km | 0.0477 |
| Current Rating | A | 767 |
Item AAC Aster Details:
| Code Name | Aster | |
| Total Area | AWG or MCM | 2/0 |
| mm2 | 67.42 | |
| Stranding and wire diameter | mm | 7/3.503 |
| Approximate Overall Diameter | mm | 10.51 |
| Linear Mass | Kg/km | 186 |
| Nominal breaking Load | daN | 1100 |
| Maximum Resistance at 20℃ | Ω/km | 0.4276 |
| Current Rating | A | 207 |
Item AAC Cosmos Details:
| Code Name | Cosmos | |
| Total Area | AWG or MCM | 477 |
| mm2 | 241.68 | |
| Stranding and wire diameter | mm | 19/4.023 |
| Approximate Overall Diameter | mm | 20.12 |
| Linear Mass | Kg/km | 666 |
| Nominal breaking Load | daN | 3708 |
| Maximum Resistance at 20℃ | Ω/km | 0.1193 |
| Current Rating | A | 447 |
1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.
The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.
GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
