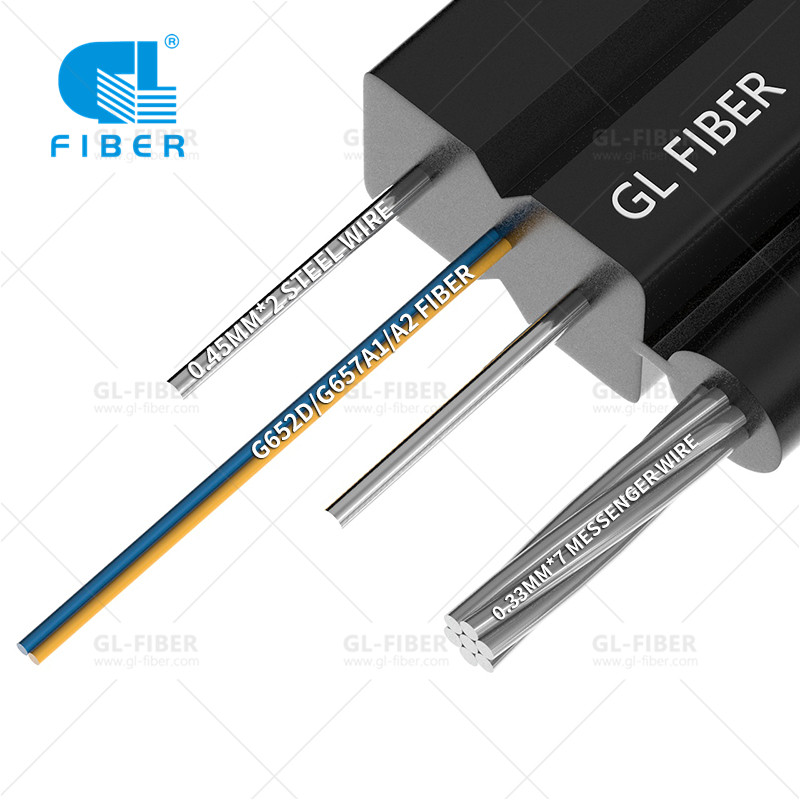

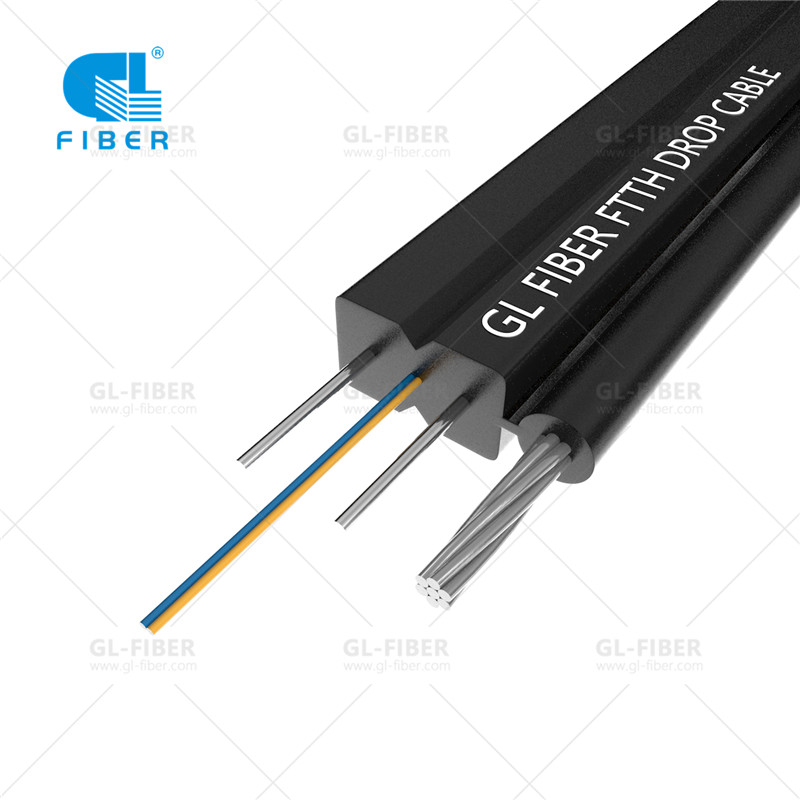

The typical self-supporting bow-type drop fiber optic cable consists of GJYXFCH/GJYXCH cable and an additional strength member with stranded steel wire（The Diameter is 0.33mm*7).
Fiber Type: G652D; G657A1; 657A2;
Fiber Count: 1-12 Cores
Messenger: 1.0, 1.2mm Optional

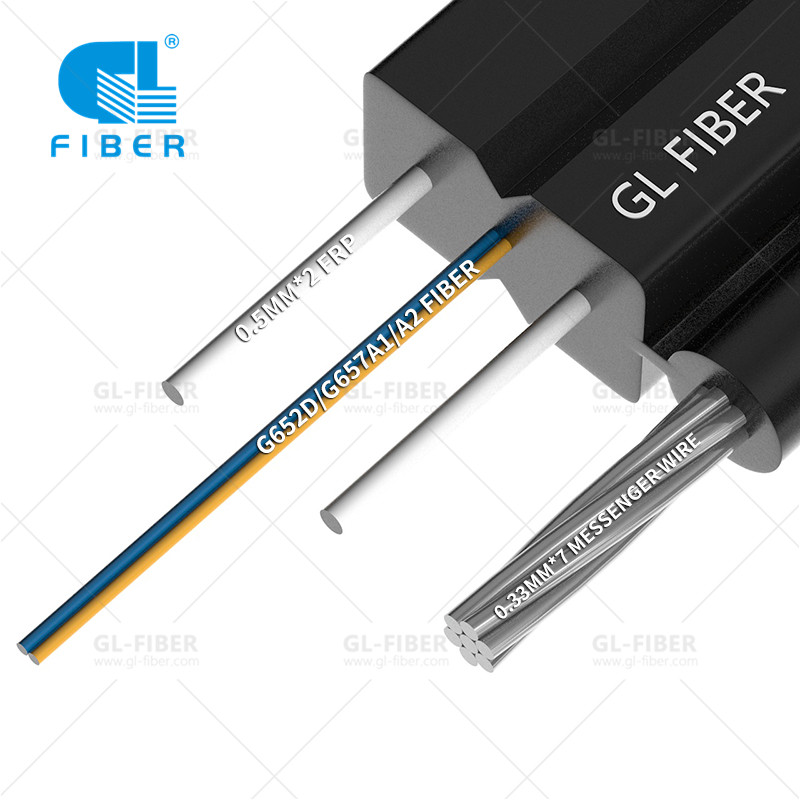

Strength Member: Steel Wire, FRP, KFRP
Jacket: PVC/LSZH
Color: Black /Grey/White

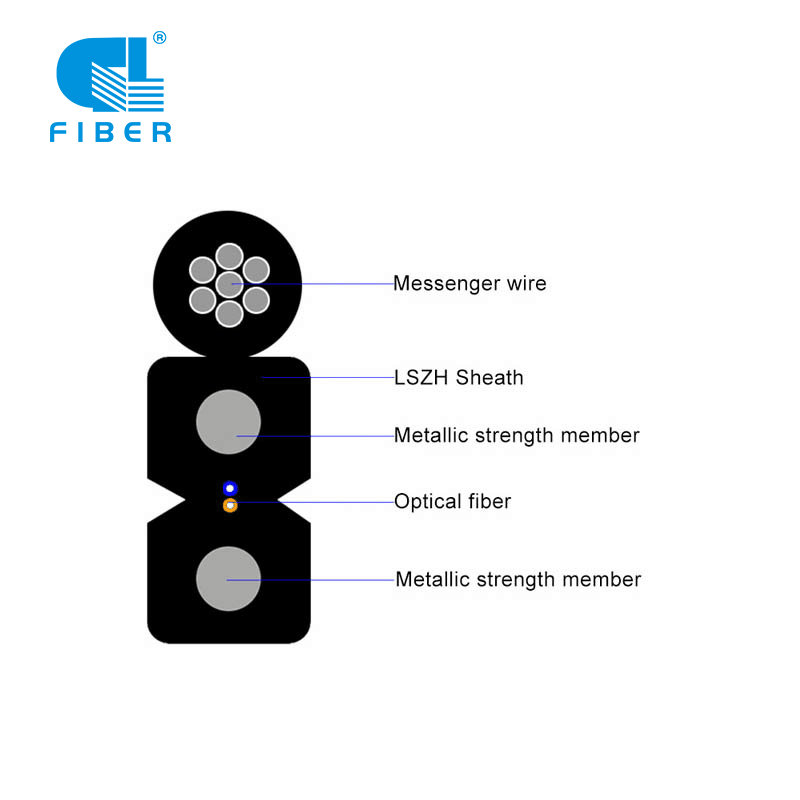

Structure:
Characteristic:
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Standards:
Comply with standard IEC 60794-4、 IEC 60793、TIA/EIA 598 A
| G.652 | G.657 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.40 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1260nm | |||
|

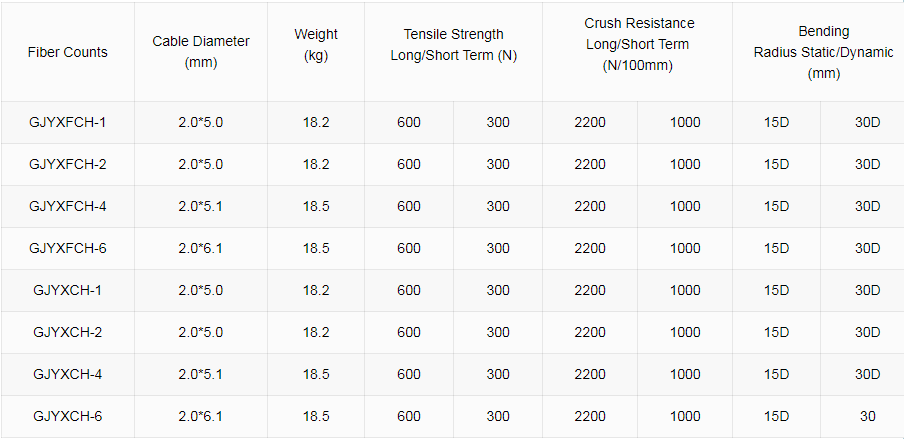

Fiber count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long |
Crush Resistance Long /Short Term N/100mm |
Bending Radius Static /Dynamic mm |
|
1 |
2.0±0.2*5.2±0.2 |
21.5 |
300/600 |
1000/2200 |
20/40 |
|
2 |
2.0±0.2*5.2±0.2 |
21.5 |
300/600 |
1000/2200 |
20/40 |
|
4 |
2.0±0.2*5.2±0.2 |
21.5 |
300/600 |
1000/2200 |
20/40 |
|
6 |
2.5±0.2*6.0±0.2 |
27.5 |
300/600 |
1000/2200 |
20/40 |
|
8 |
2.5±0.2*6.0±0.2 |
27.5 |
300/600 |
1000/2200 |
20/40 |
|
12 |
3.0±0.2*7.0±0.2 |
35.5 |
300/600 |
1000/2200 |
20/40 |
Storage/Operating Temperature : -20℃ to + 60℃
Noted:
How to choose an economical and practical cable drum packaging to drop cable?

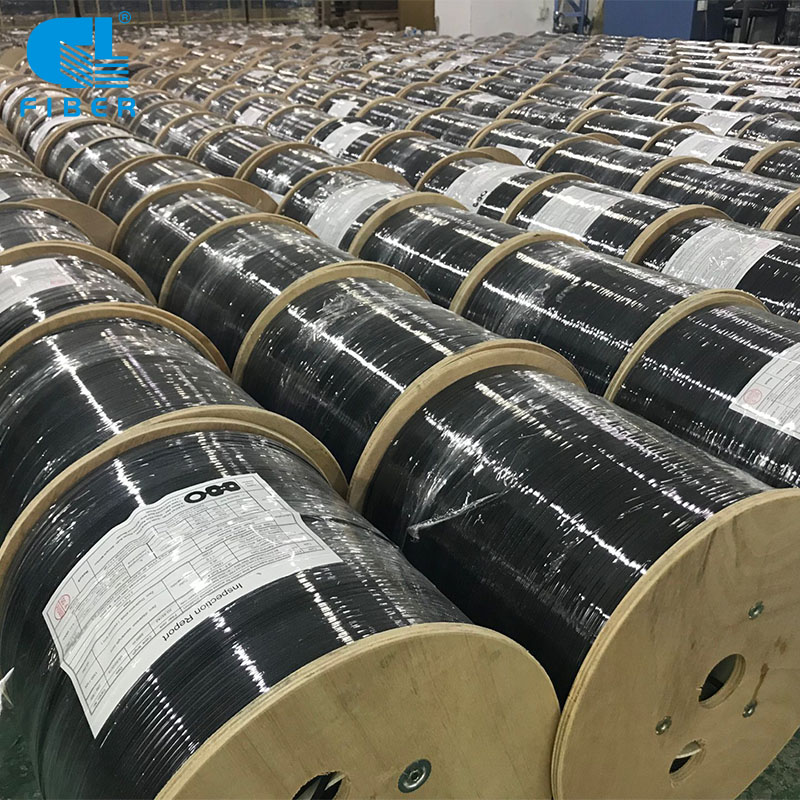

Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its' advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.
Meanwhile, we have 15 years mature logistic team, 100% meet your good safety and delivery time.
Package of FTTH Drop Cable |
||||
| No | Item | Index | ||
| Outdoor Drop Cable | Indoor Drop Cable | Flat Drop Cable | ||
| 1 | Length and packaging | 1000m/Plywood Reel | 1000m/Plywood Reel | 1000m/Plywood Reel |
| 2 | Plywood reel size | 250×110×190mm | 250×110×190mm | 300×110×230mm |
| 3 | Carton size | 260×260×210mm | 260×260×210mm | 360×360×240mm |
| 4 | Net weight | 21 kg/km | 8.0 kg/km | 20 kg/km |
| Loading quantity suggestion | ||
| 20'GP container | 1KM/roll | 600KM |
| 2KM/roll | 650KM | |
| 40'HQ container | 1KM/roll | 1100KM |
| 2KM/roll | 1300KM | |
*The above is just a suggestion for container loading, please consult our sales department for the specific quantity.
Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].
| G.652 | G.657 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.40 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1260nm | |||
|
Fiber count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long |
Crush Resistance Long /Short Term N/100mm |
Bending Radius Static /Dynamic mm |
|
1 |
2.0±0.2*5.2±0.2 |
21.5 |
300/600 |
1000/2200 |
20/40 |
|
2 |
2.0±0.2*5.2±0.2 |
21.5 |
300/600 |
1000/2200 |
20/40 |
|
4 |
2.0±0.2*5.2±0.2 |
21.5 |
300/600 |
1000/2200 |
20/40 |
|
6 |
2.5±0.2*6.0±0.2 |
27.5 |
300/600 |
1000/2200 |
20/40 |
|
8 |
2.5±0.2*6.0±0.2 |
27.5 |
300/600 |
1000/2200 |
20/40 |
|
12 |
3.0±0.2*7.0±0.2 |
35.5 |
300/600 |
1000/2200 |
20/40 |
Storage/Operating Temperature : -20℃ to + 60℃
Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;
The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length
Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:
1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight
Port:
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
Package of FTTH Drop Cable |
||||
| No | Item | Index | ||
| Outdoor Drop Cable | Indoor Drop Cable | Flat Drop Cable | ||
| 1 | Length and packaging | 1000m/Plywood Reel | 1000m/Plywood Reel | 1000m/Plywood Reel |
| 2 | Plywood reel size | 250×110×190mm | 250×110×190mm | 300×110×230mm |
| 3 | Carton size | 260×260×210mm | 260×260×210mm | 360×360×240mm |
| 4 | Net weight | 21 kg/km | 8.0 kg/km | 20 kg/km |
| 5 | Gross weight | 23 kg/Box | 9.0 kg/Box | 21.5 kg/Box |
Package & Shipping:
In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.
GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
