GJXFH/GJXH Indoor FTTH Bow-type Drop Cable

The typical bow-type drop optical cable(GJXFH/GJXH) includes central optical fibers with 2 parallel KFRPs or steel wire as the strength members placed on both sides, a LSZH or PVC sheath is extruded outside.

Fiber Type: G652D, G657A1, G657A2 available
Fiber Count: 1,2,4,6,12 Cores
Outer Sheath:  LSZH

Application :
1. All types of fiber cables with different structures
2. High performance optical network operating
3. High speed optical routes in buildings (FTTX)






Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback

Structure Design:

https://www.gl-fiber.com/indoor-ftth-bow-type-drop-cable-gjxfhgjxh.html

Main Feature:
1. Simple structure, light weight, high tensile strength
2. Novel groove design, easily strip and splice,simplified installation and maintenance
3. Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety

Our FTTH drop cable Constructed with 1 or 2 single mode flber (G.657A). Protected by two parallel strength members(galvanized steel). Protected by two parallel strength members(galvanized steel).

Standards: IEC 60794-4、 IEC 60793、TIA/EIA 598 A

Optical Fiber Charactristic:

G.652 G.655 50/125μm 62.5/125μm
@850nm     ≤3.5    dB/km ≤3.5    dB/km
@1300nm     ≤1.5    dB/km ≤1.5    dB/km
@1310nm ≤0.40    dB/km ≤0.40    dB/km
@1550nm ≤0.30    dB/km ≤0.30dB/km
@850nm     ≥500    MHz·km ≥200    MHz·km
@1300nm     ≥500    MHz·km ≥500    MHz·km
Numerical    Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm ≤1260nm

Cable Technical Parameters:

Fiber count

Cable Diameter mm

Cable Weight kg/km

Tensile Strength Long
     /Short Term N

Crush
     Resistance    Long
     /Short    Term N/100mm

Bending Radius Static /Dynamic mm

1

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

2

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

4

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

6

(2.5±0.2)×(4.0±0.2)

8.5

40/80

500/1000

20/40

8

(2.5±0.2)×(4.0±0.2)

9.0

40/80

500/1000

20/40

12

(3.0±0.2)×(4.0±0.2)

9.7

40/80

500/1000

20/40

Storage/Operating  Temperature : -20℃ to + 60℃

Notes: Only a part of Drop Cables are listed here. We can depend on customer’s requirement to producing the different model Drop Cables.

How to choose an economical and practical cable drum packaging to drop cable?

Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its' advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.

Meanwhile, we have 15 years mature logistic team, 100% meet your good safety and delivery time.

Package of FTTH Drop Cable
No Item Index
Outdoor Drop Cable Indoor Drop Cable Flat Drop Cable
1 Length and packaging 1000m/Plywood Reel 1000m/Plywood Reel 1000m/Plywood Reel
2 Plywood reel size 250×110×190mm 250×110×190mm 300×110×230mm
3 Carton size 260×260×210mm 260×260×210mm 360×360×240mm
4 Net weight 21 kg/km 8.0 kg/km 20 kg/km
Loading quantity suggestion
20'GP container 1KM/roll 600KM
2KM/roll 650KM
40'HQ container 1KM/roll 1100KM
2KM/roll 1300KM

*The above is just a suggestion for container loading, please consult our sales department for the specific quantity.

https://www.gl-fiber.com/products-ftth-drop-cable/

Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].



Write your message here and send it to us

Optical Fiber Charactristic:

G.652 G.655 50/125μm 62.5/125μm
@850nm     ≤3.5    dB/km ≤3.5    dB/km
@1300nm     ≤1.5    dB/km ≤1.5    dB/km
@1310nm ≤0.40    dB/km ≤0.40    dB/km
@1550nm ≤0.30    dB/km ≤0.30dB/km
@850nm     ≥500    MHz·km ≥200    MHz·km
@1300nm     ≥500    MHz·km ≥500    MHz·km
Numerical    Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm ≤1260nm

Cable Technical Parameters:

Fiber count

Cable Diameter mm

Cable Weight kg/km

Tensile Strength Long
     /Short Term N

Crush
     Resistance    Long
     /Short    Term N/100mm

Bending Radius Static /Dynamic mm

1

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

2

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

4

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

6

(2.5±0.2)×(4.0±0.2)

8.5

40/80

500/1000

20/40

8

(2.5±0.2)×(4.0±0.2)

9.0

40/80

500/1000

20/40

12

(3.0±0.2)×(4.0±0.2)

9.7

40/80

500/1000

20/40

Storage/Operating  Temperature : -20℃ to + 60℃





https://www.gl-fiber.com/products-ftth-drop-cable/

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3,000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Port:
Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Package of FTTH Drop Cable
No Item Index
Outdoor Drop Cable Indoor Drop Cable Flat Drop Cable
1 Length and packaging 1000m/Plywood Reel 1000m/Plywood Reel 1000m/Plywood Reel
2 Plywood reel size 250×110×190mm 250×110×190mm 300×110×230mm
3 Carton size 260×260×210mm 260×260×210mm 360×360×240mm
4 Net weight 21 kg/km 8.0 kg/km 20 kg/km
5 Gross weight 23 kg/Box 9.0 kg/Box 21.5 kg/Box

Package & Shipping:

How to choose an economical and practical cable drum packaging to drop cable? Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its’ advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.
https://www.gl-fiber.com/products-ftth-drop-cable/

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

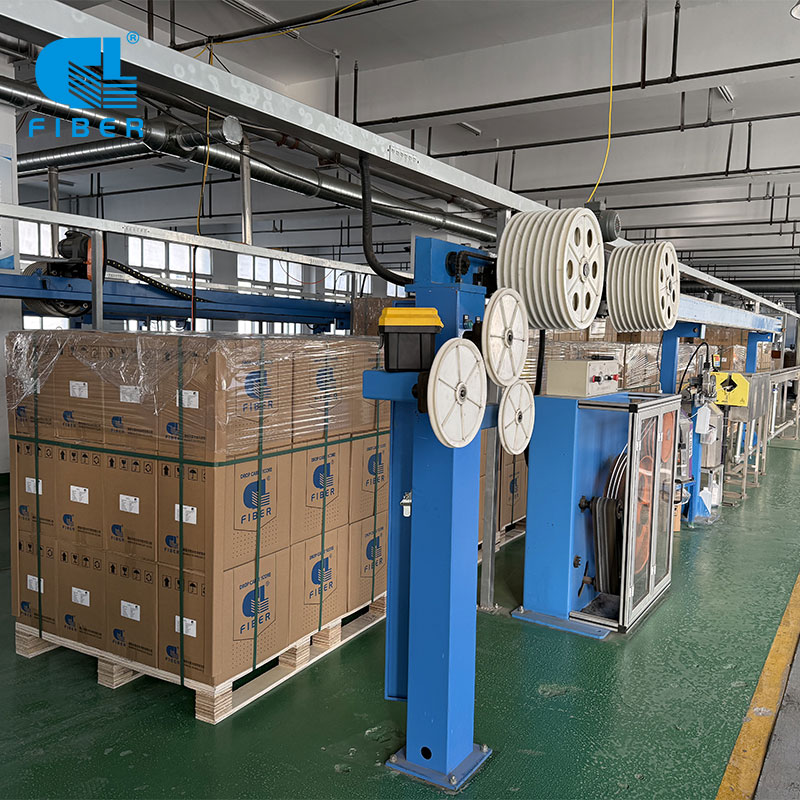

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
