1-12 Core Outdoor FTTH Drop Cable With FRP KFRP Steel Wire

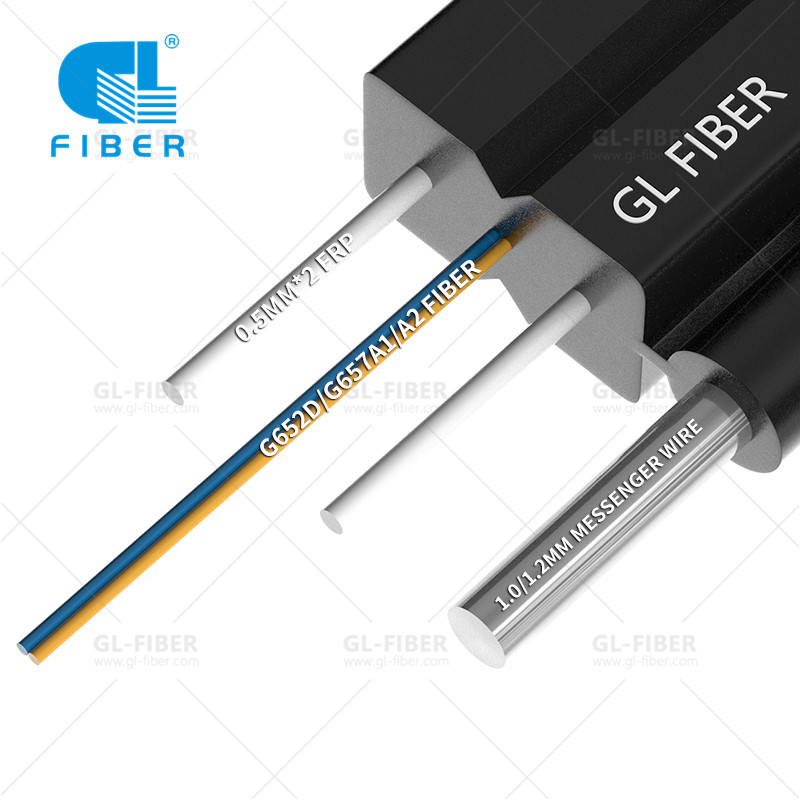

FTTH outdoor fiber optic cable are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.



Fiber Type: G652D, G657A1, G657A2 available;

Fiber count: 1/2/4/6/8/12 cores;

Fiber model: Singlemode;

Jacket Material: PVC, LSZH;

Strength member: Steel Wire/FRP/ KFRP;



Application:

●  Internal FTTH applications horizontal and riser.
●  Clipping to surfaces including skirting boards.
●  Short distance external use with black LSZH jacket.



Description

Specification

Package & Tansportation

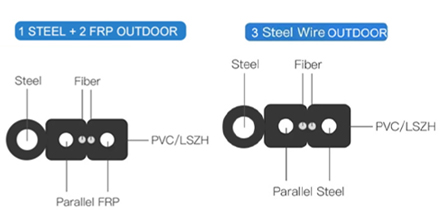

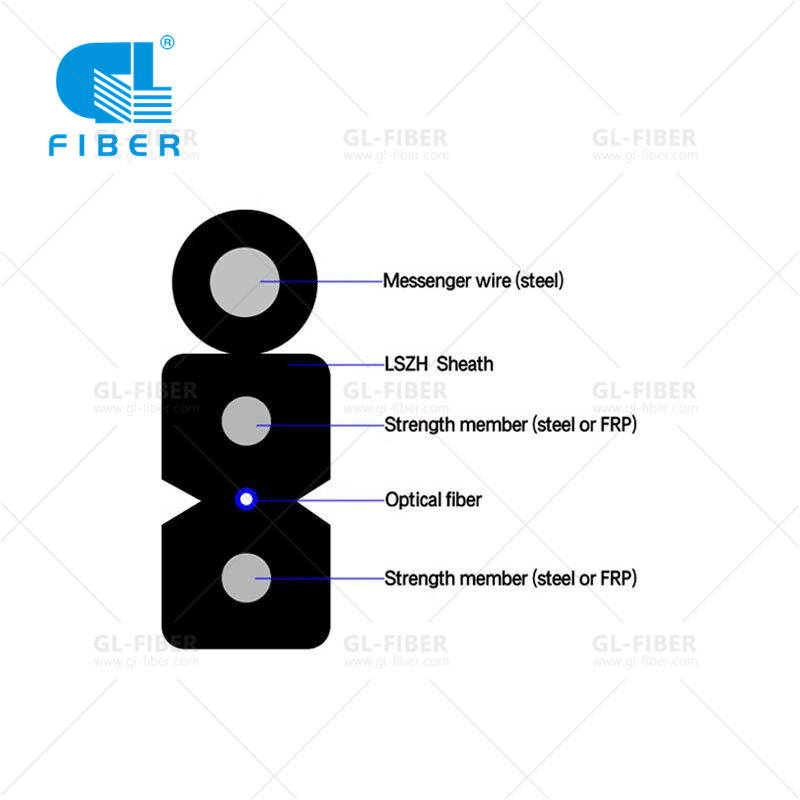

Structure Design:
https://www.gl-fiber.com/1-12-core-outdoor-ftth-drop-cable-frp-kfrp-steel-wire.html

Characteristics:
1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3 Single steel wire as the additional strength member ensure good performance of tensile strength.
4 Simple structure, light weight and high practicability.
5 Novel flute design, easily strip and splice, simplify the installation and maintenance.
6 Low smoke, zero halogen and flame retardant sheath.
7 Storage / Operating Temperature: -20°C~+60°C.

Technical Parameter:

Item Technology parameter
Cable type GJYXCH-1B6 GJYXCH-2B6 GJYXCH-4B6
Cable specification 5.2×2.0
Fiber type 9/125 (G.657A2)
Fiber counts 1 2 4
Fiber color Red Blue, orange Blue, orange, green, brown
Sheath color Black
Sheath material LSZH
Cable dimension   mm 5.2(±0.2)*2.0(±0.2)
Cable weight   Kg/km Approx. 19.5
Min. bending radius mm 120
Min. bending radius mm(Excluding messenger wire) 10 (Static)25 (Dynamic)
Attenuation   dB/km ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile   N 600
Long term tensile   N 300
Short term crush N/100mm 2200
Long term crush N/100mm 1100
Operation temperature   ℃ -20~+60

Note: Only a part of FTTH Drop cables are listed in the table. Cables with other specifications can be inquired.
           Cables can be supplied with a range of single mode or multimode fibers.
           Specially designed Cable structure is available on request.

How to choose an economical and practical cable drum packaging to drop cable?

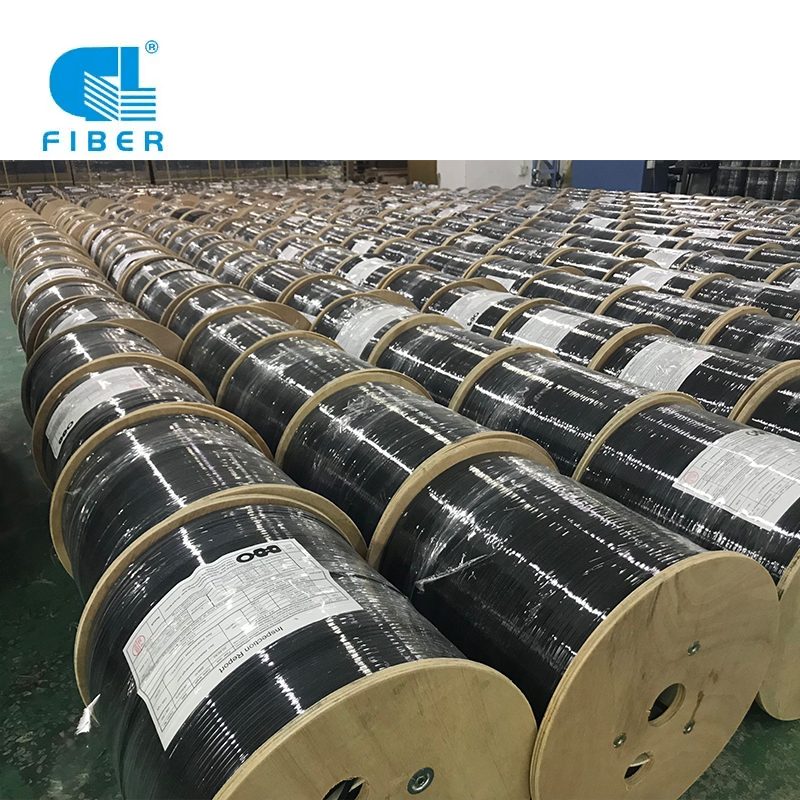

Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its' advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.

Meanwhile, we have 15 years mature logistic team, 100% meet your good safety and delivery time.

Package of FTTH Drop Cable
No Item Index
Outdoor Drop Cable Indoor Drop Cable Flat Drop Cable
1 Length and packaging 1000m/Plywood Reel 1000m/Plywood Reel 1000m/Plywood Reel
2 Plywood reel size 250×110×190mm 250×110×190mm 300×110×230mm
3 Carton size 260×260×210mm 260×260×210mm 360×360×240mm
4 Net weight 21 kg/km 8.0 kg/km 20 kg/km
Loading quantity suggestion
20'GP container 1KM/roll 600KM
2KM/roll 650KM
40'HQ container 1KM/roll 1100KM
2KM/roll 1300KM

*The above is just a suggestion for container loading, please consult our sales department for the specific quantity.
