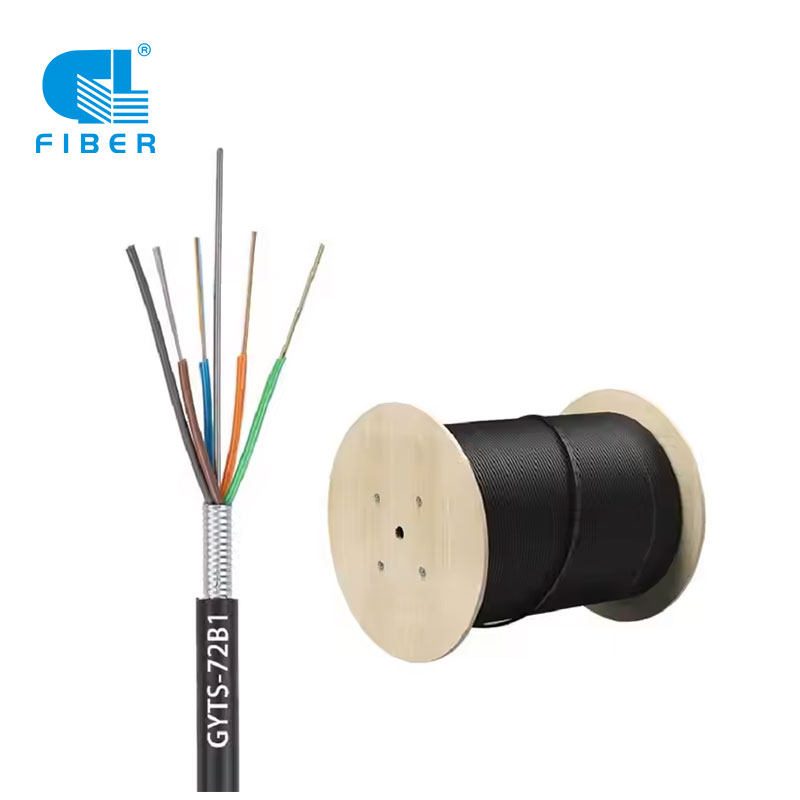

GYTS Standard Loose Tube Steel Tape Armored Cable

In the GYTS cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Product Name: Stranded Loose Tube Cable with Steel Tape(GYTS)

Fiber Count: 2-288 fibers

Fiber Type: Singlemode,G652D,G655,G657,OM2,OM3,OM4

Outer Sheath: PE,HDPE,LSZH,

Armored Material: Corrugated steel tape

Cable Diamter: 9.5-16.5

Application:
1. Adopted to Outdoor distribution.
2. Suitable for aerial .pipeline laying method.
3. Long distance and local area network communication.



Open Whats App
Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback

Structure Design

Application

  1. Adopted to Outdoor distribution.
  2. Suitable for aerial .pipeline laying method.
  3. Long distance and local area network communication.

Characteristic

  • Steel wire strength.filler protect tube fiber.steel tape armord.
  • Good ultra violet radiation resistant property.
  • Good moisture-resistance.



Write your message here and send it to us

OpticaL Charateristics

Fiber Type G.652 G.655 50/125^m 62.5/125^m
Attenuation(+20X)  850 nm     <3.0 dB/km <3.3 dB/km
1300 nm     <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm     >500 MHz-km >200 Mhz-km
1300 nm     >500 MHz-km >500 Mhz-km
Numerical Aperture      0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

Structure and Technical Specifications

Cable Count Out sheath
Diameter（MM)		 Weight
（KG/Km)		 Minimum allowable
Tensile Strength(N)		 minimum allowable
Crush Load（N/100mm)		 Minimum Bending
Radius(MM)		 Storage
temperature
（℃）
short term long term short term long term short term long term
24 10.5 105.00 1500 600 1000 300 20D 10D -40+60
36 10.5 105.00 1500 600 1000 300 20D 10D -40+60
42 10.5 105.00 1500 600 1000 300 20D 10D -40+60
48 10.5 105.00 1500 600 1000 300 20D 10D -40+60
60 10.5 105.00 1500 600 1000 300 20D 10D -40+60
72 13.5 208.00 1500 600 1000 300 20D 10D -40+60
96 13.5 208.00 1500 600 1000 300 20D 10D -40+60
144 15.5 295.00 1500 600 1000 300 20D 10D -40+60
Noted:

1，Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2，Cables can be supplied with a range of single mode or multimode fibers.

3，Specially designed Cable structure is available on request.

https://www.gl-fiber.com/products-outdoor-fiber-optic-cable/

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Remark:  The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.

outdoor fiber cable

outdoor cable

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
