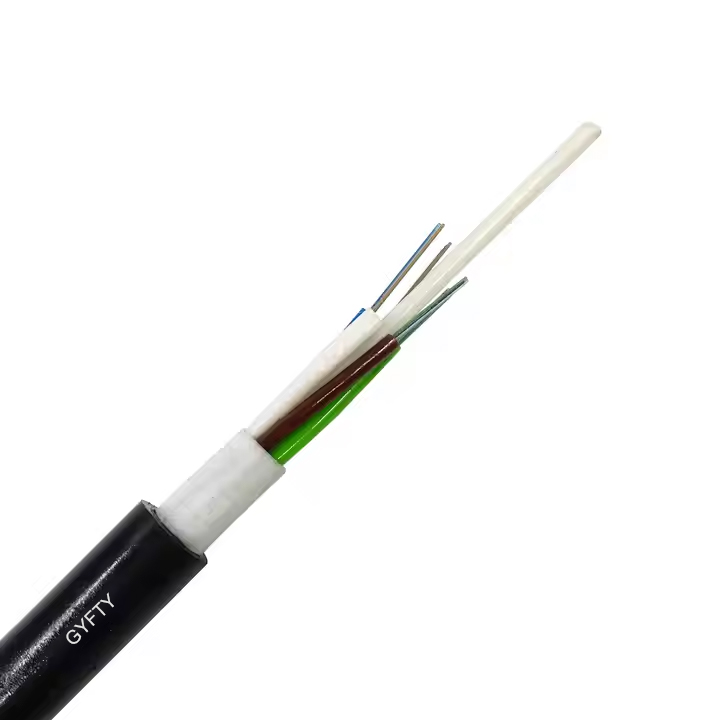

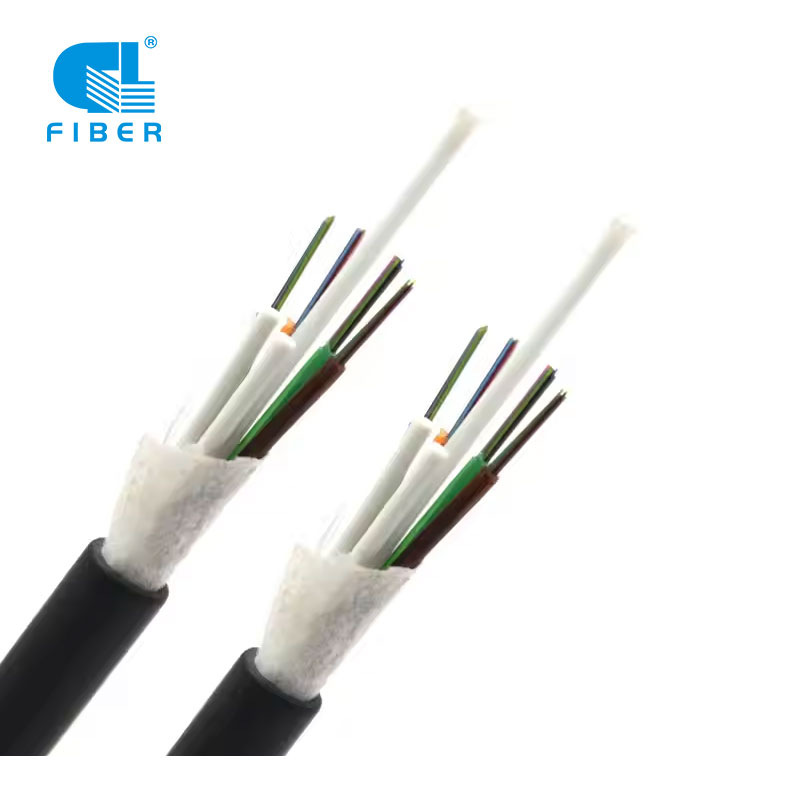

GYFTY Stranded Loose Tube Cable with Non-metallic Central Strength Member

In the GYFTY cable, single-mode/multimode fibres are positioned in the loose tubes, which are made of high modulus plastic materials, while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. For certain high fibre count cables, the strength member would be covered with polyethylene (PE). The water-blocking materials are distributed into the interstices of the cable core.Then the cable is completed with a PE sheath.

Product Name: GYFTY Stranded Loose Tube Cable

Fiber Type: G652D,G657A,OM1,OM2,OM3,OM4

Outer Sheath: PVC,LSZH.

Color: Black Or Customized

Application:

Adopted to Outdoor distribution. Adopted to trunk power transmission system. Access network and local network in high electromagnetic interfering places.

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Characteristics:

Excellent mechanical and temperature performance guaranteed by the accurate excess fibre length Critical protection to fibres, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube Excellent ultraviolet prevention with PE sheath Excellent crush resistance and flexibility The following measures are taken to ensure the water blocking performance of the cable:
- FRP used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling

Application: Duct/Aerial

Storing temperature:-40℃ to +70℃ Operating temperature:-40℃ to +70℃

Bending radius: Static 10×D Dynamic 20×D

Standards:

Comply with standard YD/T 769-2010

Product Construction:

Fiber: 2-288 fibers
Loose tube gel-filled
Central Strength Member: FRP (Fiber reinforce plastic)
Strength Member: Fiber glass yarns.
Outer Sheath: Black UV-and moisture-resistant polyethylene (PE).

Features:

Loose tube gel-filled construction for superior fiber protection. UV and moisture-resistant design.

Application:

Duct/Aerial

Write your message here and send it to us

Structure and Technical Specifications GYFTY

Fiber Count	NominalDiameter (mm)	NominalWeight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	NominalDiameter (mm)	NominalWeight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.2	85	6	6	1500	600	1000	300
38~72	11.1	100	12	6	1500	600	1000	300
74~96	12.6	130	12	8	1500	600	1000	300
98~120	14.1	162	12	10	1500	600	1000	300
122~144	15.9	204	12	12	1800	600	1000	300
146~216	15.9	205	12	18(2 layers)	2200	600	1000	300
>144	Available upon customer request

Structure and Technical Specifications GYFTY-G (Yarn)

Fiber Count	NominalDiameter (mm)	NominalWeight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	NominalDiameter (mm)	NominalWeight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.2	85	6	6	1500	600	1000	300
38~72	11.1	100	12	6	1500	600	1000	300
74~96	12.6	130	12	8	1500	600	1000	300
98~120	14.1	162	12	10	1500	600	1000	300
122~144	15.9	204	12	12	1800	600	1000	300
146~216	15.9	205	12	18(2 layers)	2200	600	1000	300
>144	Available upon customer request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Remark: The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
