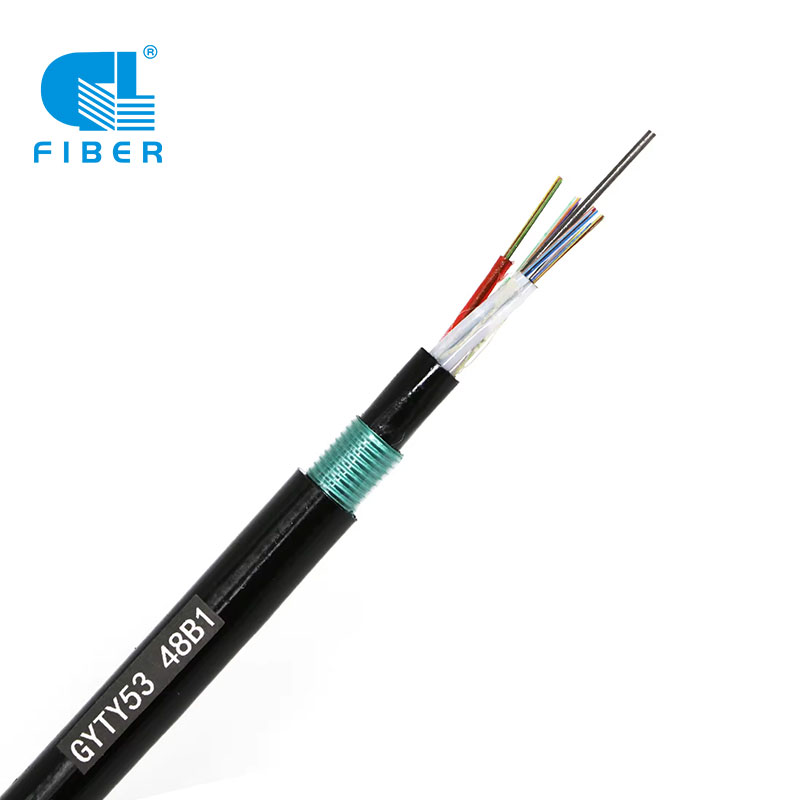

Single Armored Double Jackets Direct-buried Fiber Optic Cable GYTY53

In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

Product Name: Stranded Loose Tube Cable with Steel Tape (Double Sheaths GYTY53)

Brand Place of Origin: GL Hunan,China (Mainland)

Application:

1. Adopted to Outdoor distribution.
2. Suitable for aerial duct and buried method.
3. Long distance and local area network communication.

Starting custom your ideal size By E-mail: [email protected]

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Application

Aerial/Duct/Outdoor

Characteristic

1. The following measures are taken to ensure the water blocking performance of the cable.
2. Single steel wire used as the central strength Member.
3. Special water-blocking filling compound in the loose tube.
4. 100% cable core filling,APL and PSP moisture barrier.

Temperature Rage

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Standards

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Technical Parameters

Cable Count	Out sheath Diameter（MM)	Weight （KG/Km)	Minimum allowable Tensile Strength(N)		minimum allowable Crush Load（N/100mm)		Minimum Bending Radius(MM)		Storage temperature （℃）
Cable Count	Out sheath Diameter（MM)	Weight （KG/Km)	short term	long term	short term	long term	short term	long term	Storage temperature （℃）
24	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
36	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
42	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
48	13.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
60	13.0	185.00	3000	1000	3000	1000	20D	10D	-40+60
72	13.0	215.00	3000	1000	3000	1000	20D	10D	-40+60
96	14.5	215.00	3000	1000	3000	1000	20D	10D	-40+60
144	18.3	275.00	3000	1000	3000	1000	20D	10D	-40+60

Write your message here and send it to us

Application

Aerial/Duct/Outdoor

Characteristic

Temperature Rage

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃

Standards

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Technical Parameters

Cable Type (increased by 2fibers)	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term( N)	Crush ResistanceLong/Short Term (N/100mm)	Bending RadiusStatic/ Dynamic (mm)
GYTY53 2 ~36	2 ~36	6	12.6	184	1000/3000	1000/3000
GYTY53 38 ~ 72	38 ~ 72	12	14.0	216	1000/3000	1000/3000
GYTY53 74 ~ 96	74 ~ 96	12	15.7	260	1000/3000	1000/3000
GYTY53 98 ~ 120	98 ~ 120	12	17.4	301	1000/3000	1000/3000
GYTY53 122 ~ 144	122 ~ 144	12	19.0	354	1000/3000	1000/3000

Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Remark: The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
