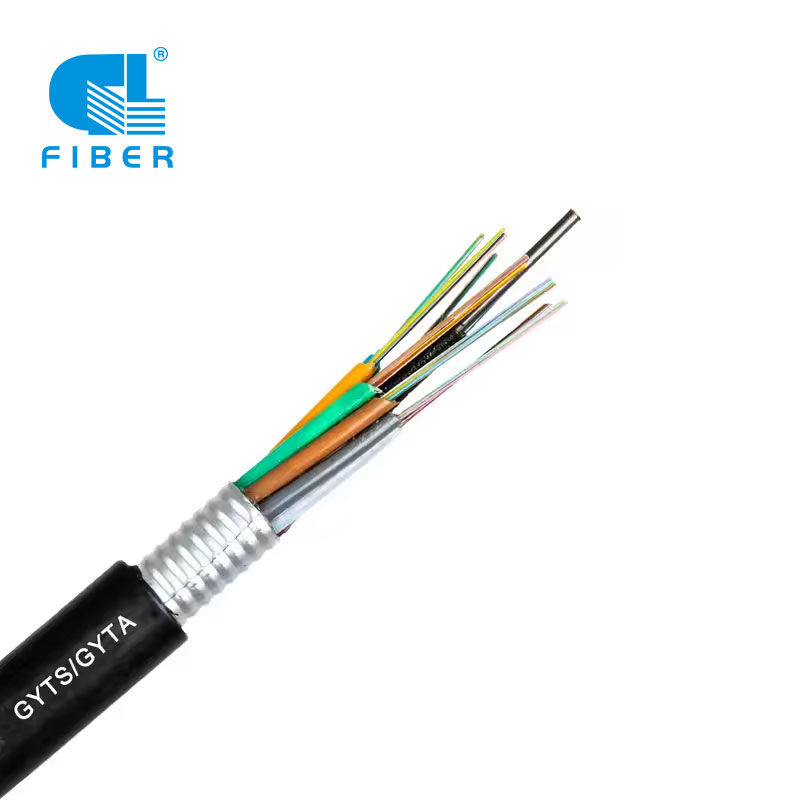

GYTA Stranded Loose Tube Cable with Aluminum

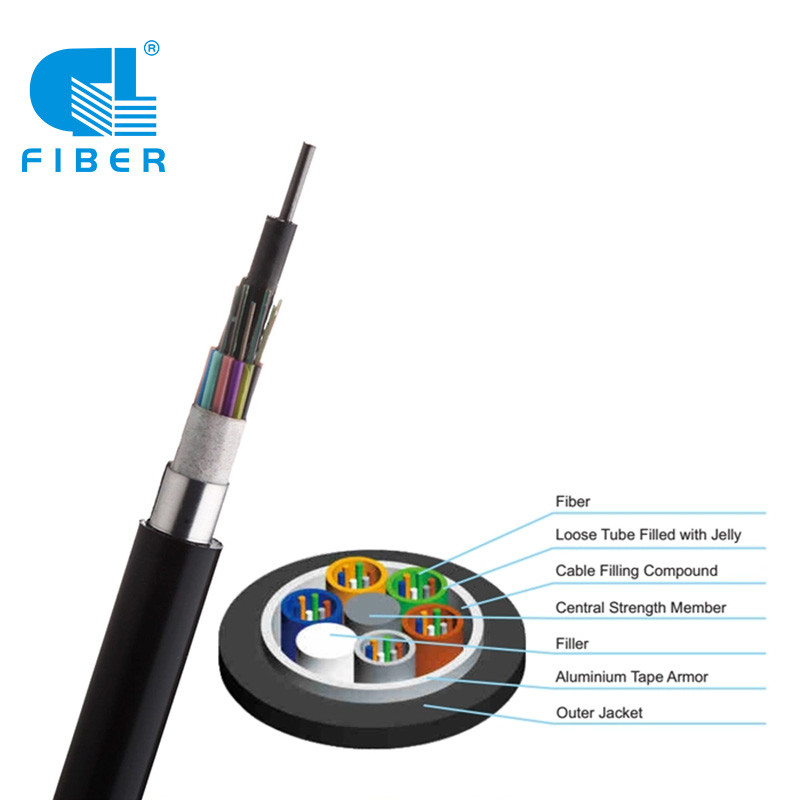

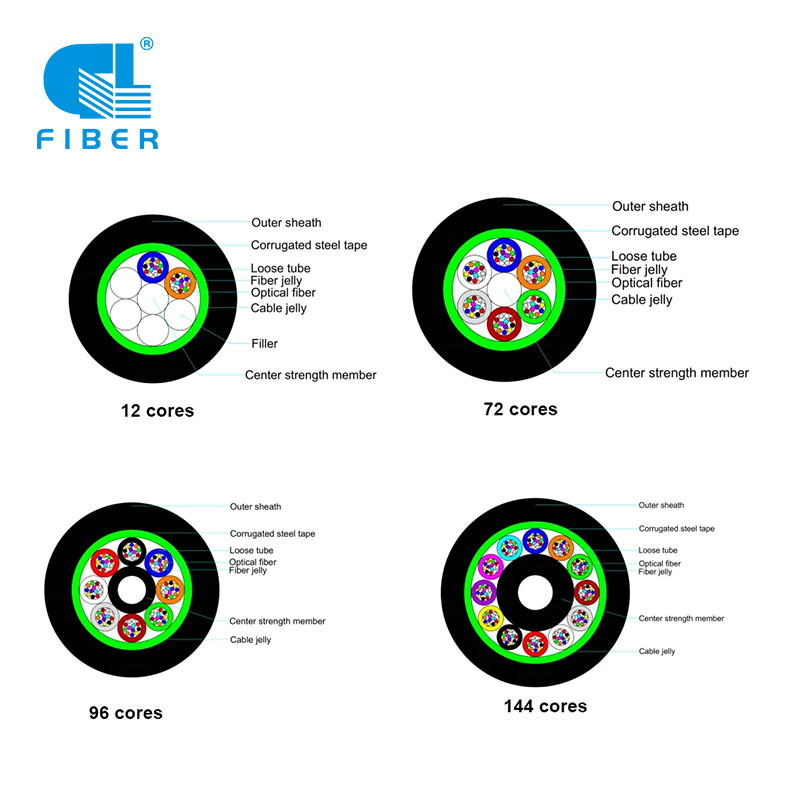

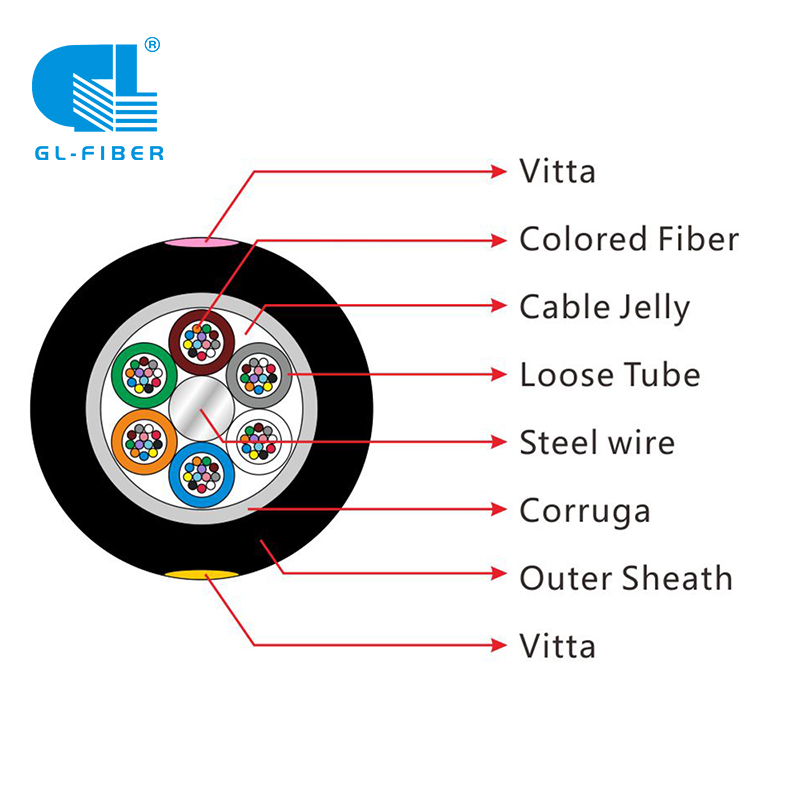

In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.


  • Product Name: Stranded Loose Tube Cable with Aluminum (GYTA)
  • Brand Place of Origin: GL Hunan,China (Mainland)
  • Application: Aerial/Duct/Outdoor
  • Categories: All Products, Aerial Optical Cable, Duct Optical Cable, Armored Optical Cable

    Description

    Specification

    Package & Tansportation

    Our Advantages

    Inquiry

    Application:

    Aerial/Duct/Outdoor

    Characteristic:

    1,The following measures are taken to ensure the water blocking performance of the cable.
    2,Single steel wire used as the central strength member.
    3,Special water-blocking filling compound in the loose tube.
    4,100% cable core filling.

    Temperature Rage:

    Operating :-40℃ to +70℃
    Storage :-40℃ to +70℃

    Standards:

    Comply with standard YD/T 901-2009 as well as IEC 60794-1
    Specification

    Technical Parameters:
      Cable Type             (increased by 2fibers) Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term(N) Crush Resistance Long/Short Term (N/100mm) Bending RadiusStatic/Dynamic (mm)
    GYTA 2 ~ 30 2 ~ 30 9.5 80 600/1500 300/1000 10D/20D
    GYTA 32 ~ 36 32 ~ 36 9.7 97 600/1500 300/1000 10D/20D
    GYTA 38 ~60 38 ~60 10.5 109 600/1500 300/1000 10D/20D
    GYTA 62 ~72 62 ~72 11.5 126 600/1500 300/1000 10D/20D
    GYTA 74 ~96 74 ~96 13.2 153 600/1500 300/1000 10D/20D
    GYTA 98 ~120 98 ~120 14.6 182 600/2000 300/1000 10D/20D
    GYTA 122 ~ 144 122 ~ 144 16.5 221 600/2500 300/1000 10D/20D
    GYTA 146 ~ 216 146 ~ 288 16.5 221 600/2500 300/1000 10D/20D
    Noted:

    1,Only a part of Aerial/Duct/Direct Buried/Underground/Armoured cables are listed in the table. Cables with other specifications can be inquired.
    2,Cables can be supplied with a range of single mode or multimode fibers.
    3,Specially designed Cable structure is available on request.
