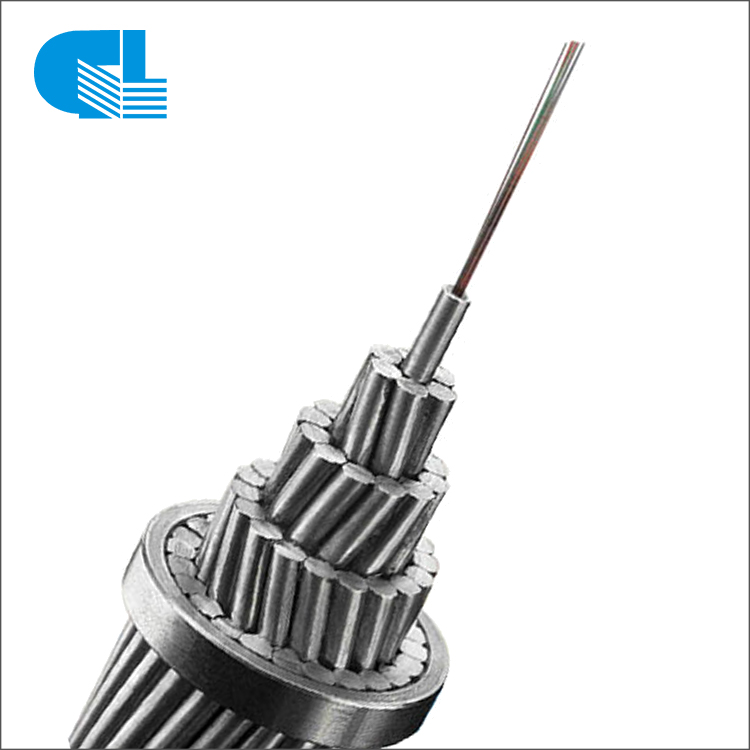

The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS
wires and aluminum alloy wires Aluminum wires / Aluminum alloy wires Optical fibers. Aluminum. OPPC cables
have the dual functions performance functions of phase
conductors with communication capabilities.

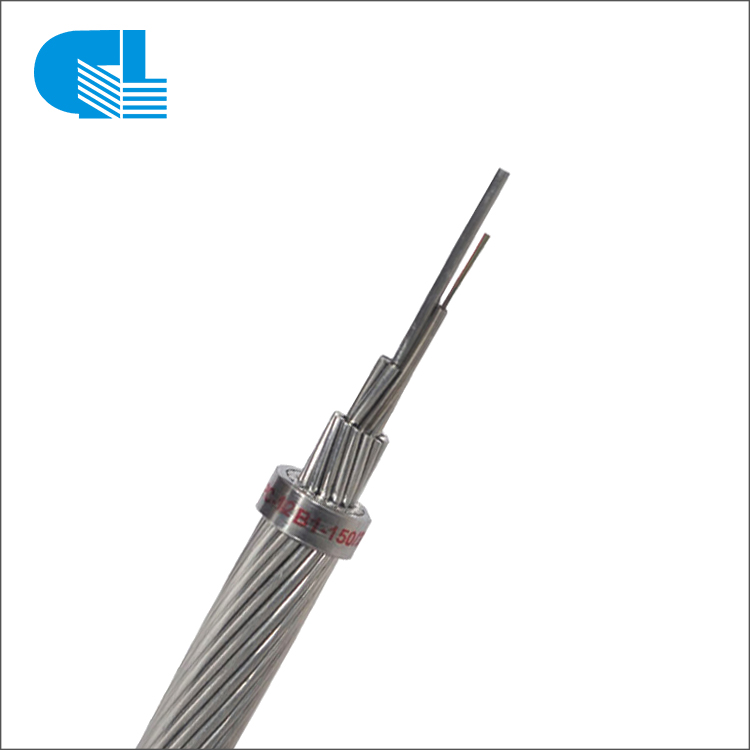

Product Name: Optical Phase Conductor（OPPC）
Brand Place of Origin: GL Hunan,China (Mainland)
Application: Aerial , Overhead , Outdoor
Aerial , Overhead , Outdoor
1，Replacing one or several wires of the traditional conductor with stainless steel tube and strand the tube with AS/steel wires and AL/AA wires.
2，Replacing one of the three phase conductors with OPPC, thus to form a transmission line which consists of one OPPC and two phase conductors.
3，OPPC can meet durative high temperature resistant which verified by Temperature Cycling test and Short Current test.
4，OPPC is applied to middle & high voltage power lines without ground wires such as 10kV, 35kV, 66kV and so on.
5，Telecommunications for middle & high voltage power lines in urban and rural areas; Providing optical cables for building distribution automation station.
Packed by Plywood and Carton.
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: Guanglian or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 7 years;
d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) |
1-300 |
≥300 |
| Est.Time(Days) |
15 |
To be begotiated! |
Package of FTTH Drop Cable |
||||
| No | Item | Index | ||
| Outdoor Drop Cable | Indoor Drop Cable | Flat Drop Cable | ||
| 1 | Length and packaging | 1000m/Plywood Reel | 1000m/Plywood Reel | 1000m/Plywood Reel |
| 2 | Plywood reel size | 250×110×190mm | 250×110×190mm | 300×110×230mm |
| 3 | Carton size | 260×260×210mm | 260×260×210mm | 360×360×240mm |
| 4 | Net weight | 21 kg/km | 8.0 kg/km | 20 kg/km |
| 5 | Gross weight | 23 kg/Box | 9.0 kg/Box | 21.5 kg/Box |
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.
GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
