288 Core Span 1000m All-dielectric Self-supporting ADSS Optical Cable

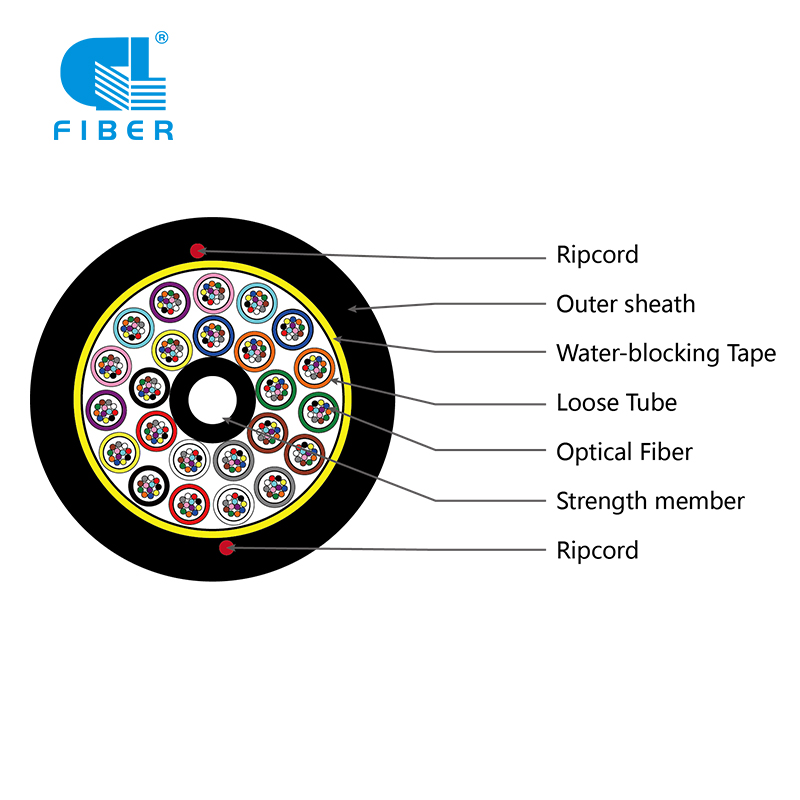

Structure Design:

Main Feature:

1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication；
2. Track -Resistant outer jacket available for the high voltage (≥35KV); HDPE outer jacket available for the high voltage (≤35KV)；
3. Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
4. Gel-Filled buffer tubes are S-Z stranded;
5. Can be installed without shutting off the power.
6. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
7. Good performance of tensile strength and temperature.
8. The design life span is over 30 years.

Standards:

GL Technology’s ADSS Fiber Optical Cable complies with IEC 60794-4, IEC 60793, TIA/EIA 598 A standards.

Advantages of GL ADSS Optical Fiber Cable:

1.Good aramid yarn have excellent tensile performance;
2.Fast delivery, 200km ADSS cable regular production time about 10 days;
3.Can using glass yarn instead of aramid to anti rodent.

Colors -12 Chromatography：

Fiber Optic Characteristics:

Typical Technical Parameter of ADSS Cable:

1. ADSS single jacket

Tips: all the specifications in the abolve table is approximate data, for more detals specifications, pls contact our salers via email: [email protected]

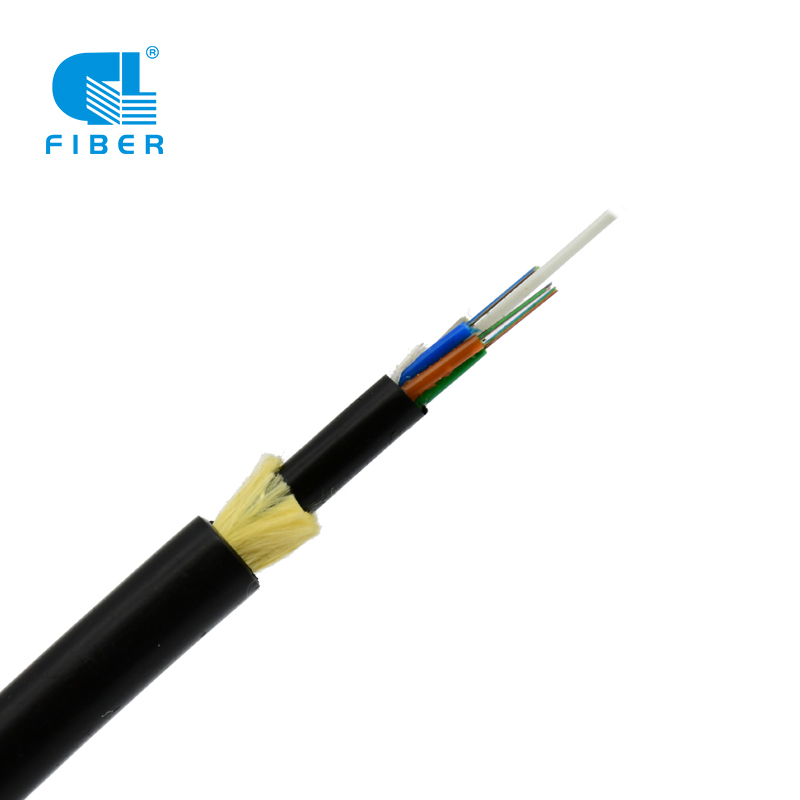

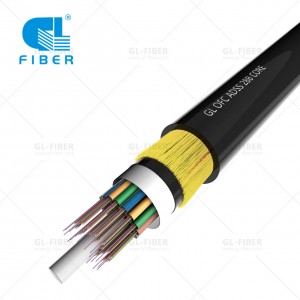

2. ADSS double jacket

Tips: all the specifications in the abolve table is approximate data, for more detals specifications, pls contact our salers via email: [email protected]

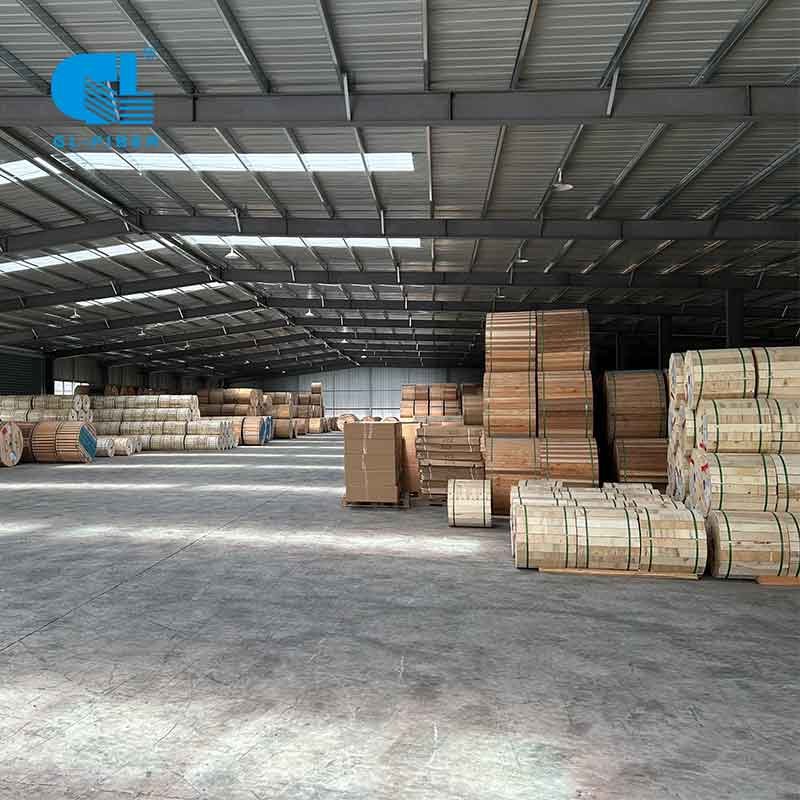

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

	Length&Packing	2KM	3KM	4KM	5KM
	Packing	wooden drum	wooden drum	wooden drum	wooden drum
	Size	900*750*900MM	1000*680*1000MM	1090*750*1090MM	1290*720*1290
	Net weight	156KG	240KG	300KG	400KG
	Gross weight	220KG	280KG	368KG	480KG

Remarks：The reference cable diameter 10.0MM and the span 100M. For specific specifications, please ask the sales department.

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight
