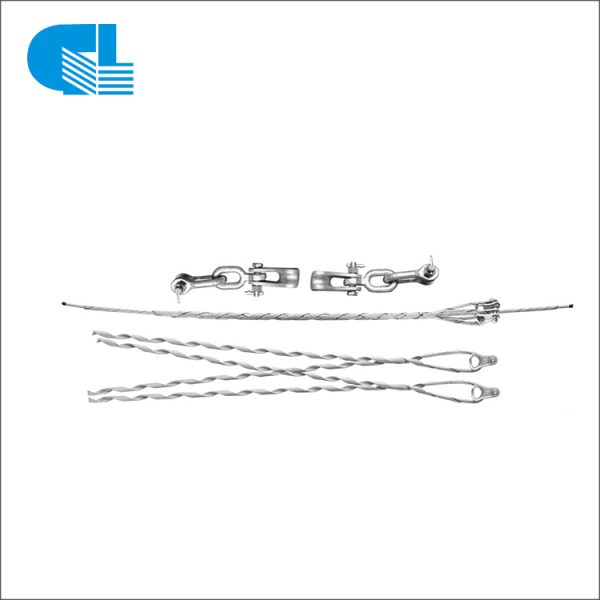

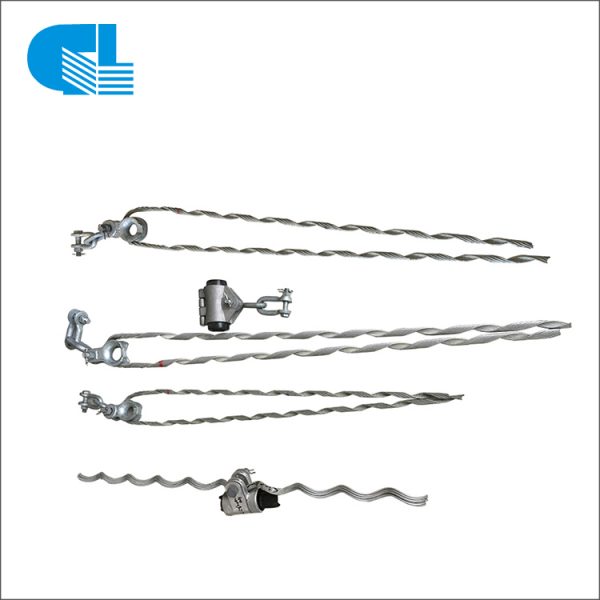

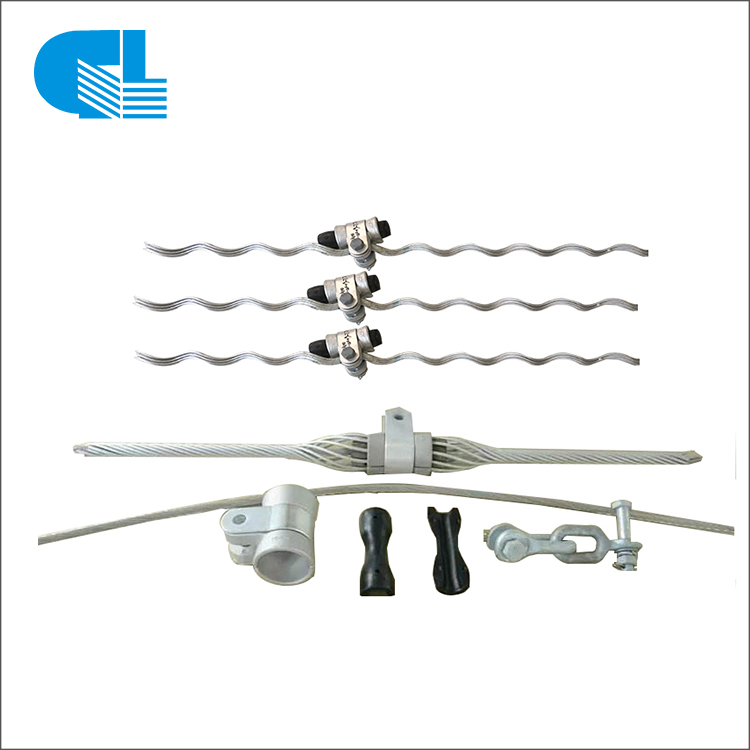

ADSS Optical Cable Tension Clamps Dead-end Fittings

ADSS Tension Clamps are designed to connect ADSS cables and poles/towers . Armor rods can provide protection and cushioning to the ADSS cables. The special design of Preformed rods makes ensure that Tension Clamps can’t cause undue stress to the ADSS cables, so as to ensure the normal lifetime of cables system.

  • Product Name: ADSS Optical Cable Tension Clamps/Dead-end Fittings
  • Brand Place of Origin: GL Hunan,China (Mainland)
  • Provide OEM/ODM Services !:
  • Categories: All Products, Hardware Fittings
  • Tags: ADSS Hardware Fitting, Dead-end Fitting, Hardware Fitting, OPGW Hardware Fitting, Tension Assembly, Tension Clamp
  • Description
    Specification
    Package & Shipping
    Factory Show
    Leave Your Feedback
    Structure and Materials:

    This product is a combination of clamp, with a suspension head (each head by a rubber clamp suspension, aluminum plates, U-card, bolt, spring cushion, flat pad, nut, pin closed form), outer preformed wire, retaining Preformed wire line combination.
    Directly preformed armour rods wrapped around the cable surface, providing protection for the cable and stiffness, protecting the line wire is preformed rubber grip clamp inserts, outer middle preformed wire cutter type of rubber from the press and hold the drum clamp, aluminum Maintain its external splint.
    U-card:Made of high strength aluminum alloy.
    Aluminum splint:Made of corrosion-resistant aluminum die casting, the aluminum chemical stability, good resistance to atmospheric corrosion and has good mechanical properties.
    Rubber clamp:Be made of quality rubber and center strength member ,has anti-ozone resistance, chemical resistance, weather aging, with high and low temperature performance, and high strength and elasticity, the smaller deformation.
    Bolt,Elastic pad,Flat pad,Nut:Hot galvanized Standard Parts
    Closed bolt:Power standard parts
    Preformed armour rods:Aluminum alloy wire, high tensile strength, hardness and good flexibility and strong anti-rust capability, in bad weather conditions long-term use.
    Preformed outer rods:Same with preformed armour rods.
    link fitting:Shackle,U-bolt,UB-clevis,ZH-hanging ring are all power standard parts.

    Instruction:

    1,In the tower, a tower, with a terminal Angle (elevation) is greater than 25 ° tower and tower of the connection.The specific configuration is: terminal tower — –1 set/tower;Tension tower — –2 sets/tower;Connecting tower — –2 sets/tower.
    2,According to cable diameter, cable maximum allowable use tension (MAT) or gear with tension cable clip, the user can choose according to the selection of the specification table suitable tension cable clip.

    Notes:
    Only a part of Joint Box/Splice Closure/Joint Closure are listed here. We can depend on customer’s requirement to producing the different model Joint Box/Splice Closure/Joint Closure.
    We supply OEM&ODM Service.
