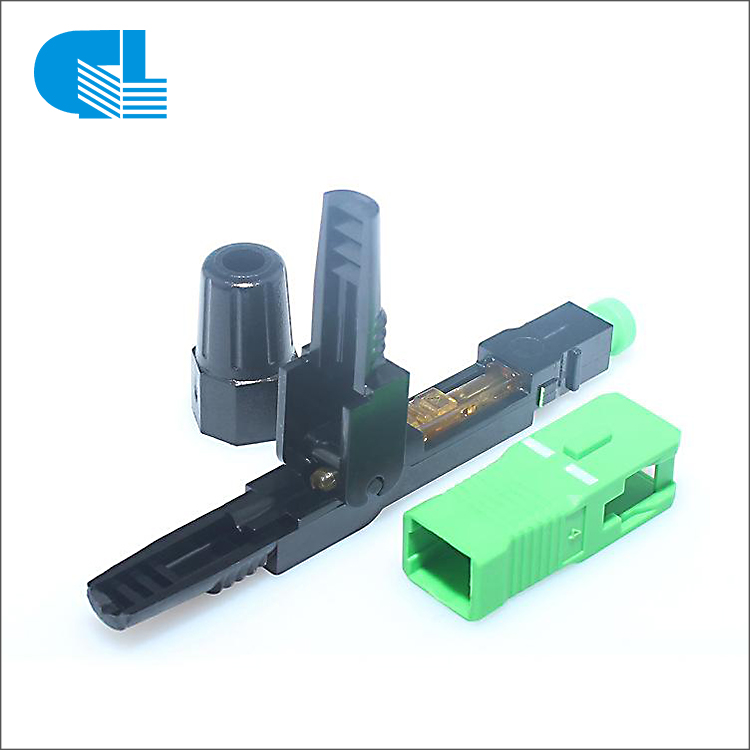

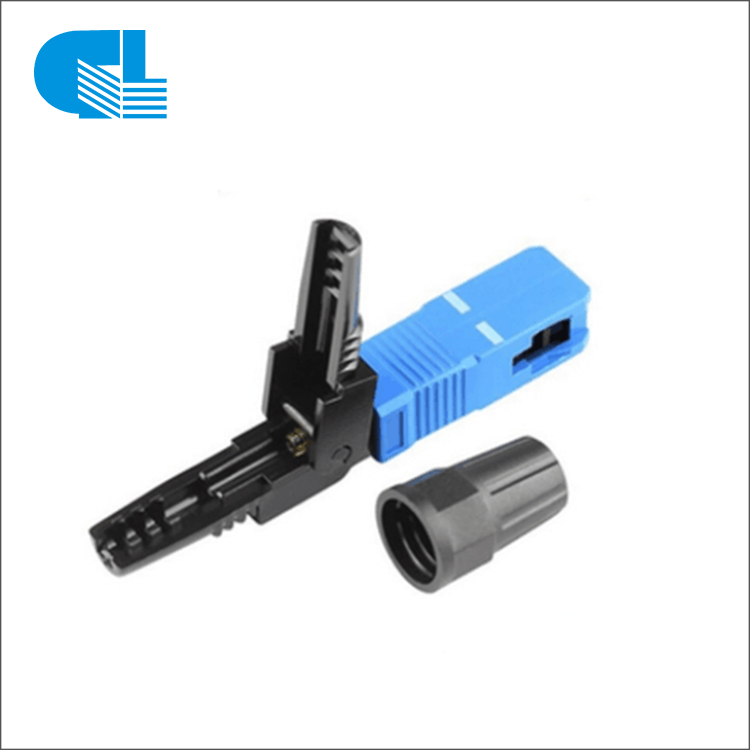

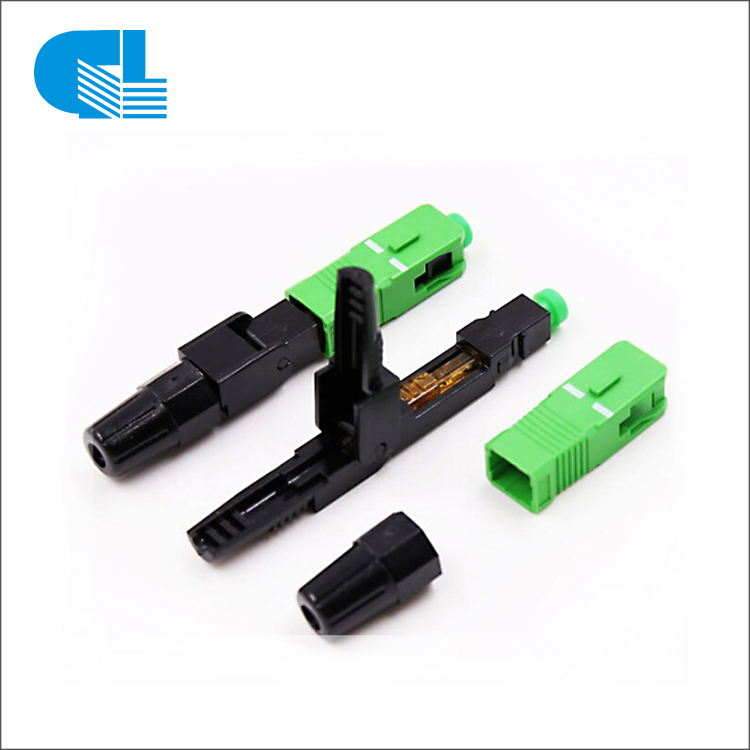

SC APC UPC Fiber Optic Fast Connector

The SC APC UPC Connector (fast connector ), was developed to be used with flat cable Drop cords 3mm or optical 2 to 3mm.

Foclink fast connectors make fiber terminations quick, easy and reliable.

These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.

Our fast connector can greatly reduce the assembly and set up time.

The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.

Product Name:Adapter

Brand Place of Origin: GL Hunan,China (Mainland)

Provide OEM/ODM Services !

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Applications:

CATV & FTTH、Telecommunication networks、Local area networks (LAN)、Wide area networks (WAN)、Premise installations、Data processing networks、Video and military active device termination、Optical Distribution Frame、Optical Network Equipments

Easy installation, Requires no Special Tools, Except those of daily use for the preparation of Optical Fiber (Fiber cable Cutting, peeling, Cutting, cleaning and climpadora Components).

Features:

1， Low insertion loss

2， Ease of installation

3， Low cost & Reliability

4， Ease of use

5， Low environmental sensitivity

6， High return loss (low amounts of reflection at the interface)

Notes:

Only a part of Adapters are listed here. We can depend on customer’s requirement to producing the different model Adapters.

We supply OEM&ODM Service. Contact Us Now !

E-Mail: [email protected]

WhatsApp:+86 18073118925 Skype: opticfiber.tim

Write your message here and send it to us

Specification

Specifications:

Item	Value
Application for	Drop flat cable /indoor cable
Optical fiber diameter	12um
Tight buffer diameter	250um
Fiber mode	Single mode
Operation time	About 60s
Insert loss	≤0.5dB(1310nm &1550nm) ≤0.3dB(1310nm& 1550nm)
Return loss	≤40dB
Fastening strength of naked fiber	>5N
Fastening strength of naked fiber holder	>10N
Tension strength	>50N
Using temperature	－40℃-75℃
One line tensile strength (20N)	ΔIL≤0.5dB ΔRL ≤0.5dB
Mechanical durability(500times)	ΔIL≤0.5dB ΔRL ≤0.5dB
Drop -off test (drop off height 4m,once per direction,totally 3times)	ΔIL≤0.5dB ΔRL ≤0.5dB

Notes:

We can depend on customer’s requirement to producing the different model Fast Connector.

Packing:10pcs /card slot 50pcs slots in a carton.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
