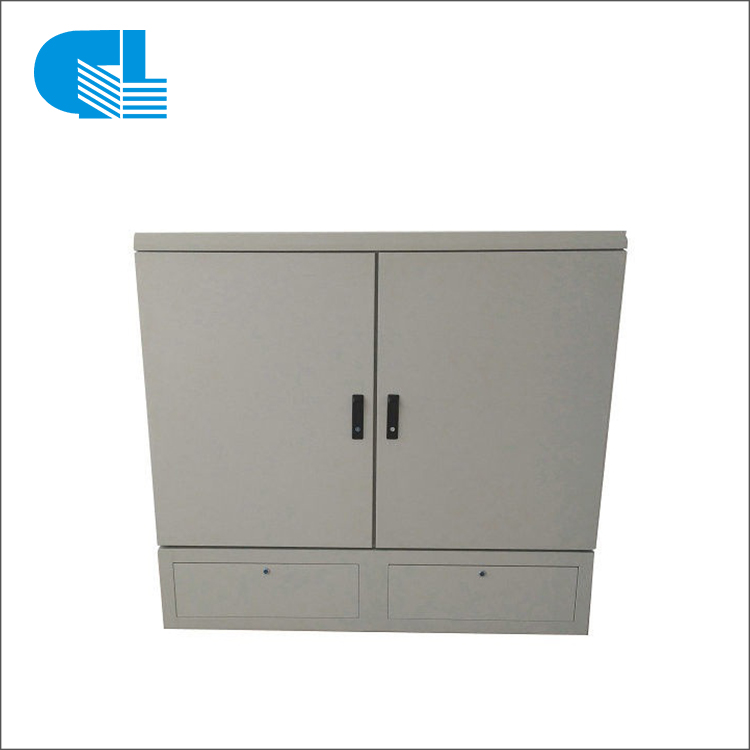

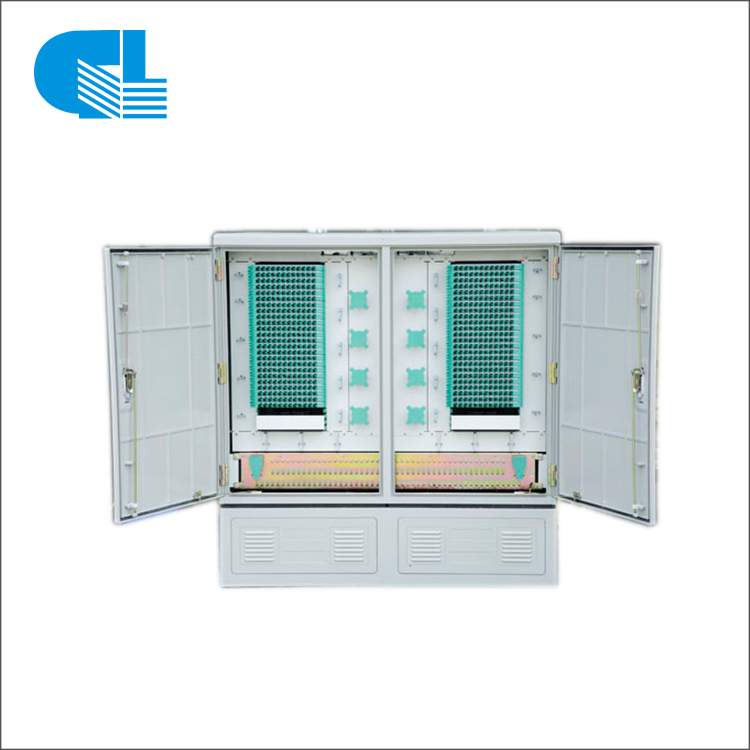

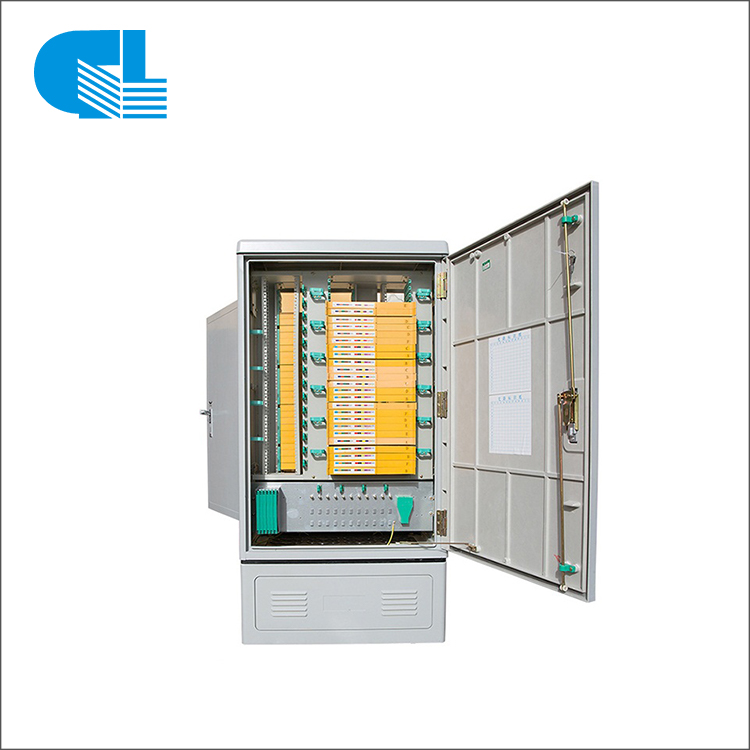

576 core Optical Cable Cross Connecting Cabinet

Communication Optical Cable Cross Connecting Cabinet is the interface equipment suitable for the exchanging between trunk optical cable and optical distribution cable. It is integrating heat sealing, roll storage and distribution of the fiber. It can be mounted both floor and aerial modes.

Door Type:

Single-sided front door；

Single-sided left and right front door.

Product Name:Cabinet

Brand Place of Origin: GL Hunan,China (Mainland)

Provide OEM/ODM Services !

Open Whats App
Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback
Application:

1，Fiber to The Point (FTTX)；

2，Fiber to The Home (FTTH)；

3，Fiber to The Building(FTTB)；

4，Passive Optical Networks (PON)；

5，Cable Television (CATV)；

6，Network Equipment Room.

 Features：

1，It is designed and manufactured according to the latest revised edition of YD/T 998 trade criterion.

2，Cabinet body adopts two kinds of materials including Sheet Molding Compound (SMC) and stainless steel.

3，Heat insulation device can be installed inside stainless steel box body according to users’ requirements to withstand the effect of climate and environment.

4，Apply optical fiber splice tray of double-sided structure to make full use of the two sides of the board, and integrate heat sealing and wiring into one unity. Each board can be fixed with twelve FC/SC/ST type adapters.

5，Install adaptor on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent from being damaged by laser light.

6，It is applied to common optical cables and ribbon-shaped optical cables, with large wiring space. All optical cables and optical fibers can be effectively protected inside the distribution frame.

7，Cabinet door lock has good protection function against breaking and is flexible and reliable to unlock and lock up. The opening angle of box door is more than 120 degrees. The box is well sealed.

8，Users can choose suitable base and platform for fixing electric pole.

Thunder-proof technical Datasheet:

1，The grounding device is isolated with the cabinet, isolation resistance is no less than 2*104MΩ/500V(DC) (IR ≥ 2*104MΩ/500V).

2，The withstand voltage between grounding device and cabinet is no less than 3000 V(DC)/min (U ≥ 3000 V(DC)/min), no puncture, no flashover.

3，Sealability is meets the IP65 level requirements in GB/T4208.

4，Life Span ≥ 20 years.

Notes:

Only a part of Cabinets are listed here. We can depend on customer’s requirement to producing the different model Cabinets.

We supply OEM&ODM Service.    Contact Us Now !

E-Mail: [email protected]

WhatsApp:+86 18073118925             Skype: opticfiber.tim

Write your message here and send it to us

Specification

Parameters:
Items Specifications
Material SMC
Capacity 576Core
Exterior Dimension (H*W*D ,mm) Cabinet:1200*1450*360Pedestal : 350*1450*360
Interior Dimension (H*W*D ,mm) 1145*1420*320
Door type Single-sided front doorSingle-sided left and right front door
Installation Floor standing/Wall Mounting
Optional Accessories Splice tray , Pigtail , Splitter , Adapter etc.
Nominal work wave-length 850nm,1310nm,1550nm
Operating temperature -5 to 40℃(Indoor )-40to 60℃(outdoor)
Storage temperature -40°C~+70°C
Relative humidity ≤ 95% (+40℃)
Atmospheric pressure 70 KPa ～ 106 Kpa
Insertion loss ≤0.2dB
Return loss ≥45dB(PC),≥50dB(UPC),≥60dB(APC)
Isolation resistance ≥1000MΩ/500V(DC)
Durability >1000times
Anti-voltage strength ≥3000V(DC)/1min



Product Fiber Distribution Cross Connection Cabinet
Material Stainless Steel /SMC
Fiber Cores 96-1152 cores
Application FTTH FTTX FTTB Network
Color Gray
Installation Wall /Floor Mounting
Connector Type SC FC LC
Notes:

We can depend on customer’s requirement to producing the different model Cabinets.

We supply OEM&ODM service.
