Glass Yarn GYFTY Anti Rodent Outdoor Aerial Duct Non-Armored Fiber Optic Cable

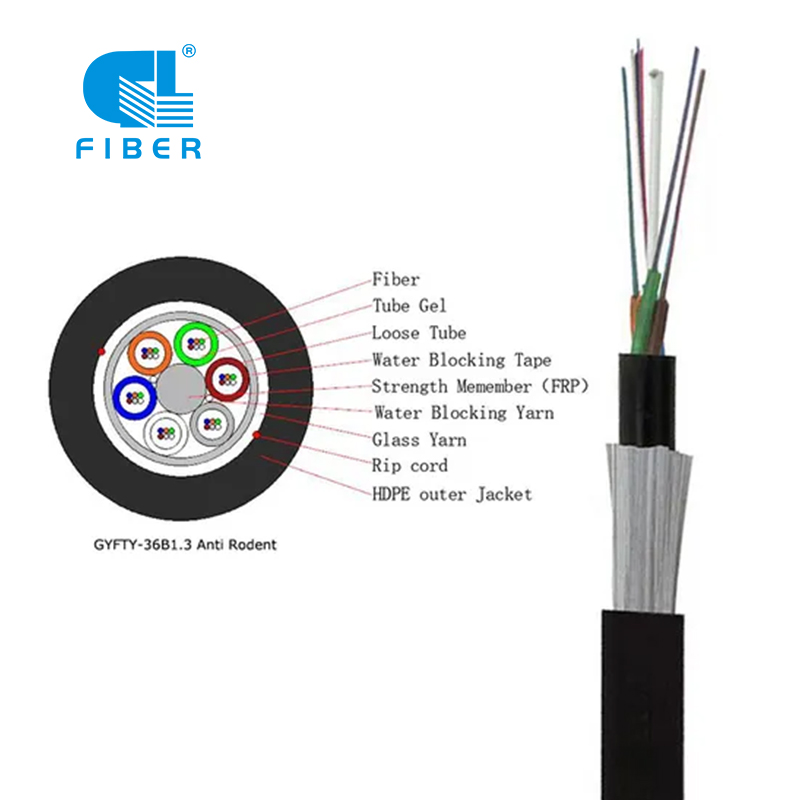

The fibers are positioned in a loose tube made of PBT filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member (FRP) to form the cable core. Water blocking yarn and tape as water blocking compound around the cable core, then the glass yarn armored longitudinally outside. Finally a PE jacket is extruded.

Fiber Counts: 2-288 Cores
Fiber Type: Single-mode fiber G652D
CSM(Central Strength Member): FRP
Anti Rodent Material: Glass Yarn
Buffer: Loose Tube PBT
Waterproof: Water Blocking Yarn & Tape
Sheath: MDPE/HDPE
Span customized: 80/100/120/150/200/300/400m etc.
Drum Length: 2km/3km/4km

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

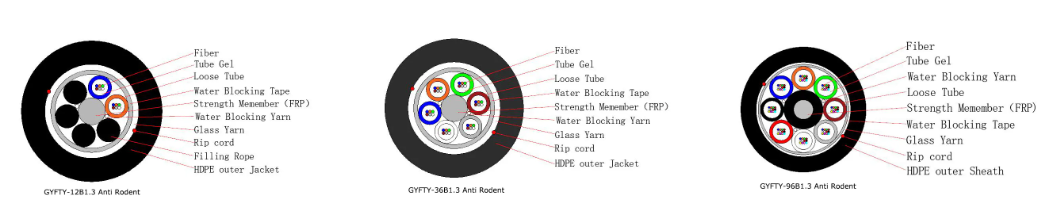

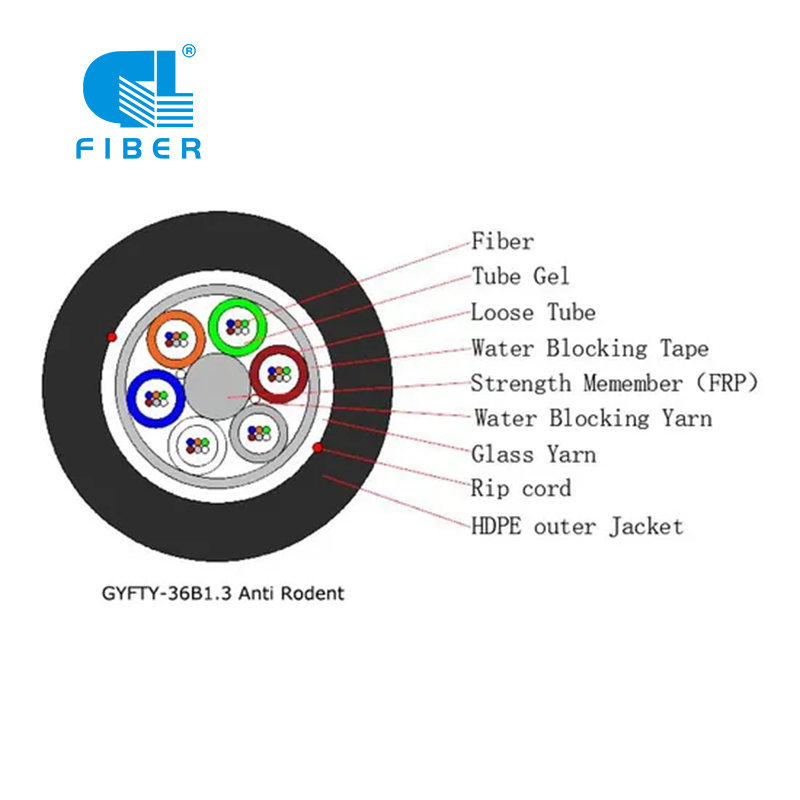

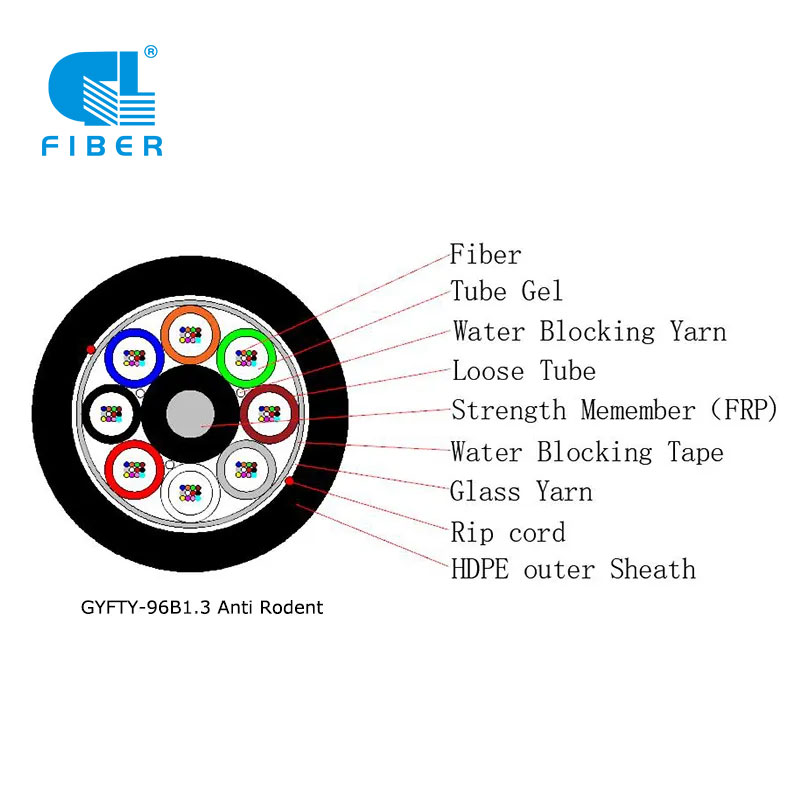

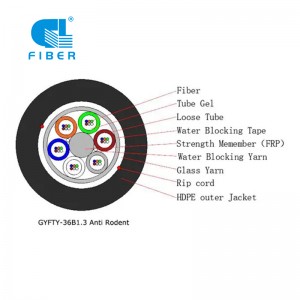

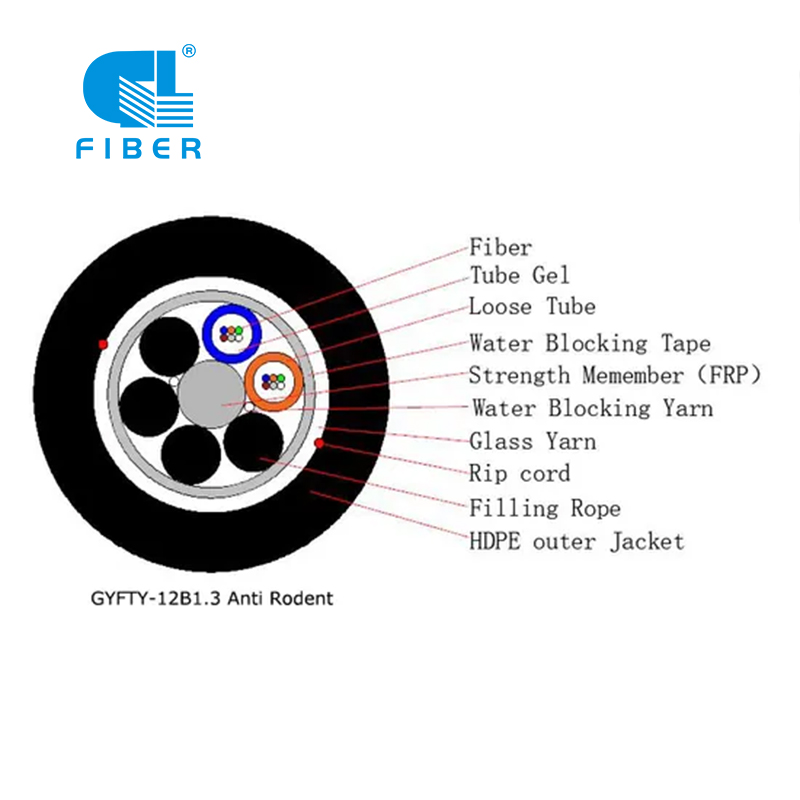

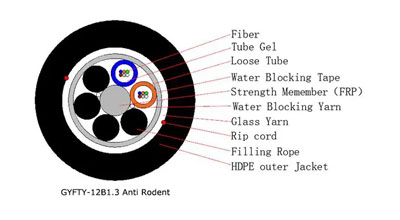

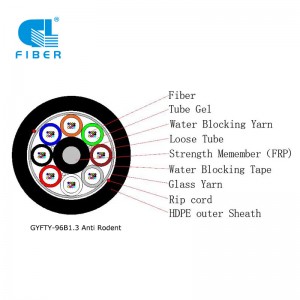

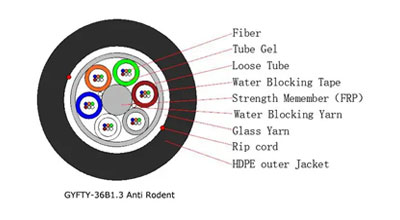

Structure Design:

Main Features:

• Good mechanical and thermal performance
• Tube gel ensures critical protection of fiber
• Stranded structure eliminating contraction of tubes
• Rugged, durable PE jacket protection against UV radiation, fungus etc.
• Crush resistance and light weight with flexibility
• Non-metallic, Anti-electromagetic interference
• Water-blocking measures :
- Loose tube gel-filled
- Water blocking yarn and water blocking tape
• Anti Rodent: glass yarn

Cable Technical Parameter:

Item	Value
Fiber Counts	12	36	96
Tubes	2	6	8
Tube Material	PBT
Fiber Count/ Tube	6	6	12
Fiber Identification	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	2.0±0.1 mm	2.0±0.1 mm	2.3±0.1 mm
Thickness of Tube	0.30±0.05 mm	0.30±0.05 mm	0.35±0.05 mm
Color of Tube	Blue Orange	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black
FRP	2.2 mm	2.2 mm	2.5 mm
PE Coated	-	-	3.8 mm
Water Blocking Material	Water Blocking Yarn and Water Blocking Tape
Ripcord	Polyester * 2-Red
Peripheral Strength Member	Glass Yarn
Thickness of Sheath	Nominal 1.8 mm
Sheath Material	HDPE
OD of Cable	10.5±0.3 mm	10.5±0.3 mm	12.7±0.3 mm
Cable Weight	85 kg/km	82 kg/km	112kg/km

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , GL also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).

Quality Control - Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].

Write your message here and send it to us

Structure Design:

Main Features:

Cable Technical Parameter:

Item	Value
Fiber Counts	12	36	96
Tubes	2	6	8
Tube Material	PBT
Fiber Count/ Tube	6	6	12
Fiber Identification	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	2.0±0.1 mm	2.0±0.1 mm	2.3±0.1 mm
Thickness of Tube	0.30±0.05 mm	0.30±0.05 mm	0.35±0.05 mm
Color of Tube	Blue Orange	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black
FRP	2.2 mm	2.2 mm	2.5 mm
PE Coated	-	-	3.8 mm
Water Blocking Material	Water Blocking Yarn and Water Blocking Tape
Ripcord	Polyester * 2-Red
Peripheral Strength Member	Glass Yarn
Thickness of Sheath	Nominal 1.8 mm
Sheath Material	HDPE
OD of Cable	10.5±0.3 mm	10.5±0.3 mm	12.7±0.3 mm
Cable Weight	85 kg/km	82 kg/km	112kg/km

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

Quality Control – Test Equipment and Standard:

Packaging Details：

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
