GYTC8A53 Double Jackets & Double Armored Figure 8 Fiber Optic Cable

Self-Supporting DADJ Aerial Fig 8 GYTC8S53 Outdoor Fiber Optic Cable

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

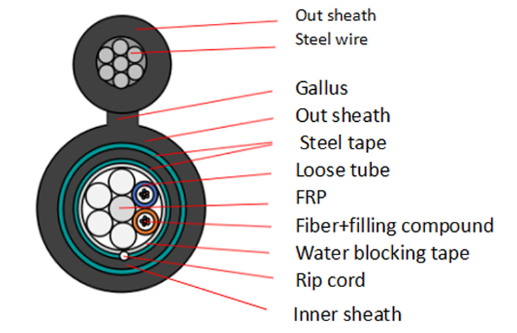

Structure Design:

Characteristics:

Loose tube gel-filled construction for superior fiber protection.
Double jacket and double armor to protect cable from rodent attack and mechanical damage.
UV and moisture-resistant design.
Self-supporting Figure 8 design.

Application:

Fig 8 self-supporting Aerial cable is suitable for long distance transmission and local network commucationtion.

Technical Parameters:

Fiber Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	850 nm			≤3.0 dB/km	≤3.3 dB/km
	1300 nm			≤1.0 dB/km	≤1.0 dB/km
	1310 nm	≤0.36 dB/km	≤0.40 dB/km
	1550 nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth	850 nm			≥500 MHz·km	≥200 Mhz·km
	1300 nm			≥500 MHz·km	≥500 Mhz·km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength λcc		≤1260 nm	≤1450 nm

Structure and Technical Specifications (7×1.0mm-Steel Stranded Wire)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load(N)		Allowable Crush Resistance(N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
4~36	12x19.2	230	12	6	4000	2000	3000	1000
38~72	14x19.2	260	12	6	4000	2000	3000	1000
74~96	14x19.2	310	12	6	4000	2000	3000	1000
