GYXTPY Fiber Optic Cable with Metallic Strength Member

The fibers, 200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Product Model: GYXTPY
Fiber Type: G652D, G657A1, G657A2
Fiber Core: 1-12 Core

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

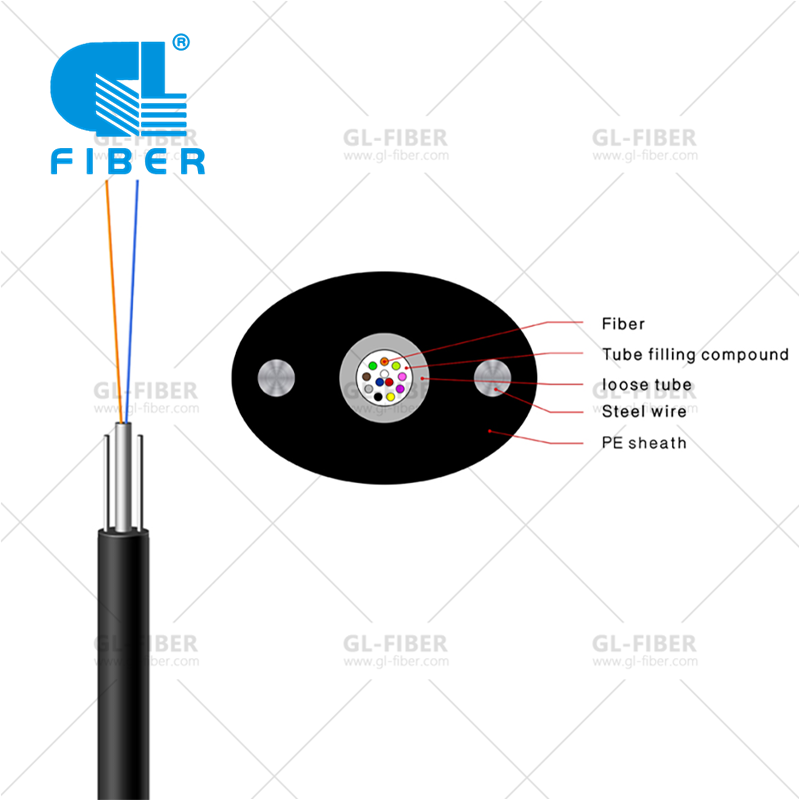

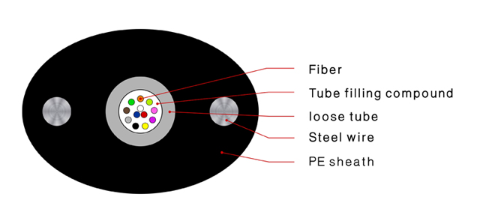

Cable Structure:

Main Features :

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·Inexpensive and can reduce operating costs
·Two parallel steel wires ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length

Product Standard:

· YD / T769-2010, GB / T 9771-2008, IEC794 and other standards
· In addition to ordinary PE products, if LSZH products choose different materials, can meet IEC 60332-1 or IEC 60332-3C certification

Optical Characteristics:

G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.00 dB/km	≤0.00dB/km
	@1550nm	≤0.00 dB/km	≤0.00dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

GYXTPY Cable Parameter:

Fiber Count	Cable Diametermm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
1-2 core	4*5.0	34	250/500	300/1000	15D/30D
3-6 core	4.2*5.2	38	250/500	300/1000	15D/30D
7-12 Core	4.5*5.5	43	250/500		15D/30D

Environmental Performance:

Transport temperature	－40℃～＋70℃
Storage temperature	－40℃～＋70℃

Write your message here and send it to us

Optical Characteristics:

G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.00 dB/km	≤0.00dB/km
	@1550nm	≤0.00 dB/km	≤0.00dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

GYXTPY Cable Parameter:

Fiber Count	Cable Diametermm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
1-2 core	4*5.0	34	250/500	300/1000	15D/30D
3-6 core	4.2*5.2	38	250/500	300/1000	15D/30D
7-12 Core	4.5*5.5	43	250/500		15D/30D

Environmental Performance:

Transport temperature	－40℃～＋70℃
Storage temperature	－40℃～＋70℃

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Port:
Shanghai/Guangzhou/Shenzhen

Lead Time:

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Package of FTTH Drop Cable
No	Item	Index
No	Item	Outdoor Drop Cable	Indoor Drop Cable	Flat Drop Cable
1	Length and packaging	1000m/Plywood Reel	1000m/Plywood Reel	1000m/Plywood Reel
2	Plywood reel size	250×110×190mm	250×110×190mm	300×110×230mm
3	Carton size	260×260×210mm	260×260×210mm	360×360×240mm
4	Net weight	21 kg/km	8.0 kg/km	20 kg/km
5	Gross weight	23 kg/Box	9.0 kg/Box	21.5 kg/Box
