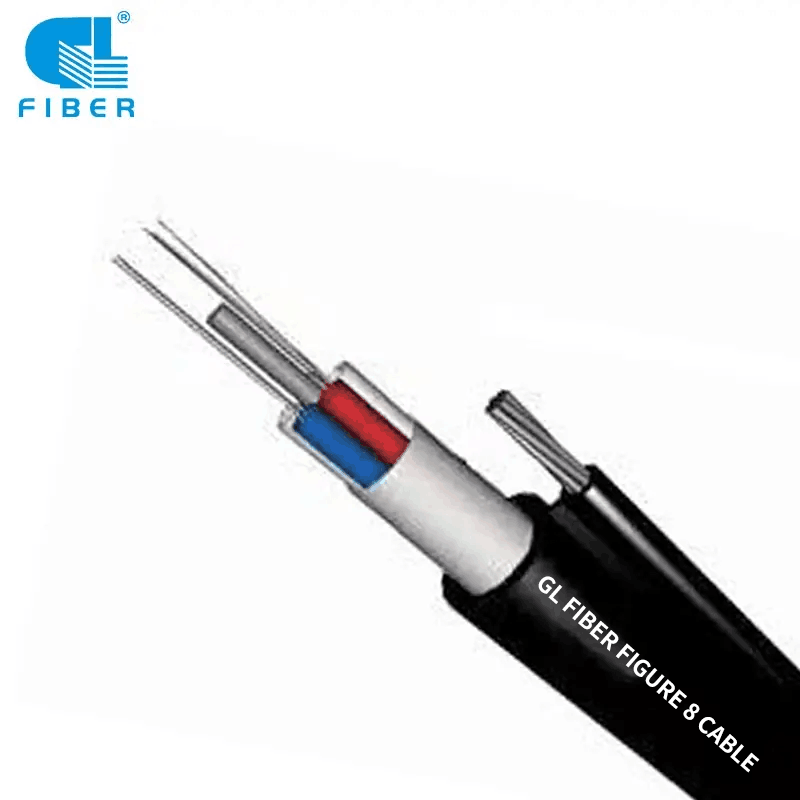

GYFTC8Y Aerial Fig8 Non-Armored Optical Fiber Cable

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer Sheath.

Products Construction:

  • Fiber: 2-288 fibers
  • Multi loose tube gel-filled Central Strength Member: FRP (Fiber reinforce plastic)
  • Water Blocking Material: Water blocking Tape/Yarn
  • Central Strength Member: FRP (Fiber reinforce plastic)
  • Outer Sheath: Black UV and moisture-resistant polyethylene (PE).
  • Messenger Member: Galvanized steel.

Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback

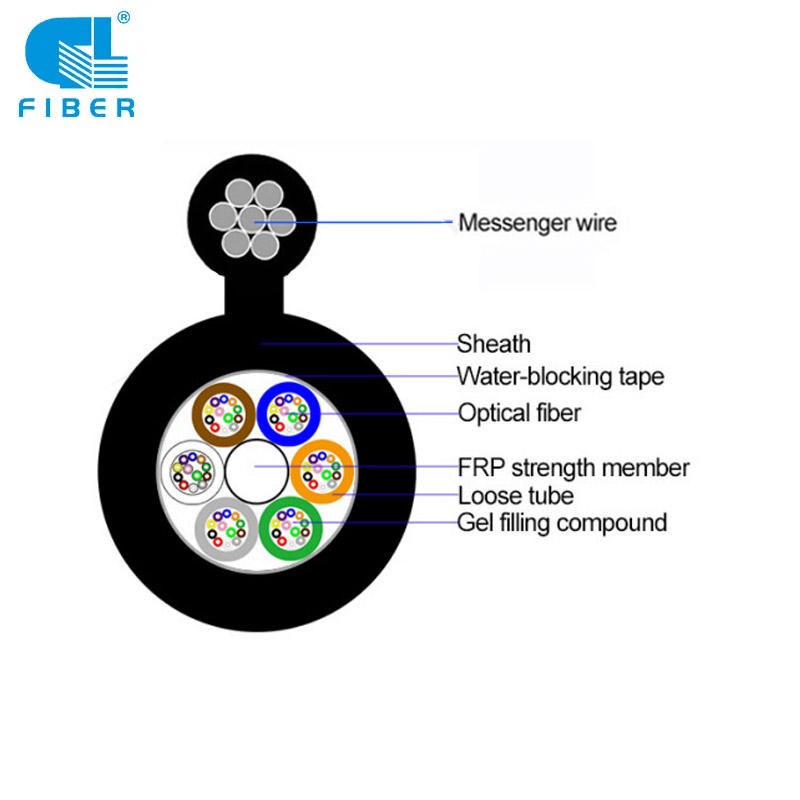

Structure Design:

gyfc8y

Cable Description:

  • Central strength member: metal materials available
  • Messenger wire: FRP available
  • Loose tube: PP or other materials available
  • Water blocking materials for loose tube: water blocking yarn available
  • Water blocking materials for cable core: cable filling compound available
  • Outer sheath: Aluminium tape armor, steel tape armor, anti-termite or flame retardant materials available

Features and Applications:

High tensile strength Self-supporting aerial installation Semi-dry core design, easy for installation and splice

Optical Characteristics:

             G.652.D           G.655      50/125um   62.5/125um
    Attenuation @850nm - - ≤3.0 dB/km ≤3.0 dB/km
@1300nm - - ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km - -
@1550nm ≤0.22 dB/km ≤0.23 dB/km - -
    Bandwidth @850nm - - ≥500 MHz · km ≥200 MHz · km
@1300nm - - ≥1000 MHz · km ≥600 MHz · km
Polarization mode dispersion lndividual fibre ≤0.20 ps/√km ≤0.20 ps/√km - -
Design link value (M=20,Q=0.01%) ≤0.1 ps/√km ≤0.1 ps/√km - -

Technical Data:

Item Contents Value
Fiber Count 24 48 72 96 144 288
Loose Tube No.of tubes*fibres per tube 4*6 4*12 6*12 8*12 12*12 24*12
Outer diameter (mm) 1.9 2.4 2.4 2.4 2.4 2.4
Central Strength member Material FRP
Diameter (mm) 2.0 2.0 2.6 2.6 2.6 2.6
Coated CSM diameter (mm) - - - 4.2 7.4 4.8
Water Blocking material Material Water Blocking Tape
Messenger Wire Structure and diameter (mm) 7*1.6
Sheath Thickness (mm) Nominal:1.8
Cable diameter(mm)Approx. 10.0/*21.0mm 10.8/*21.8mm 11.6/*22.6mm 13.2/*24.2mm 16.4/*27.4mm 19.2/*30.2mm
Cable weight(kg/km)Approx. 200 245 265 290 340 425
Operating temperature range(℃) -40~+70
Tensile Strength Short/ Long Term(N) 8000/2700
Crush resistanoe short/long term (N/100mm) 1000/300
The colour arrangement of fibre and tube is specified in the colour identification table.
Other structure and fibre count are also available according to customer requirements.

Installation performance:

Min. bend radius: installation 25D, operation 12.5D Temperature range: storage -40~+70℃, installation -30~+70℃, operation -40~+70℃

Packing and Reel Length:

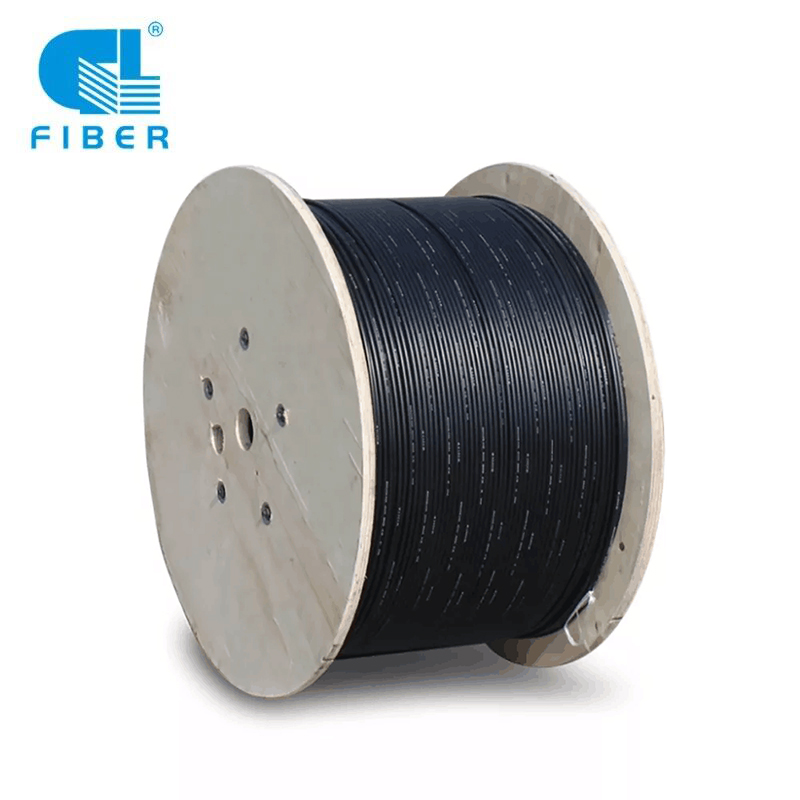

  • Standard wooden drum with protection
  • Standard reel length: 2/3 km/reel, other length is also available
Write your message here and send it to us

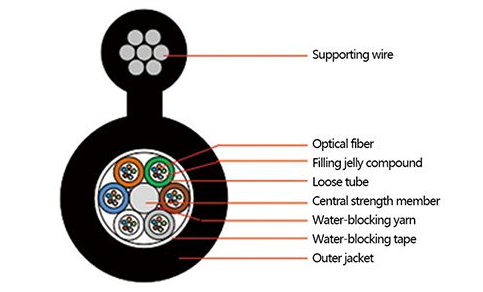

Structure Design

gyfc8y

Cable Description

  • Central strength member: metal materials available
  • Messenger wire: FRP available
  • Loose tube: PP or other materials available
  • Water blocking materials for loose tube: water blocking yarn available
  • Water blocking materials for cable core: cable filling compound available
  • Outer sheath: Aluminium tape armor, steel tape armor, anti-termite or flame retardant materials available

Features and Applications

High tensile strength Self-supporting aerial installation Semi-dry core design, easy for installation and splice

Optical Characteristics

G.652.D G.655 50/125um 62.5/125um
    Attenuation @850nm - - ≤3.0 dB/km ≤3.0 dB/km
@1300nm - - ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km - -
@1550nm ≤0.22 dB/km ≤0.23 dB/km - -
    Bandwidth @850nm - - ≥500 MHz · km ≥200 MHz · km
@1300nm - - ≥1000 MHz · km ≥600 MHz · km
Polarization mode dispersion lndividual fibre ≤0.20 ps/√km ≤0.20 ps/√km - -
Design link value (M=20,Q=0.01%) ≤0.1 ps/√km ≤0.1 ps/√km - -

Technical Data

Item Contents Value
Fiber Count 24 48 72 96 144 288
Loose Tube No.of tubes*fibres per tube 4*6 4*12 6*12 8*12 12*12 24*12
Outer diameter (mm) 1.9 2.4 2.4 2.4 2.4 2.4
Central Strength member Material FRP
Diameter (mm) 2.0 2.0 2.6 2.6 2.6 2.6
Coated CSM diameter (mm) - - - 4.2 7.4 4.8
Water Blocking material Material Water Blocking Tape
Messenger Wire Structure and diameter (mm) 7*1.6
Sheath Thickness (mm) Nominal:1.8
Cable diameter(mm)Approx. 10.0/*21.0mm 10.8/*21.8mm 11.6/*22.6mm 13.2/*24.2mm 16.4/*27.4mm 19.2/*30.2mm
Cable weight(kg/km)Approx. 200 245 265 290 340 425
Operating temperature range(℃) -40~+70
Tensile Strength Short/ Long Term(N) 8000/2700
Crush resistanoe short/long term (N/100mm) 1000/300
The colour arrangement of fibre and tube is specified in the colour identification table.
Other structure and fibre count are also available according to customer requirements.

Installation performance

Min. bend radius: installation 25D, operation 12.5D Temperature range: storage -40~+70℃, installation -30~+70℃, operation -40~+70℃

Packing and Reel Length

  • Standard wooden drum with protection
  • Standard reel length: 2/3 km/reel, other length is also available

https://www.gl-fiber.com/products-outdoor-fiber-optic-cable/

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3,000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Port:
Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!





Note:The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Remark:  The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
