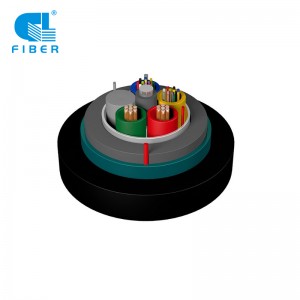

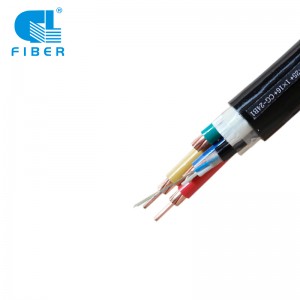

Stranded Loose Tube Hybrid Fiber Optic Cable GDTA53 Double Armored Composite

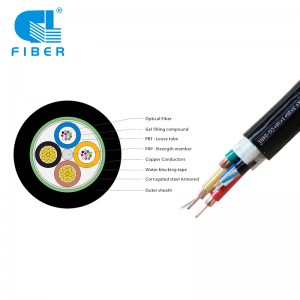

Hybrid Fiber Optic Cable, Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the centerof cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then an PE inner sheath is extruded and armored with corrugated steel tape. Finally, a PE outer sheath is extruded.

Product Name: Hybrid Fiber Optic Cable GDTA53 Double Armored Composite

Color: Black

Fiber: G652D,G657,G655 Single Mode Or Multi Mode

Fiber Count:12 Core, 24 Core, 48 Core, 96 Core, 144 Core

Outer Sheath: PE,HDPE,

Loose Tube: PBT

Armored: Steel Tape Armored



Open Whats App
Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback

Description:

Hybrid Fiber Optic Cable, Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the centerof cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then an PE inner sheath is extruded and armored with corrugated steel tape. Finally, a PE outer sheath is extruded.

Features
• Accurate process control ensuring good mechanical and temperature performances
• Optical and electrical hybrid design, solving the problem of power supply and signal transmission and providing the centralized monitoring and maintenance of power for equipment
• Improving manageability of power and reducing coordination and maintenance of power supply
• Reducing procurement costs and saving construction costs
• Mainly used to connect BBU and RRU in DC remote power supply system for distributed base station
• Applicable to buried installation

Standard:

YD/T 2159-2010 Internet-use optical power composite cable

Laying method: pipe, aerial

Technical Characteristics

Type O.D.

(mm)

 Weight

(Kg/km)

 Tensile strength

Long/short term (N)

 Crush

Long/short term

(N/100mm)

 Structure
GDTA53-02-24Xn+2*1.5 15.1 290 1000/3000 1000/3000 Structure I
GDTA53-02-24Xn+2*2.5 15.5 312 1000/3000 1000/3000 Structure I
GDTA53-02-24Xn+2*4.0 18.2 358 1000/3000 1000/3000 Structure II
GDTA53-02-24Xn+2*5.0 18.6 390 1000/3000 1000/3000 Structure II
GDTA53-02-24Xn+2*6.0 19.9 435 1000/3000 1000/3000 Structure II
GDTA53-02-24Xn+2*8.0 20.8 478 1000/3000 1000/3000 Structure II

 Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Write your message here and send it to us

Description:

Hybrid Fiber Optic Cable, Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. In the centerof cable is a metallic strength member. The tubes and copper wires (of required specifications) are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with laminated aluminum tape. Then an PE inner sheath is extruded and armored with corrugated steel tape. Finally, a PE outer sheath is extruded.

Features
• Accurate process control ensuring good mechanical and temperature performances
• Optical and electrical hybrid design, solving the problem of power supply and signal transmission and providing the centralized monitoring and maintenance of power for equipment
• Improving manageability of power and reducing coordination and maintenance of power supply
• Reducing procurement costs and saving construction costs
• Mainly used to connect BBU and RRU in DC remote power supply system for distributed base station
• Applicable to buried installation

Standard:

YD/T 2159-2010 Internet-use optical power composite cable

Laying method: pipe, aerial

Technical Characteristics
Type O.D.

(mm)

 Weight

(Kg/km)

 Tensile strength

Long/short term (N)

 Crush

Long/short term

(N/100mm)

 Structure
GDTA53-02-24Xn+2*1.5 15.1 290 1000/3000 1000/3000 Structure I
GDTA53-02-24Xn+2*2.5 15.5 312 1000/3000 1000/3000 Structure I
GDTA53-02-24Xn+2*4.0 18.2 358 1000/3000 1000/3000 Structure II
GDTA53-02-24Xn+2*5.0 18.6 390 1000/3000 1000/3000 Structure II
GDTA53-02-24Xn+2*6.0 19.9 435 1000/3000 1000/3000 Structure II
GDTA53-02-24Xn+2*8.0 20.8 478 1000/3000 1000/3000 Structure II

 Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
