Hybrid Fiber Cable Self-Supporting Composite Fiber Optic Cable

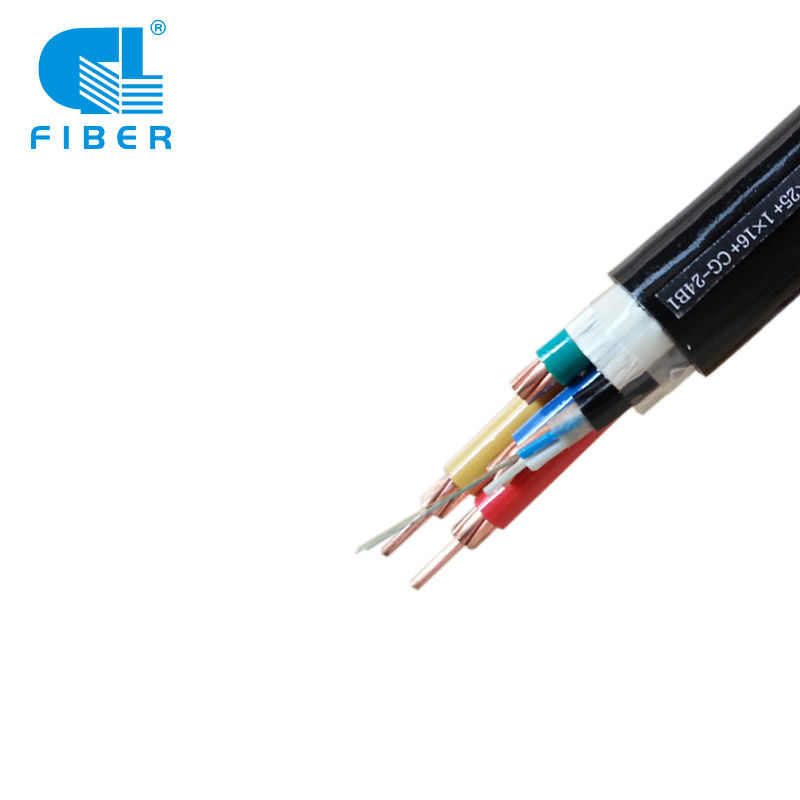

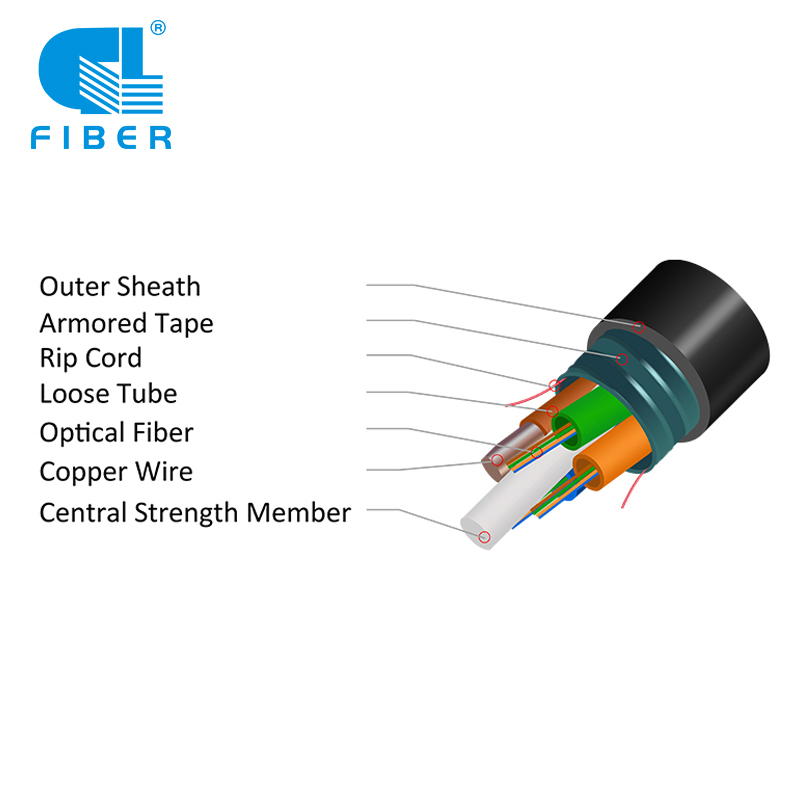

Composite or Hybrid Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.

Type:Hybrid Fiber Cable Self-Supporting 6 Pairs 24 AWG +2 Core Fiber Composite Fiber Optic Cable

Installation :Outdoor plant Self-supporting Aerial

Application : Camera ,CATV Network .

Certificated: ISO9001 ; CE;



Starting custom your ideal size By E-mail: [email protected]

Open Whats App
Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback

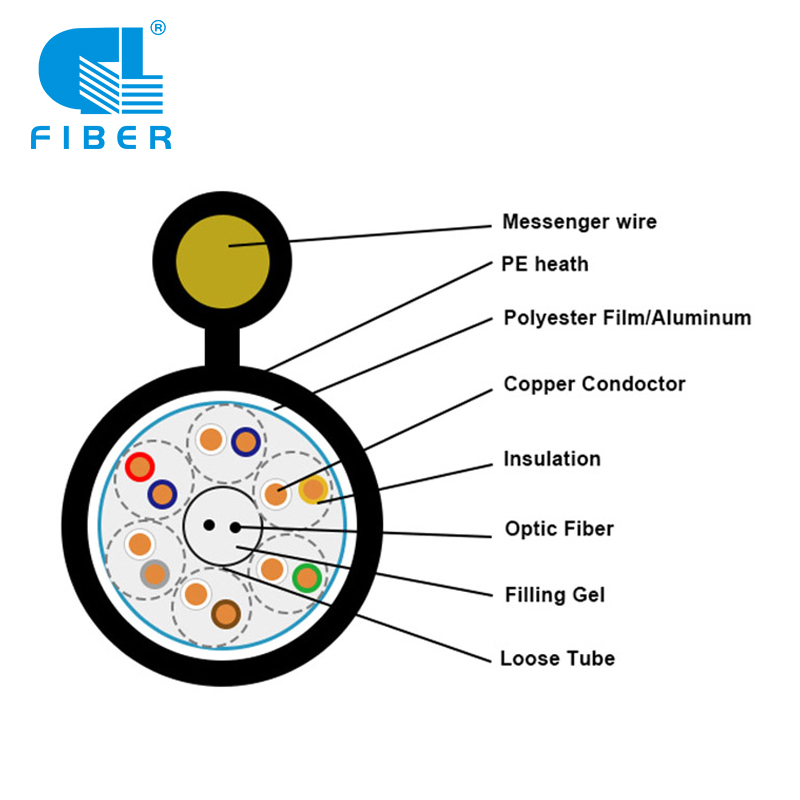

In the hybrid fiber optic cable, single-mode 9/125 /multi mode 50/125  fibers are positioned in loose tubes,with gel ,copper conductor as required application for outdoor normally.

Type:Hybrid Fiber Cable Self-Supporting 6 Pairs 24 AWG +2 Core Fiber Composite Fiber Optic Cable

Installation :Outdoor plant Self-supporting Aerial

Application : Camera ,CATV Network .

 Technical Parameter:

Fiber count   2 CORE
Fiber type:   ITUT-G652D
Conductor Diameter 6Pair 24AWG  0.5±0.01mm
Insulation polypropylene  0.7±0.1mm
Fiber Loose tube         PBT FILLING GEL
Messenger wire Material Galvanized Steel Wire
Diameter 2.6mm
Outer Sheath Material HDPE Jacket
Thickness 1.8±0.1mm
Operation temperature range -20℃ to + 70 ℃
Installation temperature range -20℃ to + 70 ℃
Transport and storage temperature range -20℃ to + 70 ℃
Tension strength Long term:300N  short term:600N
 Crush resistance Long term :1000 N/10cm Short term:2200N/10c

Write your message here and send it to us

In the hybrid fiber optic cable, single-mode 9/125 /multi mode 50/125  fibers are positioned in loose tubes,with gel ,copper conductor as required application for outdoor normally.

Type:Hybrid Fiber Cable Self-Supporting 6 Pairs 24 AWG +2 Core Fiber Composite Fiber Optic Cable

Installation :Outdoor plant Self-supporting Aerial

Application : Camera ,CATV Network .

Technical Parameter:

Fiber count   2 CORE
Fiber type:   ITUT-G652D
Conductor Diameter 6Pair 24AWG  0.5±0.01mm
Insulation polypropylene  0.7±0.1mm
Fiber Loose tube         PBT FILLING GEL
Messenger wire Material Galvanized Steel Wire
Diameter 2.6mm
Outer Sheath Material HDPE Jacket
Thickness 1.8±0.1mm
Operation temperature range -20℃ to + 70 ℃
Installation temperature range -20℃ to + 70 ℃
Transport and storage temperature range -20℃ to + 70 ℃
Tension strength Long term:300N  short term:600N
 Crush resistance Long term :1000 N/10cm Short term:2200N/10c

hybrid fiber optic cables Technical Specification:

OFC count 2
Optical fiber Fiber Count 1
Diameter 2.0mm
Thickness 0.3mm
Strength member Kevlar
Jacket PVC
Electricity Cross sectional area 0.5mm2
Thickness 0.6mm
Diameter 2.0mm
Insulating material Crosslinked polyethylene
Voltage、Current 400V,5A
FRP(mm) 1
Color of Electricity Yellow
Color of Optical Blue、Red（or as your requirement）
Belting Polyester belt
Outer jacket： LSZH (Black)
Outer thickness (mm) 1
Diameter Photoelectric composite (mm) 7.1±0.3mm
Weight kg/km) 45±5
Tension(N) 450
Packaging Details：

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

包装发货-OPGW

The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
