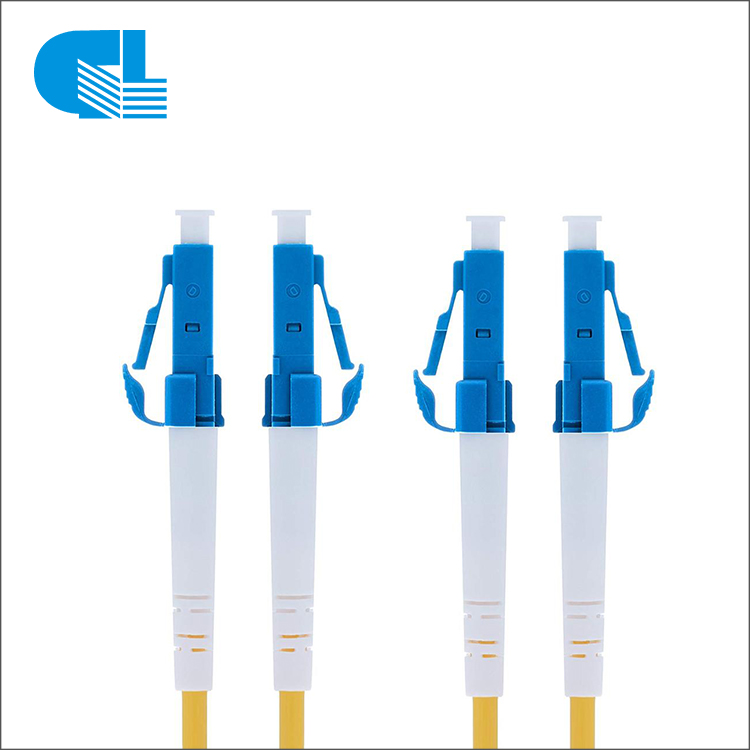

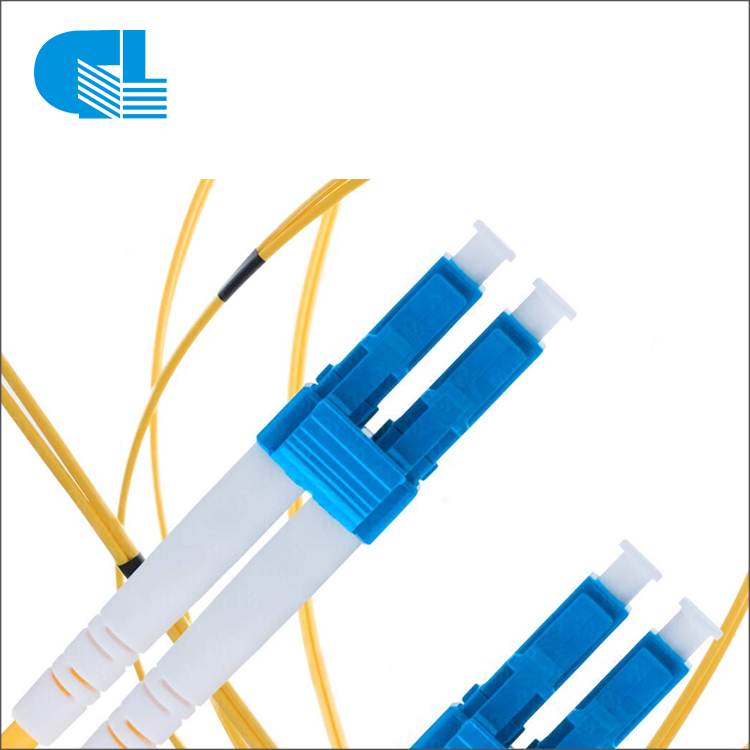

Single Mode/Multimode LC Fiber Patch cord/Pigtail

The LC fiber patch cord use a 1.25mm ceramic (zirconia) ferrule instead of the 2.5mm ferrule.

It has a push-and-latch design providing pull-proof stability in system rack mounts.

Externally LC patch cord resembles a standard RJ45 telephone jack.

Internally they resemble a miniature version of the SC connector.

Highly favored for single mode applications.

Product Name:Patch cord

Brand Place of Origin: GL Hunan,China (Mainland)

Provide OEM/ODM Services !

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Applications:

1，Gigabit Ethernet；

2，Video；

3，Active Device Termination；

4，Premise Installations；

5，Telecommunication Networks；

6，Multimedia

Features:

1，Compliance with IEC, Telcordia；

2，RJ-45 style housing with push-pull coupling mechanism which allows easy disengagement in dense spaces；

3，Small Form Factor – half the size of standard connectors；

4，Simplex and duplex assemblies available in standard and custom configurations Single mode and Multimode；

5，PC Finish.

Notes:

Only a part of Patch Cords are listed here. We can depend on customer’s requirement to producing the different model Patch Cords.

We supply OEM&ODM Service. Contact Us Now !

E-Mail: [email protected]

WhatsApp:+86 18073118925 Skype: opticfiber.tim

Write your message here and send it to us

Specification

SC LC FC ST Fiber Optical Patch Cord Parameter:

Parameter	Unit	LC/SC/ST/FC
		SM(9/125)			MM(50/125 or 62.5/125)
		PC	UPC	APC	PC
Insertion Loss	dB	≤0.3	≤0.2	≤0.3	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥35
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85

Notes：

Our Fiber Patch Cord and Fiber Pigtail range offers choices of any length, connector types and either PVC or LSZH sheath, All of our cable assemblies are composed of our top quality Ceramic Ferrules and Fiber Connectors housings ensuring a stable performance at a high quality level. Besides standard Fiber Patch cord, we also offer other types of Fiber Patch cord assemblies,Armored fiber patch cord, Waterproof fiber pigtail for different applications.

We can depend on customer’s requirement to producing the different model Patch Cord.

We supply OEM&ODM service.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
