Rack-Mount Fiber Optic Distribution Frame（ODF）

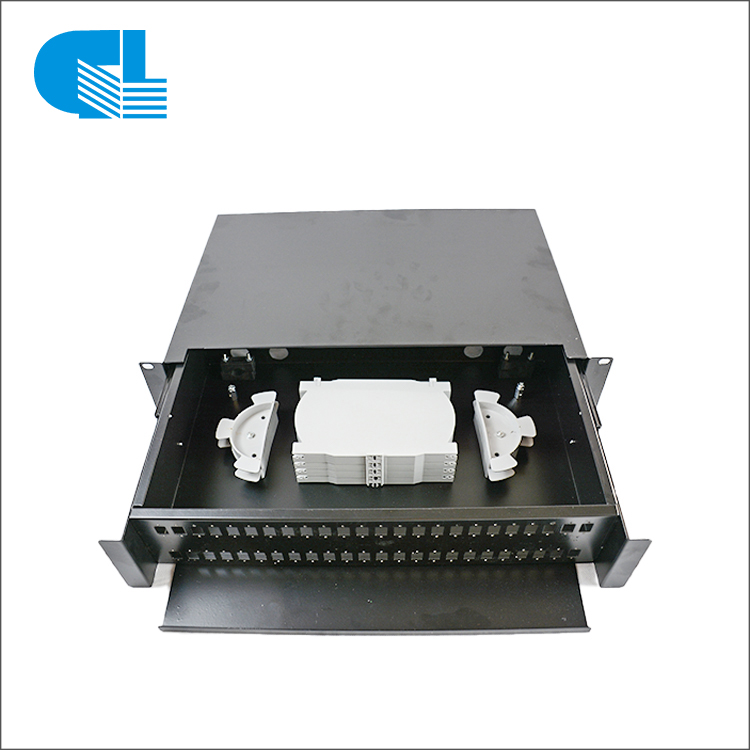

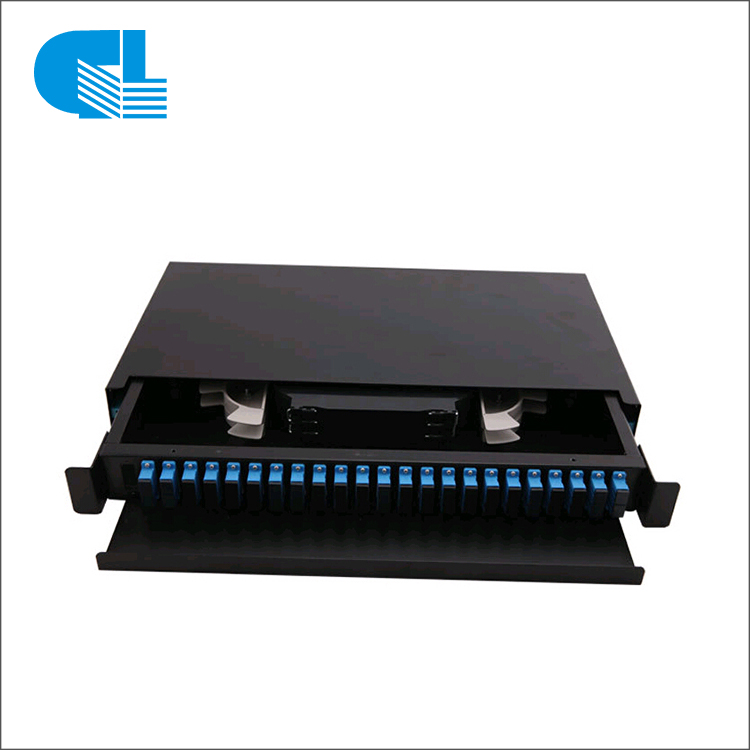

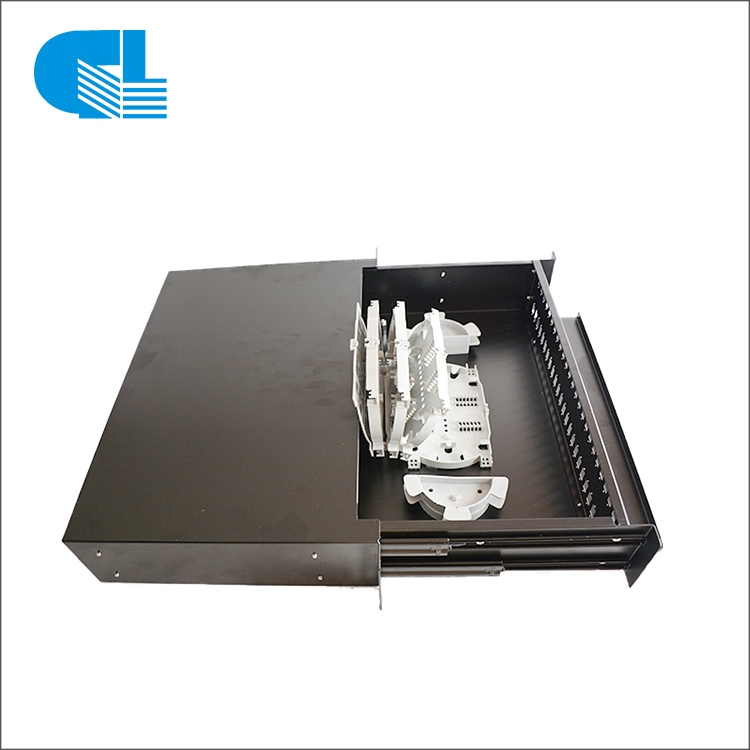

The Slidable Rack-mount Fiber Optic Distribution Frame (Model: GPA1-E1) has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters.

The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Product Name:Distribution Frame（ODF）

Brand Place of Origin: GL Hunan,China (Mainland)

Provide OEM/ODM Services !

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Application:

1，Telecommunications subscriber loop；

2，Fiber to the home (FTTH)；

3，LAN/WAN；

4，CATV.

Charcterisics:

1，Standard size 19”, light weight and reasonable structure；

2，Slide out drawer for easy cable management；

3，Suitable for ribbon and single fiber；

4，Compact design for space saving；

5，Various panel plate to fit different adapter interface；

6，Front mark on the plate is easy for identification and operation；

7，Easy for management and operation；

Features:

Easy Installa；High reliabil；FC/SC/ST/L；Anti-Rust p；Rugged Cas；Sliding Rail；For 19 in.

Notes:

Only a part of Distribution Frame（ODF） are listed here. We can depend on customer’s requirement to producing the different model Distribution Frame（ODF）.

We supply OEM&ODM Service. Contact Us Now !

E-Mail: [email protected]

WhatsApp:+86 18073118925 Skype: opticfiber.tim

Write your message here and send it to us

Specification

Specifications:

Model	Fiber Capacity	Height	Dimension(cm)	Weight(Kg)
GPA1-E1-12fiber	12	1U	45x 32×4.45	4
GPA1-E1-24fiber	24	1U	45x 32×4.45	4.2
GPA1-E1-48 fiber	36	2U	48x32x8.9	4.25
GPA1-E1-96 fiber	48	2U	48x32x8.9	4.31
GPA1-E1-96 fiber	96	4U	55x32x17.8	5.2

ODF Unit Series with door：

Modle No.	Overall Size	Max Capacity	Port Type	Way to install
GL0104011/15	4802803U	48core	SC/FC	Rack-mounted
GL0104012/16	4802804U	72core	SC/FC	Rack-mounted

ODF Unit Series without door：

Modle No.	Overall Size	Max Capacity	Port Type	Way to install
GL0104003	4802103U	48core	SC	Rack-mounted
GL0104004	4802104U	72core	SC	Rack-mounted
GL0104008	4802353U	48core	FC	Rack-mounted
GL0104009	4802354U	72core	FC	Rack-mounted

Notes:

We can depend on customer’s requirement to producing the different model ODF.

We supply OEM&ODM service.
