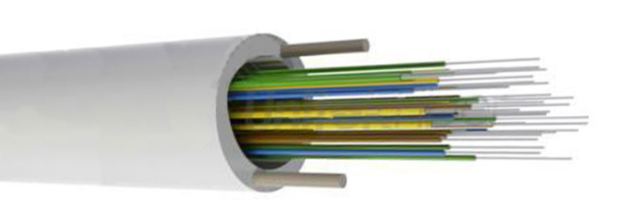

Micro Tube Indoor Outdoor Drop Fiber optic Cable is a popular fiber cable in the market. The drop fiber cable uses multiple 900um flame-retardant tight buffer fibers as optical communication medium, two parallel Fiber Reinforced Plastic (FRP) are placed at the two sides as strength member, then the cable is completed with a flame-retardant LSZH (low smoke, zero halogen, flame-retardant) jacket.
Cable Design :
Optical Fiber Cable-Dielectric-Single Sheath-G.657A2 Fiber
l Micro Module: thermoplastic material, containing 6/12 fibers, with dry core.
l Strength member: GFRP inside the outer sheath.
l Outer Sheath: LSZH, Ivory.
Cable Specification-12FO
|
Core |
|
12 |
24 |
36 |
48 |
72 |
96 |
144 |
|
No. of modules |
|
1 |
2 |
3 |
4 |
6 |
8 |
12 |
|
Fibers per module |
|
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Nominal Cable Diameter |
mm |
6.0 |
7.0 |
7.0 |
7.5 |
8.5 |
9.5 |
11.0 |
|
Cable weight |
kg |
38 |
48 |
49 |
55 |
69 |
81 |
105 |
|
Tension Max |
N |
300 |
450 |
600 |
||||
Cable Specification-6FO
|
Core |
|
6 |
12 |
24 |
36 |
48 |
72 |
96 |
144 |
|
No. of modules |
1 |
2 |
4 |
6 |
8 |
12 |
16 |
24 |
|
|
Fibers per module |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
|
Nominal Cable Diameter |
mm |
6.0 |
7.0 |
7.0 |
8.0 |
8.5 |
9.5 |
10.5 |
12 |
|
Cable weight |
kg |
37 |
47 |
49 |
62 |
68 |
81 |
94 |
119 |
|
Tension Max |
N |
300 |
450 |
600 |
|||||
Cable Application
|
Temperature Range |
Minimum Bend Radius |
||
|
Operation |
-20~+60℃ |
Load |
25×D |
|
Storage |
-20~+60℃ |
Unload |
12.5×D |
Main Mechanical and Environmental Characteristics
|
Test |
Test Standard |
Specified Value |
Acceptance Criteria |
|
Tensile |
IEC 60794-1-2-E1 |
5 min |
△α reversible, no damage |
|
Crush |
IEC 60794-1-2-E3 |
1000N/10cm 1min |
△α reversible, no damage |
|
Impact |
IEC 60794-1-2-E4 |
1N.m，R=12.5mm，1point |
△α reversible, no damage |
|
bending |
IEC 60794-1-2-E11 |
20D，6turns，10cycles |
△α reversible, no damage |
|
Torsion |
IEC 60794-1-2-E7 |
20N, 1m, ±1800 |
△α reversible, no damage |
Cabled Fiber Performance (G.657A2)
|
Characteristics |
Acceptance Value |
|
|
Attenuation |
@1310nm |
≤0.40dB/km |
| @1550nm |
≤0.25dB/km |
|
Sheath Marking
The outer sheath is marked in 1 meter intervals as follows: According to Customer’s Requirements;
Delivery Lengths
Standard delivery length will be 2/4 km.
