The rapid evolution of FPV drone technology has created unprecedented demand for high-performance optical bare fiber solutions. As drones transition from recreational devices to mission-critical tools for surveillance, industrial inspection, and defense applications, the need for reliable, lightweight, and bend-insensitive fiber optic tethers has never been greater.

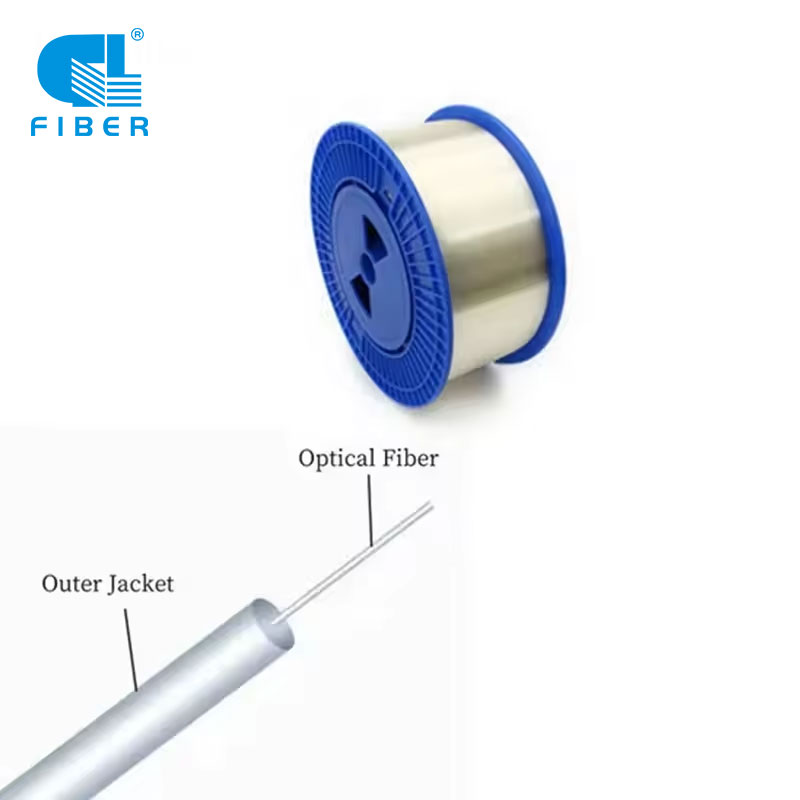

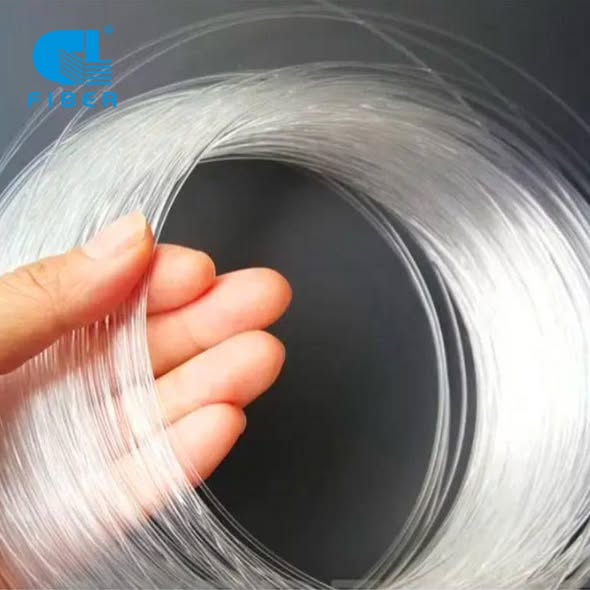

GL FIBER, a leading manufacturer of optic fiber products since 2004, offers premium G657A2 fiber spools designed specifically for UAV and FPV drone applications. Available in ultra-micro diameters of 0.20mm, 0.25mm, and 0.27mm, these silicone glass bare fiber spools deliver high-performance, ultra-low-loss transmission for distances ranging from 1 km to 50 km.
What Makes G657A2 the Preferred Choice for Drone Fiber Optics?
Superior Bend-Insensitive Performance
G657A2 fiber is engineered with a minimum bend radius of 7.5mm, providing superior anti-bending properties that are essential for drone tether applications. This bend-insensitive characteristic ensures reliable signal transmission even when the fiber is tightly wound on spools or subjected to the dynamic stresses of high-speed drone operations.
Full Compatibility with G.652 Single-Mode Fiber
The G657A2 bare fiber is fully compatible with G.652 single-mode fiber, supporting full-band transmission from 1260nm to 1626nm. This compatibility makes it an ideal choice for integration with existing fiber optic infrastructure while delivering enhanced bend performance.
Ultra-Low Attenuation for Long-Distance Missions
With attenuation of ≤0.35 dB/km at 1310nm and ≤0.25 dB/km at 1550nm, GL FIBER‘s G657A2 optical bare fiber ensures clear, high-quality signal transmission over extended distances. The low PMD characteristics support high bit-rate and long-distance transmission, making it suitable for demanding UAV missions.
Key Technical Specifications
Parameter Specification
- Fiber Type G.657.A2 Bend-Insensitive Single-Mode
- Coating Diameter 245 ± 10 μm (0.25mm nominal)
- Cladding Diameter 125.0 ± 0.7 μm
- Minimum Bend Radius 7.5 mm
- Attenuation @ 1310nm ≤ 0.35 dB/km
- Attenuation @ 1550nm ≤ 0.21 dB/km
- PMD (Maximum Individual Fiber) ≤ 0.2 ps/(km¹/²)
- Proof Test ≥ 9.0N, ≥ 1.0%
Source: GL FIBER Product Specification
The fiber is available in ultra-micro diameters of 0.20mm, 0.25mm, and 0.27mm, with standard spool lengths ranging from 1 km to 50 km.
Application Areas: Where Drone Fiber Optic Excels
Long-Range FPV Drone Missions
FPV drone bare fiber tethers provide jamming-free, high-definition video and control transmission for extended-range operations. The ultra-lightweight design minimizes drag on the drone, allowing for longer flight times and improved maneuverability.
Police Surveillance & Security Drones
Law enforcement agencies rely on drone fiber tethers for secure, interference-free surveillance operations in urban environments.
Tunnel & Bridge Industrial Inspection
Industrial inspection drones operating in tunnels, pipelines, and bridges benefit from the reliable, high-bandwidth connection provided by optical bare fiber tethers.
Emergency Response Communication Units
In disaster response scenarios, G657A2 fiber spools enable rapid deployment of temporary communication networks in high-EMI or strong RF environments.
UAV Tethered Missions
For long-duration tethered UAV operations, the silicone glass bare fiber provides continuous power and data transmission, eliminating battery limitations.
Market Trends & Demand Forecast
Explosive Growth in Drone Fiber Optic Demand
The global drone fiber optic market is experiencing unprecedented growth driven by:
- Defense & Security Applications: Increasing adoption of fiber-optic guided drones in modern defense technology
- Industrial Inspection: Growing demand for remote inspection capabilities in hazardous environments
- Emergency Response: Rising need for rapid-deployment communication systems
Price Trends
The G657A2 optic fiber market has seen significant price appreciation due to supply constraints and surging demand. GL FIBER maintains competitive pricing while ensuring the highest quality standards.
How to Identify Quality G657A2 Bare Fiber？
1. Verify Bend Performance
Insist on macrobending loss test reports showing ≤0.03 dB at 1550nm (10 turns, 30mm radius). Quality fiber maintains signal integrity even under tight bends.
2. Check Attenuation Specifications
Genuine optical bare fiber should demonstrate attenuation of ≤0.35 dB/km at 1310nm and ≤0.21 dB/km at 1550nm.
3. Inspect Physical Quality
Consistent coating diameter (245±10 μm)
Smooth, uniform surface without defects
Professional spooling without tangles or uneven winding
4. Demand Batch-Specific Documentation
Reputable manufacturers like GL FIBER provide electronic test reports with every shipment, ensuring full traceability and quality assurance.
5. Partner with Trusted Source Factories
GL FIBER produces and tests optical fiber independently, with all qualified fibers meeting or exceeding technical specification requirements. Our ISO9001-certified facility ensures consistent quality across every production batch.
Why Choose GL FIBER?
With 22+ years of manufacturing experience, GL FIBER is a premier manufacturer of bare fiber, optic fiber, and drone fiber solutions. Our advantages include:
- Independent production & testing – Full quality control from preform to finished spool
- Multiple diameter options – Available in 0.20mm, 0.25mm, and 0.27mm
- Comprehensive length range – 1 km to 50 km spools
- Complete documentation – Electronic test reports with every shipment
- Global reach – Serving customers in 200+ countries and regions
Contact GL FIBER Today
Ready to secure your supply of premium G657A2 bare optical fiber spools for UAV and FPV drone applications? Contact GL FIBER for current pricing, specifications, and availability.
