The fiber complie with or exceed the technical specifications in ITU-T G.657.A1/A2/B2.
Feature:
1. Minimum bend radius 7.5mm, superior anti-bending property;
2. Fully compatible with G.652 single-mode fiber. Full band (1260～1626nm) transmission;
3. Low PMD for high bit-rate and long distance transmission. Extremely low micro-bending attenuation, applicable for all optical cable types including ribbons;
4. High anti-fatigue parameter ensures service life under small bending radius.

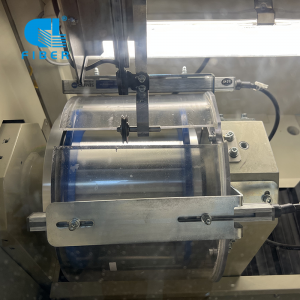

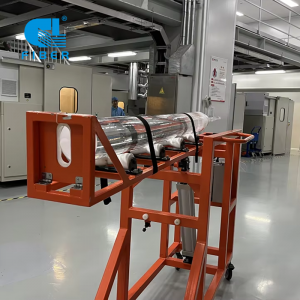

GL FIBER® provides the whole series of SMF products that meet and even excel the requirements of standards on performance indicators. Due to the high stability, these products effectively meet the demand for high speed, large capacity, long distance and small bending radius necessary for signal transmission in different applications.
|
Brand
|
Model | Diameter | Length | Packing |
| GL FIBER | G657A2 | 200um/250um/270um | 50.4KM/60.4KM | Plastic drum |
|
Single Mode G657A2 Fiber Specification
|
|
Attributes |
specification | ||
|
Dimensional Specifications |
Cladding Diameter | 125.0±0.7 um | |
| Cladding Non-Circularity | ≤1% | ||
| Coating Diameter | 245±10 um | ||
| Coating-Cladding Concentricity | ≤12 um | ||
| Coating Non-Circularity | ≤6 % | ||
| Core-Clad Concentricity | ≤0.5 um | ||
| Fiber Curl (radius) | ≥4 m | ||
| Delivery Length | 2.05-50.4( km/reel) | ||
|
Optical Specifications |
Mode-Field Diameter (MFD) |
@1310nm | 8.6±0.4 um |
| @1550nm | 9.7±0.6 um | ||
|
Attenuation |
@1310nm | ≤0.35 dB / km | |
| @1383nm | ≤0.35 dB / km | ||
| @1550nm | ≤0.21 dB / km | ||
| @1625nm | ≤0.23dB / km | ||
|
Attenuation VS. Wavelength |
@1285-1330nm, Ref. λ@1310nm | ≤0.04 dB / km | |
| @1525-1575nm, Ref. λ@1550nm | ≤0.03 dB / km | ||
| Point Discontinuity | @1310nm | ≤0.05 dB | |
|
Optical Specifications |
@1550nm | ≤0.05 dB | |
|
Polarization Mode Dispersion（PMD） |
Maximum Individual Fiber PMD | ≤0.2 ps/(km1/2) | |
| PMD Link Design Value
（M=20, Q=0.01%） |
≤0.1 ps/(km1/2) | ||
| Typical Value | 0.04 ps/(km1/2) | ||
| Zero Dispersion Wavelength(λ0) | 1312±12 nm | ||
| Zero Dispersion Slope(S0) | ≤0.092 ps/(nm2.km) | ||
|
Dispersion |
1550nm | ≤18 ps/(nm.km) | |
| 1625nm | ≤22 ps/(nm.km) | ||
| Cable Cutoff Wavelength λcc | ≤1260 nm | ||
|
Mechanical Specifications |
Proof Test | ≥9.0N, ≥1.0%, ≥100Kpsi | |
| Dynamic stress corrosion susceptibility parameters Nd | ≥20 | ||
|
Coating Strip Force |
Average | 1.5 N | |
| Peak | 1.3-8.9 N | ||
|
Macrobending Loss (dB) |
1 turn, Φ15mm@1550nm&1625nm | ≤0.5 dB, ≤1 dB | |
| 1 turn, Φ20mm@1550nm&1625nm | ≤0.1 dB, ≤0.2 dB | ||
| 10turns, Φ30mm@1550nm&1625nm | ≤0.03 dB, ≤0.1 dB | ||
|
Environmental Specifications |
Temperature Dependence（-60℃ to 85℃ ,@1310nm&1550nm&1625nm） | ≤0.05 dB / km | |
| Water Immersion（23±2℃, 30 days@1310nm&1550nm&1625nm） | ≤0.05 dB / km | ||
| Dry Heat Soak（85±2℃, 30 days@1310nm&1550nm&1625nm） | ≤0.05 dB / km | ||
| Damp Heat（85±2℃, at 85%RH, 30 days @1310nm&1550nm&1625nm） | ≤0.05 dB / km | ||
Warranty:
The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.
Packaging and storageg:

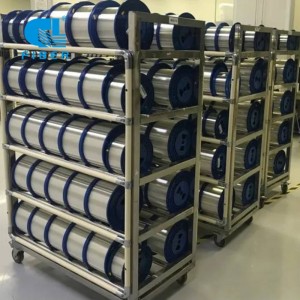

1. Ensure no foreign matter on the reel and fiber surface, wrap it with film and cover, and label fiber coding on the reel and cover respectively.
2. The packaged optical fiber is stored at a constant temperature of 25 ℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
GL FIBER® provides the whole series of SMF products that meet and even excel the requirements of standards on performance indicators. Due to the high stability, these products effectively meet the demand for high speed, large capacity, long distance and small bending radius necessary for signal transmission in different applications.
|
Brand
|
Model | Diameter | Length | Packing |
| GL FIBER | G657A2 | 200um/250um/270um | 50.4KM/60.4KM | Plastic drum |
|
Single Mode G657A2 Fiber Specification
|
|
Attributes |
specification | ||
| Dimensional Specifications | Cladding Diameter | 125.0±0.7 um | |
| Cladding Non-Circularity | ≤1% | ||
| Coating Diameter | 245±10 um | ||
| Coating-Cladding Concentricity | ≤12 um | ||
| Coating Non-Circularity | ≤6 % | ||
| Core-Clad Concentricity | ≤0.5 um | ||
| Fiber Curl (radius) | ≥4 m | ||
| Delivery Length | 2.05-50.4( km/reel) | ||
| Optical Specifications | Mode-Field Diameter (MFD) | @1310nm | 8.6±0.4 um |
| @1550nm | 9.7±0.6 um | ||
| Attenuation | @1310nm | ≤0.35 dB / km | |
| @1383nm | ≤0.35 dB / km | ||
| @1550nm | ≤0.21 dB / km | ||
| @1625nm | ≤0.23dB / km | ||
| Attenuation VS. Wavelength | @1285-1330nm, Ref. λ@1310nm | ≤0.04 dB / km | |
| @1525-1575nm, Ref. λ@1550nm | ≤0.03 dB / km | ||
| Point Discontinuity | @1310nm | ≤0.05 dB | |
| Optical Specifications | @1550nm | ≤0.05 dB | |
| Polarization Mode Dispersion（PMD） | Maximum Individual Fiber PMD | ≤0.2 ps/(km1/2) | |
| PMD Link Design Value （M=20, Q=0.01%） | ≤0.1 ps/(km1/2) | ||
| Typical Value | 0.04 ps/(km1/2) | ||
| Zero Dispersion Wavelength(λ0) | 1312±12 nm | ||
| Zero Dispersion Slope(S0) | ≤0.092 ps/(nm2.km) | ||
| Dispersion | 1550nm | ≤18 ps/(nm.km) | |
| 1625nm | ≤22 ps/(nm.km) | ||
| Cable Cutoff Wavelength λcc | ≤1260 nm | ||
| Mechanical Specifications | Proof Test | ≥9.0N, ≥1.0%, ≥100Kpsi | |
| Dynamic stress corrosion susceptibility parameters Nd | ≥20 | ||
| Coating Strip Force | Average | 1.5 N | |
| Peak | 1.3-8.9 N | ||
| Macrobending Loss (dB) | 1 turn, Φ15mm@1550nm&1625nm | ≤0.5 dB, ≤1 dB | |
| 1 turn, Φ20mm@1550nm&1625nm | ≤0.1 dB, ≤0.2 dB | ||
| 10turns, Φ30mm@1550nm&1625nm | ≤0.03 dB, ≤0.1 dB | ||
| Environmental Specifications | Temperature Dependence（-60℃ to 85℃ ,@1310nm&1550nm&1625nm） | ≤0.05 dB / km | |
| Water Immersion（23±2℃, 30 days@1310nm&1550nm&1625nm） | ≤0.05 dB / km | ||
| Dry Heat Soak（85±2℃, 30 days@1310nm&1550nm&1625nm） | ≤0.05 dB / km | ||
| Damp Heat（85±2℃, at 85%RH, 30 days @1310nm&1550nm&1625nm） | ≤0.05 dB / km | ||
Warranty: The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications. Packaging and storageg: 1. Ensure no foreign matter on the reel and fiber surface, wrap it with film and cover, and label fiber coding on the reel and cover respectively. 2. The packaged optical fiber is stored at a constant temperature of 25 ℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
