Indoor/outdoor Micro-tube 12 cores Fiber optic Cable GJXZY SM G657A2

Indoor/outdoor Fiber optic cable GJXZY is our newly developed fiber cable which is designed to meet both the harsh environment of outdoors but also can be applied in indoors. The structure of the GJXZY indoor/outdoor fiber cable is to insert 250um colored optical fibers into a loose tube made of high modulus materials and fill the loose sleeve with waterproof compounds. There are two parallel FRPs are placed at the both sides of the fiber cable. Finally the fiber cable is extruded with frame-retardant LSZH sheath.

Product Name: outdoor Micro-tube 12 cores Fiber optic Cable GJXZY SM G657A2

Fiber type: G657A fiber, G657B fiber

Fiber Core:Up to 24 fibers.

Application:

  • This fiber cable is applied in Duct, Aerial FTTx, Access installations.
  • Used in access network or as access cable from outdoor to indoor in customer premises network.
  • Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.



Description

Specification

Package & Tansportation

Indoor/outdoor Fiber optic cable GJXZY is our newly developed fiber cable which is designed to meet both the harsh environment of outdoors but also can be applied in indoors.

Features:

1. Fiber type: G657A fiber, G657B fiber
2. Up to 24 fibers.
3. Uni-tube gel-filled construction for superior fiber protection.
4. Two parallel FRP wire to enhance tensile resistant and protect cable from mechanical damage.
5. Designed for use with inexpensive attachment hardware.
6. Self-supported no messenger needed.
7. Flame-retardent LSZH jacket
8. Small size, Low cost.

Application:

  • This fiber cable is applied in Duct, Aerial FTTx, Access installations.
  • Used in access network or as access cable from outdoor to indoor in customer premises network.
  • Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Product Parameter:

No. of cable 12-24
Fiber Model G.657A1
Strength Member Material FRP
Diameter(±0.05)mm 1.0
Loose Tube Material LSZH
Diameter(±0.05)mm 1.4
Thickness(±0.03)mm 0.15
The Max.Core NO./Tube 12
Outer Sheath Material LSZH
Thickness(±0.1)mm 2.0
Cable Diameter(±0.2)mm 7.0
Cable Weight(±3kg) 36
Min. bending radius Without Tension 10.0×Cable-φ
Under Maximum Tension 20.0×Cable-φ
Temperature range (℃) Installation -20~+60
Transport&Storage -40~+70
Operation -40~+70
NO. Item Requirement
1 Allowable Tensile Strength Short Term 600 N
Long Term 200 N
2 Allowable Crush Resistance Short Term 1000 (N/100mm)
Long Term 300 (N/100mm)



Write your message here and send it to us

Indoor/outdoor Fiber optic cable GJXZY is our newly developed fiber cable which is designed to meet both the harsh environment of outdoors but also can be applied in indoors. The structure of the GJXZY indoor/outdoor fiber cable is to insert 250um colored optical fibers into a loose tube made of high modulus materials and fill the loose sleeve with waterproof compounds. There are two parallel FRPs are placed at the both sides of the fiber cable. Finally the fiber cable is extruded with frame-retardant LSZH sheath.

Features:

1. Fiber type: G657A fiber, G657B fiber
2. Up to 24 fibers.
3. Uni-tube gel-filled construction for superior fiber protection.
4. Two parallel FRP wire to enhance tensile resistant and protect cable from mechanical damage.
5. Designed for use with inexpensive attachment hardware.
6. Self-supported no messenger needed.
7. Flame-retardent LSZH jacket
8. Small size, Low cost.

Application:

  • This fiber cable is applied in Duct, Aerial FTTx, Access installations.
  • Used in access network or as access cable from outdoor to indoor in customer premises network.
  • Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Product Parameter:

No. of cable 12-24
Fiber Model G.657A1
Strength Member Material FRP
Diameter(±0.05)mm 1.0
Loose Tube Material LSZH
Diameter(±0.05)mm 1.4
Thickness(±0.03)mm 0.15
The Max.Core NO./Tube 12
Outer Sheath Material LSZH
Thickness(±0.1)mm 2.0
Cable Diameter(±0.2)mm 7.0
Cable Weight(±3kg) 36
Min. bending radius Without Tension 10.0×Cable-φ
Under Maximum Tension 20.0×Cable-φ
Temperature range (℃) Installation -20~+60
Transport&Storage -40~+70
Operation -40~+70
NO. Item Requirement
1 Allowable Tensile Strength Short Term 600 N
Long Term 200 N
2 Allowable Crush Resistance Short Term 1000 (N/100mm)
Long Term 300 (N/100mm)

Packing and Marking:

  1. 1km/2km one plate wooden package
  2. 7-layer carton outer box
  3. Covered by plastic buffer she
  4. Sealed by strong wooden battens
  5. At least 1 m of inside end of cable will be reserved for testing.
  6. Drum length: Standard drum length is 3,000m±2%; as required
  7. 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name
  8. OEM wooden plate printing
  9. OEM carton printing
  10. Manufacturing year and month Roll—direction arrow;Drum length; Gross/net weight;

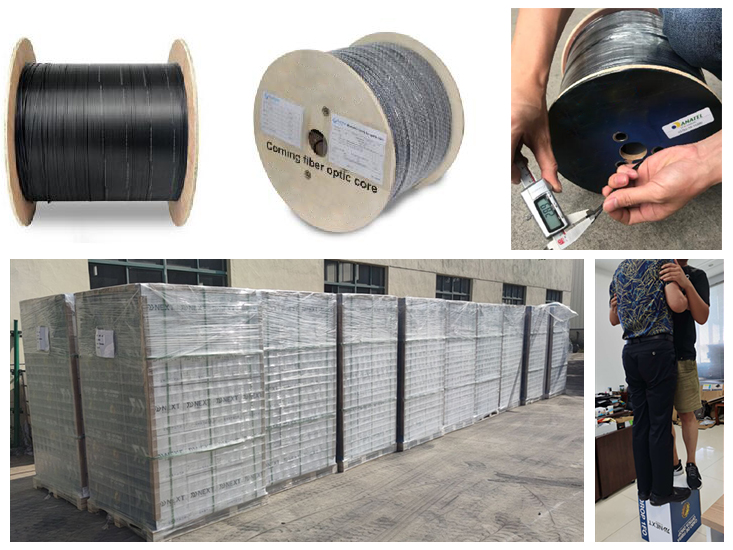

Packaging and Shipping

ftth drop cable packaging shipping
