Application:Indoor/Outdoor Lead-in Wire for Telephone Network Users
Usages:1. It is mainly used to transmit audio, analog signal in 150MHz and below and digital signal in 2048kn and below, and for broadband transmission in 16MHz and below.2.Cable length sign is provided to reduce waste;
Application Standard:YD/T1955-2009;IEC708-1

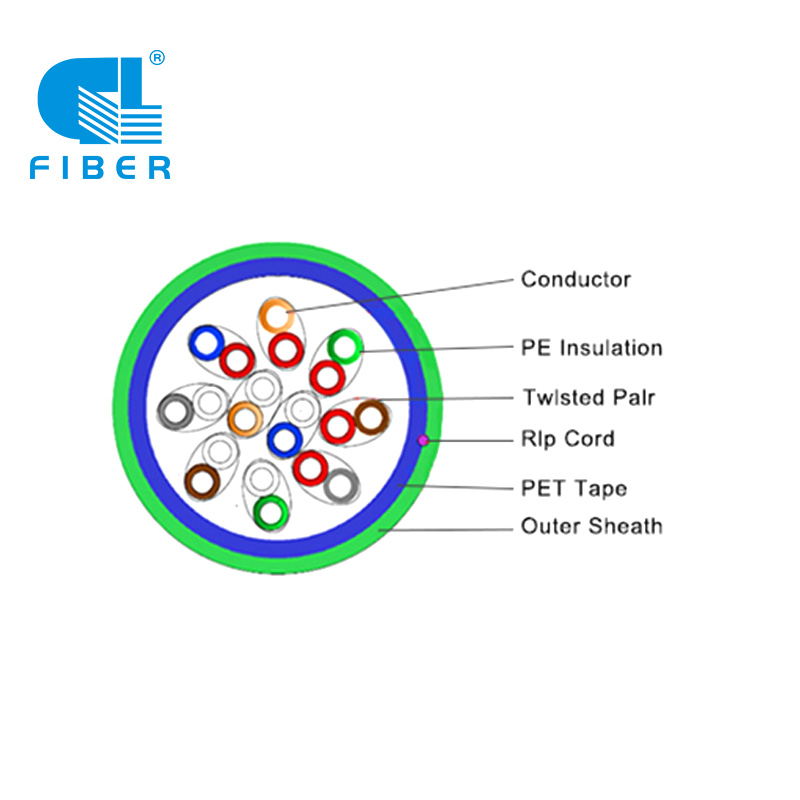

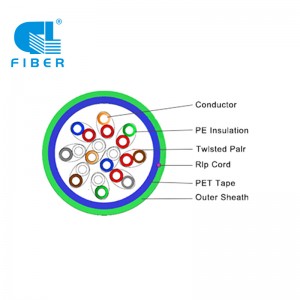

Cable Features:

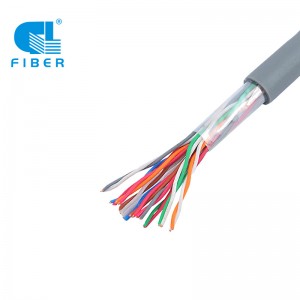

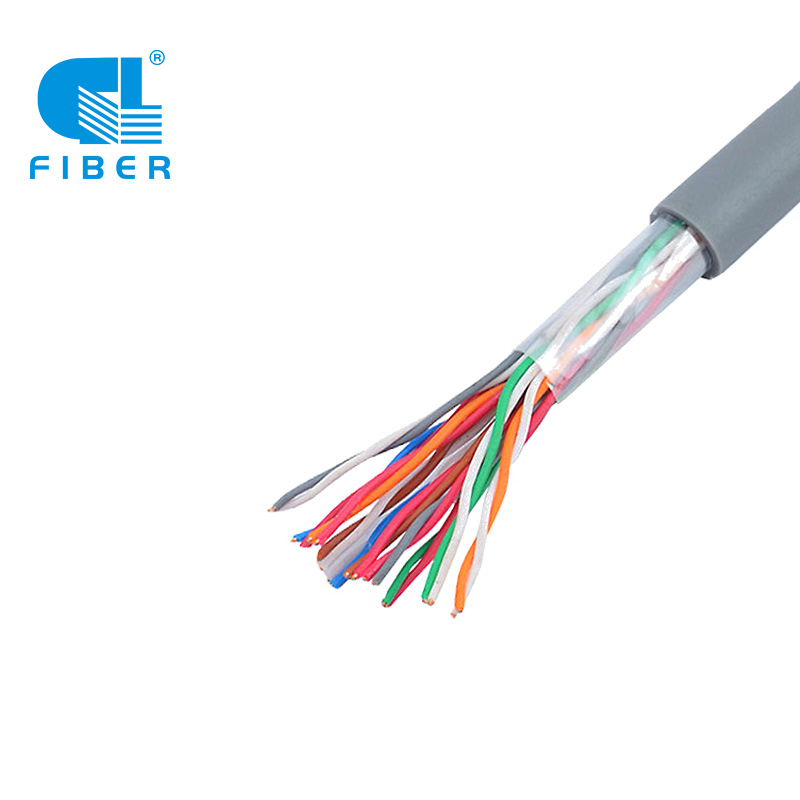

Type: |
Multi Pair Telephone Cable |
Conductor: |
Bare Copper |
Conductor Diameter: |
0.4mm,0.5mm,0.6mm etc. |
Conductor Number: |
1-100 |
Insulation: |
PE |
Jacket Material: |
PVC |
Mylar: |
Yes |
Rip Cord: |
Yes |
Application: |
Indoor |
Electrical Characteristics:
DC resistance |
0.5 |
0.6 |
0.7 |
≤9.5Ω/100m |
≤6.3Ω/100m |
≤4.8Ω/100m |
Insulation resistance |
>=10000MΩ/km |
Wire pair dc resistance unbalance |
Average value≤1.5% |
Working capacity |
Maximum value≤5.7nF±2/100m |
Physical Characteristics:
Cable pair quantity |
1pair -2 pairs |
Conductor material |
Anaerobic round copper (purity 99.99%) |
Insulation material |
HDPE (high density polyethylene) |
Sheathing material |
PVC (polyvinyl chloride), PE (polyethylene) |
Minimum curve radius |
10 times outside diameter of cable |
Working temperature |
-20ºC~+70ºC |
Notes:

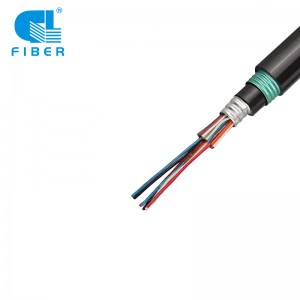

More Telephone Cable(HYA, HYAT, HYAT53, HYAT23, HYATC, HYAC, HSYV, HYV, etc ).
Can be produced according to the customer’s demands.
