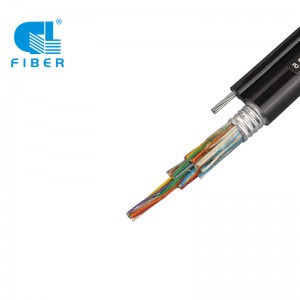

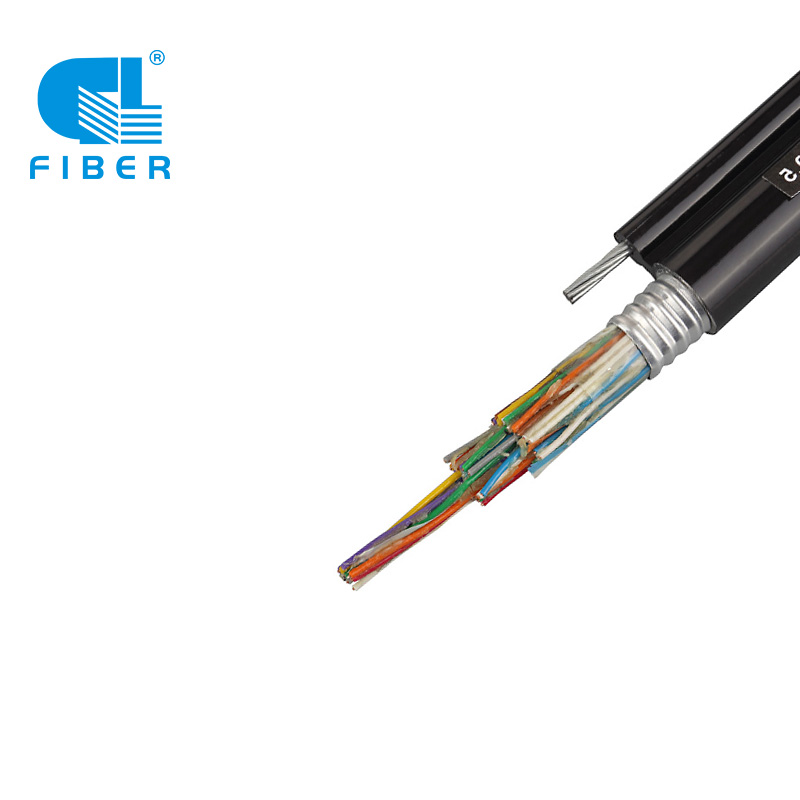

HYAC Telephone Cable is a self-supporting local communication cable with copper conductor, solid polyolefin insulation and Al-plastic sheath.10-300 Pairs.
Product Name: HYAC 10-300 Pairs Self-Supporting Aerial Telephone Cable
Brand Place of Origin: GL Hunan,China (Mainland)
Application: Indoor/Outdoor Lead-in Wire for Telephone Network Users
Starting custom your ideal size By E-mail: [email protected]
Application:For long distance and interoffice communication, for Aerial installation.
Rated Temperature:-30 ℃ ~ 60 ℃. Laying temperature:>-5℃

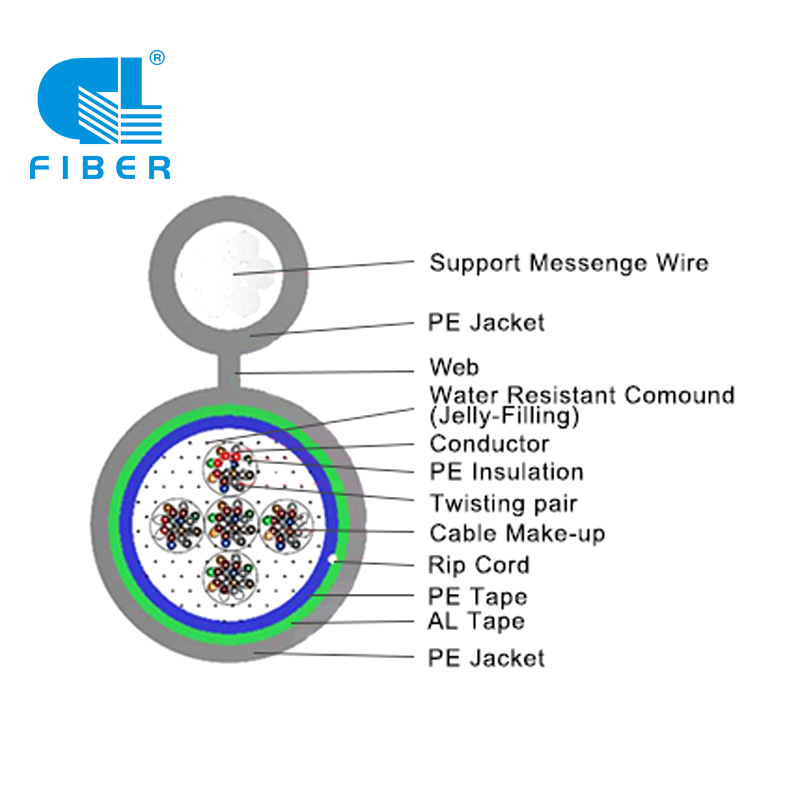

Cable Features：
| Wire diameter (mm) | Dimensions | Wire diameter (mm) | Dimensions | ||||||
| pairs | Max.outside diameter(mm) | Approx. Weight (kg/km) | pairs | Max.outside diameter(mm) | Approx. Weight (kg/km) | ||||
| Main cable | Auxiliary cable | Main cable | Auxiliary cable | ||||||
| 0.4 | 10 | 21 | 9 | 335 | 0.6 | 10 | 23 | 11 | 372 |
| 20 | 23 | 10 | 357 | 20 | 25 | 14 | 461 | ||
| 30 | 24 | 12 | 402 | 30 | 28 | 16 | 551 | ||
| 50 | 25 | 14 | 461 | 50 | 33 | 20 | 729 | ||
| 100 | 30 | 18 | 640 | 100 | 38 | 28 | 1176 | ||
| 200 | 36 | 24 | 1012 | 0.7 | 10 | 24 | 11 | 351 | |
| 300 | 41 | 28 | 1354 | 20 | 26 | 14 | 483 | ||
| 0.5 | 10 | 22 | 10 | 342 | 30 | 29 | 17 | 582 | |
| 20 | 24 | 12 | 402 | 50 | 33 | 21 | 797 | ||
| 30 | 25 | 14 | 461 | 100 | 41 | 29 | 1298 | ||
| 50 | 28 | 16 | 565 | 0.8 | 10 | 25 | 13 | 400 | |
| 100 | 33 | 22 | 863 | 20 | 29 | 17 | 545 | ||
| 200 | 43 | 30 | 1414 | 30 | 33 | 21 | 700 | ||
| 300 | 48 | 36 | 1905 | 0.9 | 10 | 28 | 14 | 476 | |
| 20 | 30 | 18 | 655 | ||||||
| 30 | 36 | 23 | 863 | ||||||
Notes:
More Telephone Cable(HYA, HYAT, HYAT53, HYAT23, HYATC, HYAC, HSYV, HYV, etc ).
Can be produced according to the customer’s demands.
Application:
For long distance and interoffice communication, for Aerial installation.
Rated Temperature:
-30 ℃ ~ 60 ℃. Laying temperature:>-5℃
Cable Features:
| Wire diameter (mm) | Dimensions | Wire diameter (mm) | Dimensions | ||||||
| pairs | Max.outside diameter(mm) | Approx. Weight (kg/km) | pairs | Max.outside diameter(mm) | Approx. Weight (kg/km) | ||||
| Main cable | Auxiliary cable | Main cable | Auxiliary cable | ||||||
| 0.4 | 10 | 21 | 9 | 335 | 0.6 | 10 | 23 | 11 | 372 |
| 20 | 23 | 10 | 357 | 20 | 25 | 14 | 461 | ||
| 30 | 24 | 12 | 402 | 30 | 28 | 16 | 551 | ||
| 50 | 25 | 14 | 461 | 50 | 33 | 20 | 729 | ||
| 100 | 30 | 18 | 640 | 100 | 38 | 28 | 1176 | ||
| 200 | 36 | 24 | 1012 | 0.7 | 10 | 24 | 11 | 351 | |
| 300 | 41 | 28 | 1354 | 20 | 26 | 14 | 483 | ||
| 0.5 | 10 | 22 | 10 | 342 | 30 | 29 | 17 | 582 | |
| 20 | 24 | 12 | 402 | 50 | 33 | 21 | 797 | ||
| 30 | 25 | 14 | 461 | 100 | 41 | 29 | 1298 | ||
| 50 | 28 | 16 | 565 | 0.8 | 10 | 25 | 13 | 400 | |
| 100 | 33 | 22 | 863 | 20 | 29 | 17 | 545 | ||
| 200 | 43 | 30 | 1414 | 30 | 33 | 21 | 700 | ||
| 300 | 48 | 36 | 1905 | 0.9 | 10 | 28 | 14 | 476 | |
| 20 | 30 | 18 | 655 | ||||||
| 30 | 36 | 23 | 863 | ||||||
