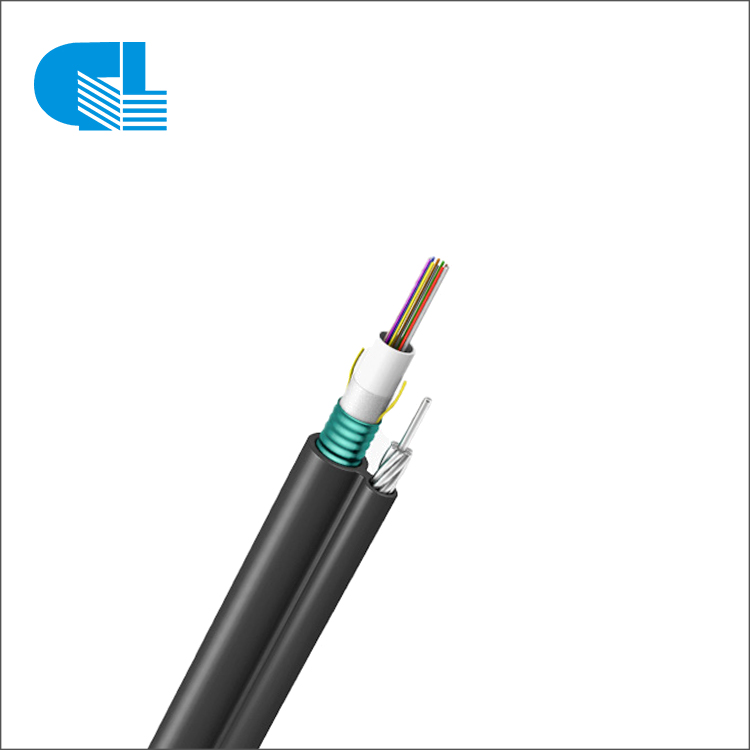

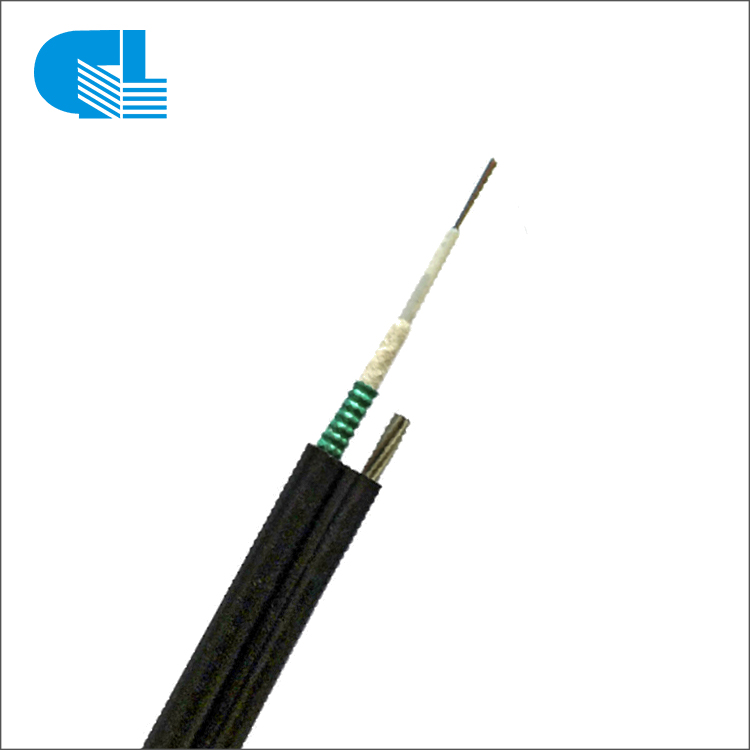

GYXTC8S Figure 8 Cable with Steel Tape

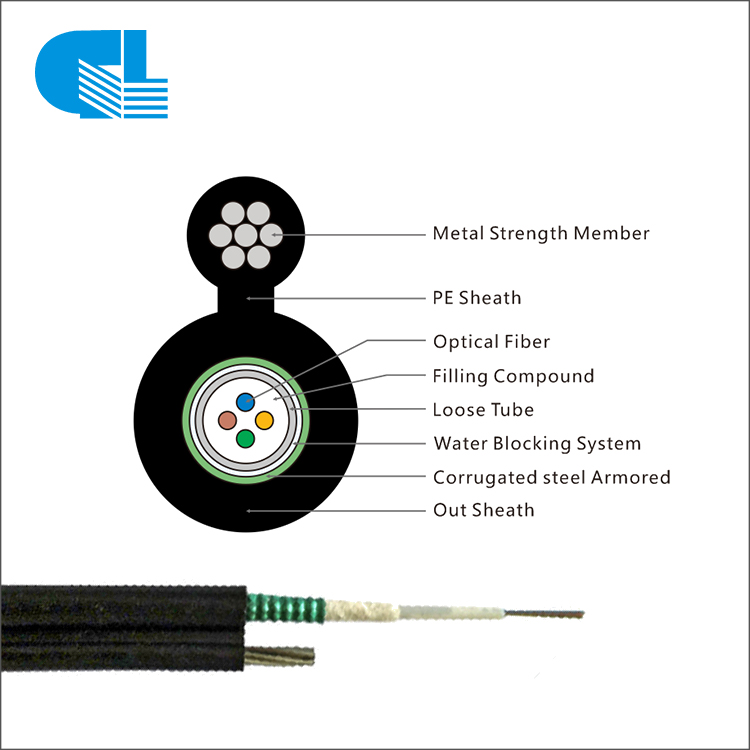

In the GYXTC8S cable,single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound.PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices of it.Then.this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure

Product Name: Figure 8 Cable with Steel Tape(GYXTC8S)

Brand Place of Origin: GL Hunan,China (Mainland)

Application: Self supporting Aerial

Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback
Application:

Self supporting Aerial

1,High performance optical network operating.

2,High speed optical routes in buildings (FTTX).

3,All types of fiber cables with different structures.

Temperature Range:

Operating :-40℃ to +70℃

Storage :-40℃ to +70℃

Characteristic:

1,Excellent mechanical and temperature performance.

2,Critical protection to fibers..

Standards:

Comply with stand YD/T 1155-2001 as well as IEC60794-1.

Write your message here and send it to us
Cable Type      (Increased by 2fibers) Fiber Count Max.Fibers in Tubes Cable Weight (kg/km) Cable Diameter (mm) Tensile StrengthLong/Short Term( N) Crush ResistanceLong/Short Term (N/100mm)
GYXTC8S2 ~ 8 2 ~ 8 8 117.0 8.1 x 16.9 2000/6000 300/1000
GYXTC8S10 ~ 12 10 ~ 12 12 121.0 8.3 x 17.0 2000/6000 300/1000
Noted:

1,Only a part of Figure-8 Optical cables are listed in the table. Cables with other specifications can be inquired.
2,Cables can be supplied with a range of single mode or multimode fibers.
3,Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: Guanglian or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 7 years;
d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM)

1-300

≥300

Est.Time(Days)

15

To be begotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
