GYF(X)BY Non-Metallic Aerial Flat Drop Cable

Flat fiber optic drop cable also called fiber optic GYFBY cable is designed to used on last mile installation routes to connect final users to FTTH or GPON line. PE Sheath FRP Flat Drop Cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.

Application: Indoor & Outdoor

Key Features:
1. Designed for indoor and outdoor FTTH deployment
2.High connecting usability, easy access to the fber core
3.Reinforced with 2 FRP rods, high tensile strength
4.Full dielectric and high flexibility design .
5.Fire redundant protect and UV radiation protection
6.Minimum dimension and weight
7. Fiber cores located in PBT loose tube

Send email to us Open Whats App

Description

Specification

Package & Tansportation

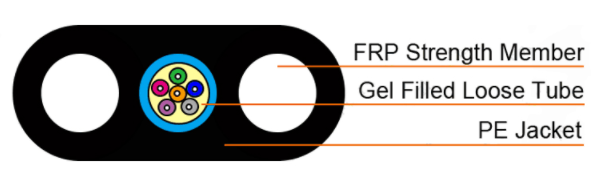

Structure Design:

Technical Parameters:

No.	Items	Unit	Specification
			G.652D
1	Mode Field Diameter	1310mm	μm	9.2+-0.4
		1550mm	μm	10.4+-0.5
2	Cladding Diameter		μm	10.4+-0.5
3	Cladding Non-Circularity		%	<=10
4	Core-Cladding Concentricity Error		μm	<=0.6
5	Coating Diameter		μm	245+-7
6	Coating Non-Circularity		%	<=6.0
7	Cladding-Coating Concentricity Error		μm	<=12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310mm	dB/km	<=0.36
		1550mm	dB/km	<=0.22

Cable Parameters:

Items		Specification
Fiber Count		24
Colored Coating Fiber	Dimension	250+-15μm
Colored Coating Fiber	Color	Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua.
Loose Tube	Dimension	2.7+-0.1mm
	Material	PBT
	Color	Natural
Strength Member	Dimension	2.0mm
	Material	FRP
	Color	Natural
Outer Jacket	Dimension	(8.5+-0.3)mmx(4.5+-0.2)mm
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics:

Items	Unite	Specification
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2000
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70

Note:1. Only a part of FTTH Drop Cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

How to choose an economical and practical cable drum packaging to drop cable?

Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its' advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.

Meanwhile, we have 15 years mature logistic team, 100% meet your good safety and delivery time.

Package of FTTH Drop Cable
No	Item	Index
No	Item	Outdoor Drop Cable	Indoor Drop Cable	Flat Drop Cable
1	Length and packaging	1000m/Plywood Reel	1000m/Plywood Reel	1000m/Plywood Reel
2	Plywood reel size	250×110×190mm	250×110×190mm	300×110×230mm
3	Carton size	260×260×210mm	260×260×210mm	360×360×240mm
4	Net weight	21 kg/km	8.0 kg/km	20 kg/km

Loading quantity suggestion
20'GP container	1KM/roll	600KM
20'GP container	2KM/roll	650KM
40'HQ container	1KM/roll	1100KM
40'HQ container	2KM/roll	1300KM

*The above is just a suggestion for container loading, please consult our sales department for the specific quantity.

Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: inquiry@gl-fibercable.com.

Write your message here and send it to us

Structure Design

Technical Parameters

No.	Items	Unit	Specification
			G.652D
1	Mode Field Diameter	1310mm	μm	9.2+-0.4
		1550mm	μm	10.4+-0.5
2	Cladding Diameter		μm	10.4+-0.5
3	Cladding Non-Circularity		%	<=10
4	Core-Cladding Concentricity Error		μm	<=0.6
5	Coating Diameter		μm	245+-7
6	Coating Non-Circularity		%	<=6.0
7	Cladding-Coating Concentricity Error		μm	<=12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310mm	dB/km	<=0.36
		1550mm	dB/km	<=0.22

Cable Parameters

Items		Specification
Fiber Count		24
Colored Coating Fiber	Dimension	250+-15μm
Colored Coating Fiber	Color	Blue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua.
Loose Tube	Dimension	2.7+-0.1mm
	Material	PBT
	Color	Natural
Strength Member	Dimension	2.0mm
	Material	FRP
	Color	Natural
Outer Jacket	Dimension	(8.5+-0.3)mmx(4.5+-0.2)mm
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics

Items	Unite	Specification
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2000
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70

Note:

1. Only a part of FTTH Drop Cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Packaging Details:
Packed by Plywood and Carton.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port: Shanghai/Guangzhou/Shenzhen

Lead Time:

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Package of FTTH Drop Cable
No	Item	Index
No	Item	Outdoor Drop Cable	Indoor Drop Cable	Flat Drop Cable
1	Length and packaging	1000m/Plywood Reel	1000m/Plywood Reel	1000m/Plywood Reel
2	Plywood reel size	250×110×190mm	250×110×190mm	300×110×230mm
3	Carton size	260×260×210mm	260×260×210mm	360×360×240mm
4	Net weight	21 kg/km	8.0 kg/km	20 kg/km
5	Gross weight	23 kg/Box	9.0 kg/Box	21.5 kg/Box

Package & Shipping:

How to choose an economical and practical cable drum packaging to drop cable? Especially in some countries with rainy weather like Ecuador and Venezuela, Professional FOC manufacturers recommend that you use the PVC inner drum to protect the FTTH Drop Cable. This drum is fixed to the reel by 4 screws , Its’ advantage is drums are not afraid of rains & the cable winding is not easy to loosen. The following are the construction pictures fed back by our end customers. After the installation is completed, the reel is still firm and intact.
