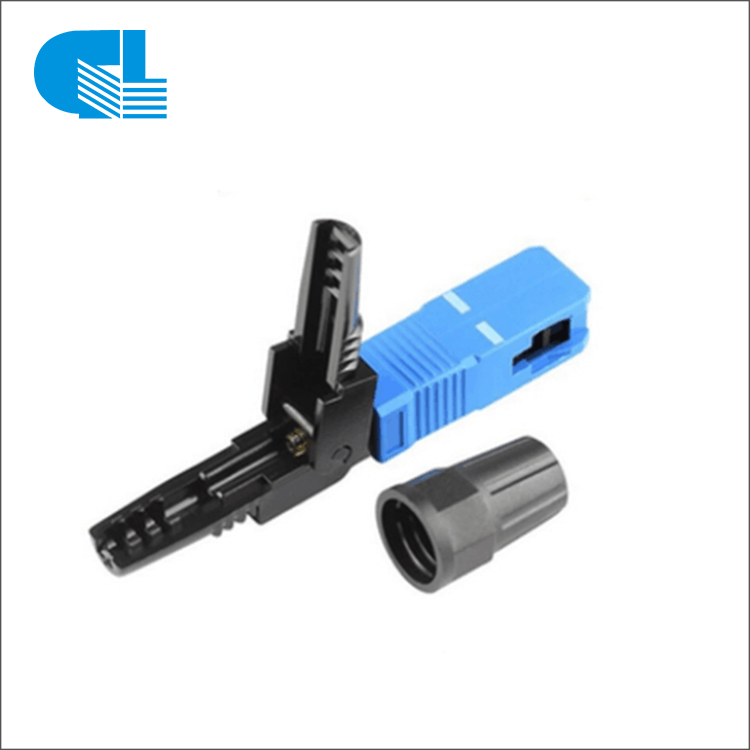

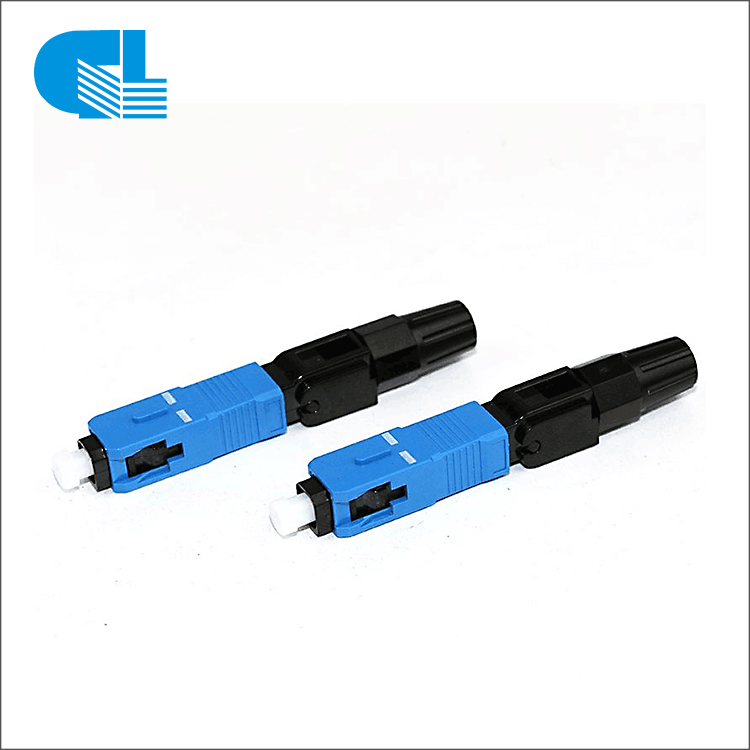

Fiber optical fast connector takes use of the latest generation of Rapid Ready-Terminal technology. After terminating, both the optical and mechanical performances reach the standard for patchcord and meet the demand for making patchcord on site by mechanical splicing.
Product Name:Adapter
Brand Place of Origin: GL Hunan,China (Mainland)
Provide OEM/ODM Services !
1，Field assemble; use few tool; easy to operate; only need less than one minute for installation.
2，The whole progress can be visualized. Optic fiber run in controlled range. Successful rate can reach the limit value 100%.,
3，Can make the patch cord at any length on site, and no need to adhesive and polish.,
4，No need to hot melt and save the power supplies. With excellent optical properties, it can be installed repeated over 10 times.
1，Applicable to the 0.9 tight boot and 2.0×3.0 drop cable.
2，The field assembling time <1.0 minute.
3，Tensile strength: 0.9 boot ≥15N; 2.0×3.0 cable ≥20N.
4，Working temperature: -40°C~+65°C.
5，Sufficiently tolerant the low temperature, high temperature, moist heat, salt fog, and also endures the test for vibration, drop, and mechanical durability.
6，Can be dropped from 3-5 m high. The index is stable after repeated 3 times.
Only a part of Adapters are listed here. We can depend on customer’s requirement to producing the different model Adapters.
We supply OEM&ODM Service. Contact Us Now !
E-Mail: [email protected]
WhatsApp:+86 18073118925 Skype: opticfiber.tim
| Item | FTT-FCP-FUP3x2 | FTT-FCP-SUP3x2 | FTT-FCP-LUP3x2 | FTT-FCP-TUP3x2 | |||
| Applicable Cable | 3.0mm, 2.0mm; 0.9mm; 0.25mm; 3.1×2.0 drop cable | ||||||
| Fiber Diameter | 125um | ||||||
| Coating Diameter | 250um | ||||||
| Fiber Mode | Single mode or multimode | ||||||
| Operating Time | ≤60S | ||||||
| Insertion Loss | ≤0.5dB(1310nm or 1550nm) | ||||||
| Return Loss | ≥45dB | ||||||
| Working Temperature | -40°C ~+70°C | ||||||
| Strength Tension | >30N | >20N | / | / | |||
We can depend on customer’s requirement to producing the different model Fast Connector.
We supply OEM&ODM Service.
In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.
GL Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach 1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
