96 Core Double HDPE Jackets Aerial ADSS Cable With Long Span 400M

ADSS Fiber Cable is loose tube stranded. The 250um bare fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of armaid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

GL’s ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

Model: GL Fiber Double Jacket ADSS Fiber Optic Cable;
Fiber Type: ITU G652D, G657A, OM1, OM2, OM3, OM4;
Fiber Count: 2-88 Core Is Available;
Span: 200M, 400M, 600M, Up to 1000M;
Standard: IEC 60794-4、 IEC 60793、TIA/EIA 598 A;

Open Whats App
Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback

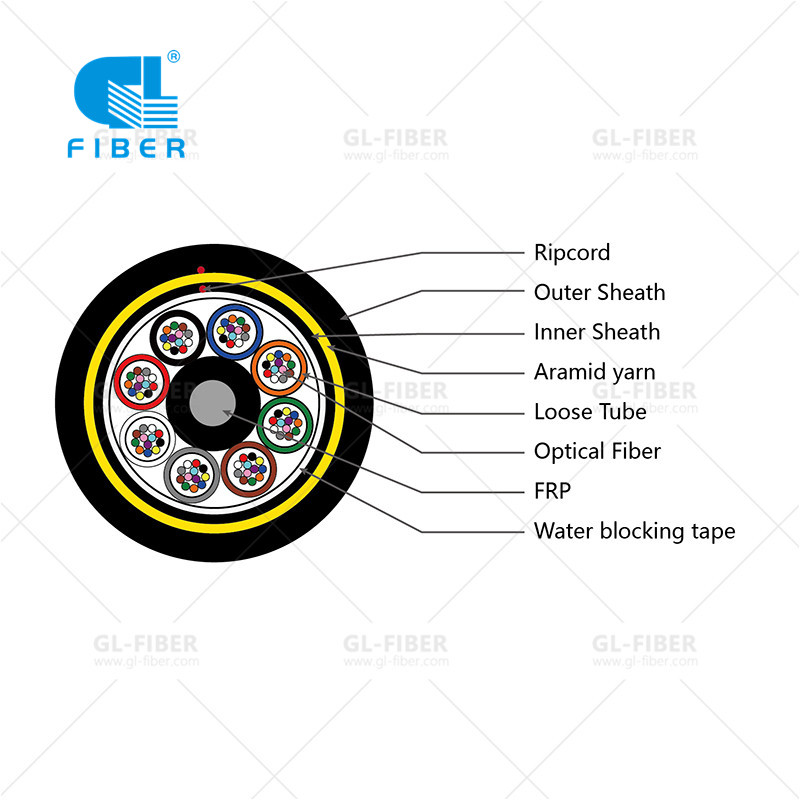

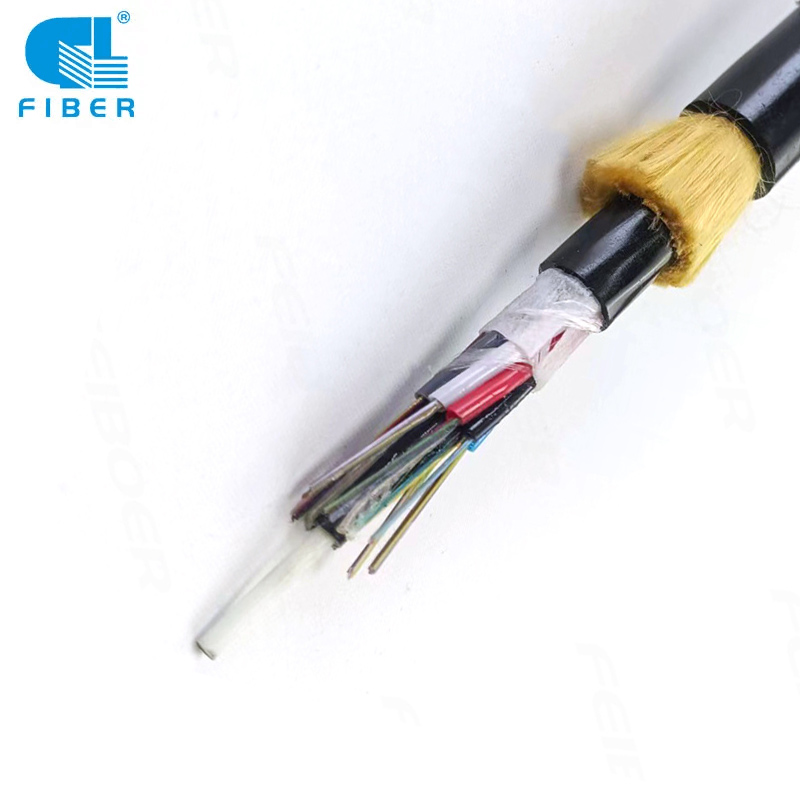

Structure Design:

https://www.gl-fiber.com/96core-aerial-%E2%80%A6-for-400m-span.html

Main Features:

1. Two Jacket and stranded loose tube design . Stable performance and compatibility with all common fiber types;
2. Track -Resistant outer jacket available for the high voltage ( ≥35KV)
3. Gel-Filled buffer tubes are S-Z stranded
4. Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain Performance
5. Fiber counts from 6 to 288fibers
6. Span up to 1000meter

Standards:

GL Fiber's ADSS Cable complies with IEC 60794-4, IEC 60793, TIA/EIA 598 A standards.

Advantages of GL ADSS Optical Fiber Cable:

1.Good aramid yarn have excellent tensile performance;
2.Fast delivery, 200km ADSS cable regular production time about 10 days;
3.Can using glass yarn instead of aramid to anti rodent.

Colors -12 Chromatography：

Colors -12 Chromatography

Fiber Optic Characteristics:

  G.652 G.655 50/125μm 62.5/125μm
Attenuation
           (+20℃)		 @850nm     ≤3.0    dB/km ≤3.0    dB/km
@1300nm     ≤1.0    dB/km ≤1.0    dB/km
@1310nm ≤0.00    dB/km ≤0.00dB/km
@1550nm ≤0.00    dB/km ≤0.00dB/km
Bandwidth（Class A）  @850nm     ≥500    MHz·km ≥200    MHz·km
@1300nm     ≥500    MHz·km ≥500    MHz·km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

Cable Parameter:

Part code ADSS-DJ-400M-96F
Number of Fibers Unit 96Core
Number of fiber in tube Nos 12
Number of loose tube Nos 8
Central  strength member Material FRP
Loose  tube Material PBT
peripheral strength member Material Aramid yarn
Water block Material Water swellable tape and water block yarn
Inner sheath Material PE
Outer sheath Material HDPE
Cable nominal  Diameter MM ±0.2 12.6
Cable nominal weight Kg/Km ±5 109
Max allowable tension Load N 6900
Span   400m span
Max. crush resistance N 2000 (Short term) / 1000 (Long term)
Min. bending radius   At full load 20 x Cable OD (including  poles) At no load 15 x Cable OD
Temperature range   Installation -0 -> +50  Operation -10 -> +70

The excellent quality and service of  GL's ADSS cable have won the praise of a large number of customers at home and abroad, and the products are exported to many countries and regions such as South and North America, Europe, Asia and UEA. We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of optical fiber ADSS cable is 2, 6, 12, 24, 48 cores, up to 288 cores.

Remarks:
Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Span or tensile strength
D, weather conditions

How to Ensure the Quality and Performance of Your Fiber Optic Cable?

We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , GL also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).

Quality Control - Test Equipment and Standard:

https://www.gl-fiber.com/products/Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].

Write your message here and send it to us

All Dielectric Self-Supporting (ADSS) Cable Double Sheath is a type of fiber optic cable designed for aerial installations, typically used for telecommunication and data transmission applications.

The ADSS cable is constructed using a central core made of optical fibers surrounded by layers of protective materials. The cable is designed to be self-supporting, meaning that it does not require an external support structure such as a messenger wire or a metallic cable to hold it in place. Instead, the ADSS cable is supported by the strength of its own structure, which makes it ideal for use in long distance installations.

The double sheath design of the ADSS cable provides an extra layer of protection against environmental factors such as UV radiation, moisture, and temperature variations. The outer sheath is usually made of a high-density polyethylene (HDPE) material, which provides excellent resistance to weathering and mechanical damage. The inner sheath is made of a low-friction material such as nylon, which helps to reduce the friction between the cable and the central core during installation.

GL Fiber’s double jackets ADSS fiber optic cable complies with standard IEC 60794-4、 IEC 60793、TIA/EIA 598 A.

Fiber Optic Characteristics:

  G.652 G.655 50/125μm 62.5/125μm
Attenuation
           (+20℃)		 @850nm     ≤3.0    dB/km ≤3.0    dB/km
@1300nm     ≤1.0    dB/km ≤1.0    dB/km
@1310nm ≤0.00    dB/km ≤0.00dB/km
@1550nm ≤0.00    dB/km ≤0.00dB/km
Bandwidth（Class A）  @850nm     ≥500    MHz·km ≥200    MHz·km
@1300nm     ≥500    MHz·km ≥500    MHz·km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

2-144 Core Double Jackets ADSS Cable Specifications:

No. of cable
/
6~30
32~60
62~72
96
144
Design
(Strength Member+Tube&Filler)
/
1+5
1+5
1+6
1+8
1+12
Fiber type
/
G.652D
Central Strength Member
Material
mm
FRP
Diameter
(±0.05mm)
1.5
1.5
2.0
2.0
2.0
Loose Tube
Material
mm
PBT
Diameter
(±0.05mm)
1.8
2.0
2.0
2.0
201
Thickness
(±0.03mm)
0.32
0.35
0.35
0.35
0.35
MAX.NO./per
6
12
12
12
12
Water Blocking Layer
Material
/
Flooding Compound
Inner Sheath
Material
mm
PE
Thickness
0.9（nominal）
colour
black.
Additional Strength Member
Material
/
Aramid Yarn
Outer Sheath
Material
mm
PE
Thickness
1.8（nominal）
colour
black.
Cable Diameter(±0.2mm)
mm
10.6
11.1
11.8
13.6
16.5
Cable Weight(±10.0kg/km)
kg/km
95
105
118
130
155
Attenuation coefficient
1310nm
dB/km
≤0.36
1550nm
≤0.22
Cable breaking strength(RTS)
kn
≥5
Working Tension (MAT)
Kn
≥2
Wind velocity
m/s
30
Icing
mm
5
Span
M
100
Crush Resistance
Short Term
N/100mm
≥2200
Long Term
≥1100
Min. bending radius
Without Tension
mm
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
（℃）
Installation
℃
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

Are you Looking for ideal All Dielectric Self-Supporting ADSS Cable Double Sheath Manufacturer & supplier ? gl-fiber.com have a wide selection at good prices to help you get creative. All the All Dielectric Self-Supporting ADSS Cable Double Sheath are quality guaranteed. We are China Origin Factory of All Dielectric Self-Supporting ADSS Cable Double Sheath. If you have any question, please feel free to contact us!

https://www.gl-fiber.com/products-adss-cable/

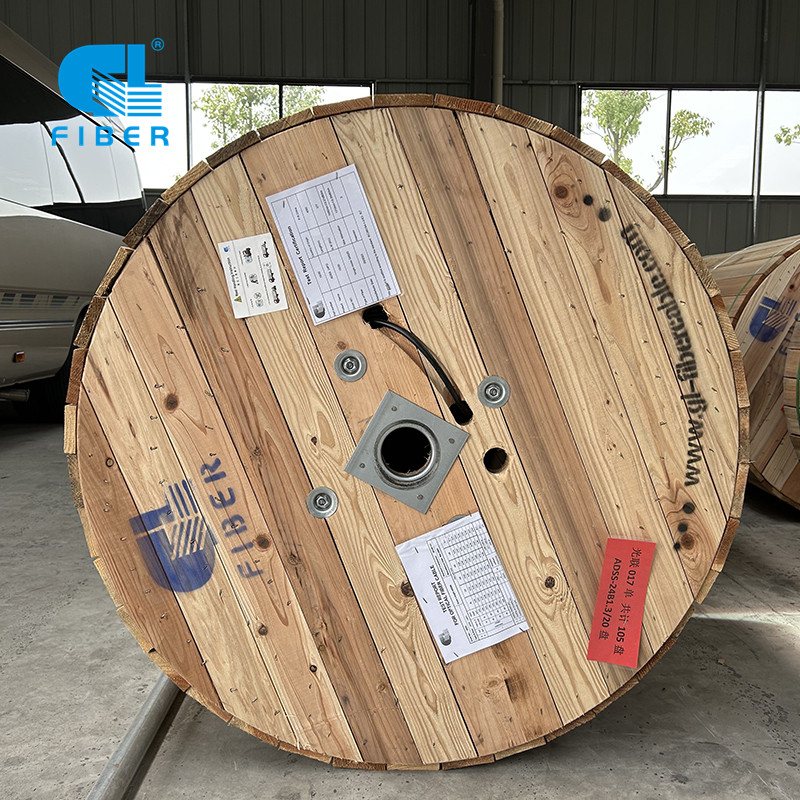

Packing Material:
