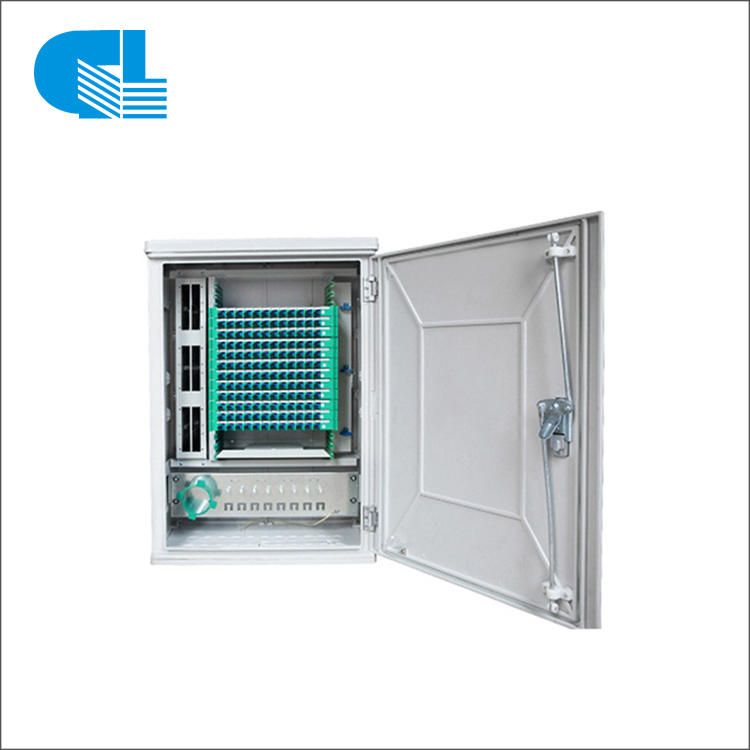

144 core Optical Cable Cross Connecting Cabinet

Fiber Optic Cross Connect Cabinets is used as a equipment for outside incoming network trunk cable and wiring nodes to achieve outdoor fiber optic cable wiring devices.

Installation:

Floor standing

Wall Mounting

Product Name:Cabinet

Brand Place of Origin: GL Hunan,China (Mainland)

OEM Services is Available !

Open Whats App
Description
Specification
Package & Shipping
Factory Show
Leave Your Feedback
Applications:

Local Area Network； CATV Network； FTTx System/ FTTH Project； Wide Area Network.

Features:

1，Hight intensity and anti-erosion performance；

2，Able to counter abrupt climate change and extreme environment；

3，Capacity can be flexibly customized as required；

4，Installation is quick and convenient；

5，Built-in direct splice unit is capable for providing direct connection function；

6，Perfect design of fiber wiring routing could facilitate management and maintenance of fibers；

7，With secure and reliable fastening and grounding protection devices for the optic fiber；

8，Applicable to strap-shaped and non-strap shaped fibers.

Notes:

Only a part of Cabinets are listed here. We can depend on customer’s requirement to producing the different model Cabinets.

OEM Services is Available !    Contact Us Now !

E-Mail: [email protected]

WhatsApp:+86 18073118925             Skype: opticfiber.tim

Write your message here and send it to us

Specification

Parameters:
Items Specifications
Material SMC, Cold-rolled steel or stainless steel
Capacity 144Core

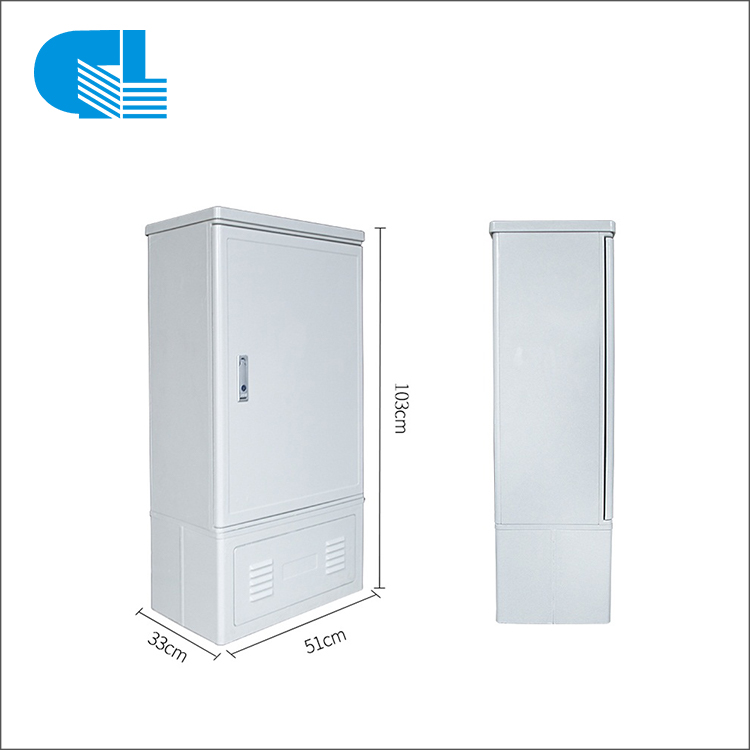

Exterior Dimension (H*W*D ,mm) Cabinet:770*550*310Pedestal : 265*555*310
Interior Dimension (H*W*D ,mm) 725*520*290
Door type Single-sided front door

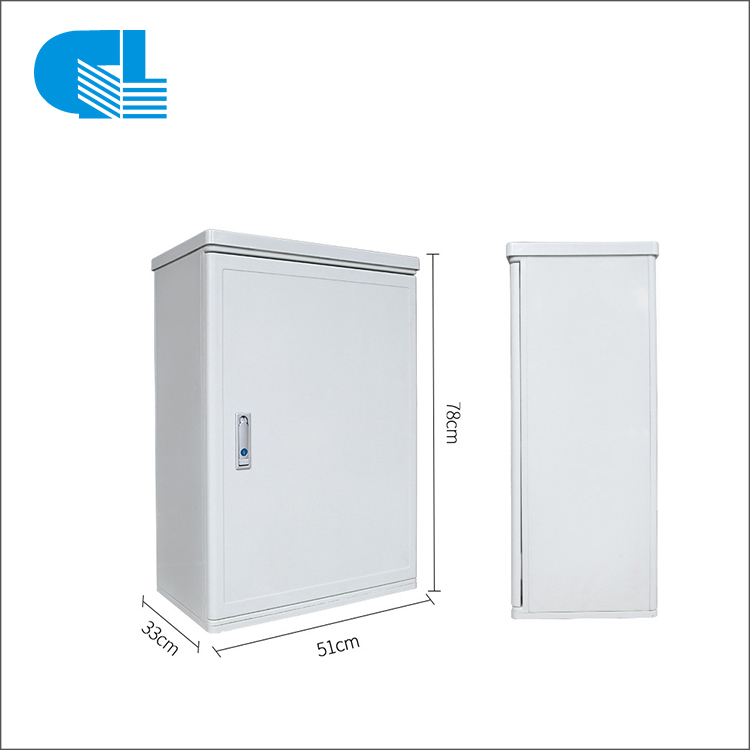

Installation Floor standing/Wall Mounting
Optional Accessories Splice tray , Pigtail , Splitter , Adapter etc.
Nominal work wave-length 850nm,1310nm,1550nm
Operating temperature -5°C~+40°C
Storage temperature -40°C~+70°C
Relative humidity ≤85%(30°C)
Atmospheric pressure 70~106KPa
Insertion loss ≤0.2dB
Return loss ≥45dB(PC),≥50dB(UPC),≥60dB(APC)
Isolation resistance ≥1000MΩ/500V(DC)
Durability >1000times
Anti-voltage strength ≥3000V(DC)/1min



Product Fiber Distribution Cross Connection Cabinet
Material Stainless Steel /SMC
Fiber Cores 96-1152 cores
Application FTTH FTTX FTTB Network
Color Gray
Installation Wall /Floor Mounting
Connector Type SC FC LC
Working Temperature -5 to 40℃(Indoor )-40to 60℃(outdoor)
Notes:

We can depend on customer’s requirement to producing the different model Cabinets.

We supply OEM&ODM service.
