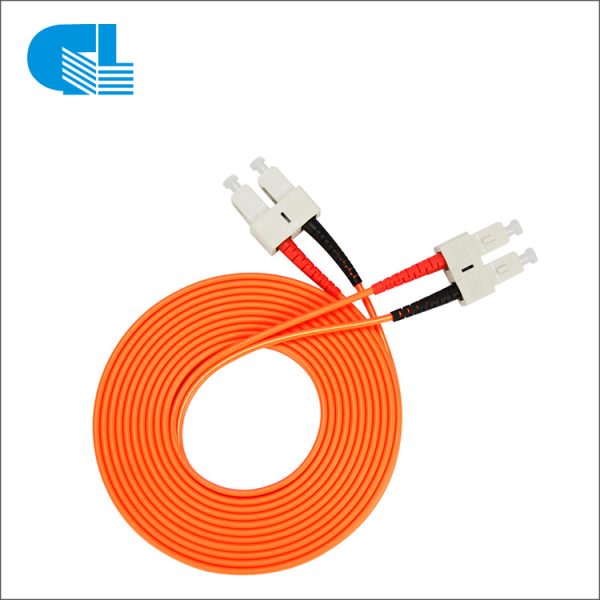

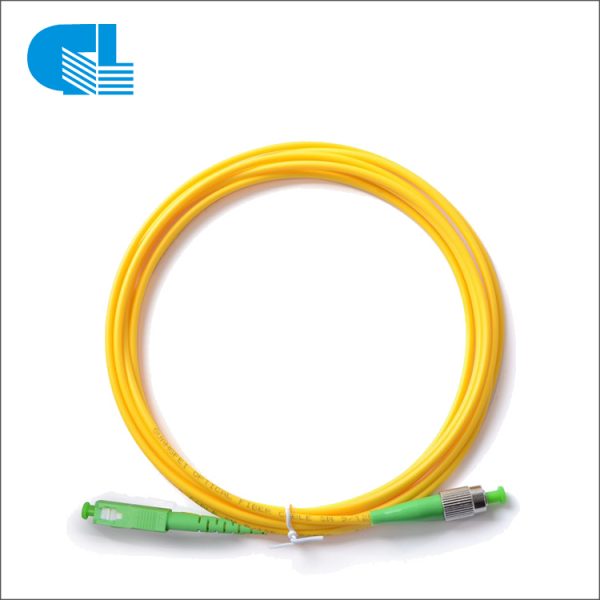

A patch cord is optical cable used to connect (“patch-in”) one electronic or optical device to another for signal routing.Patch cord, Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard
Application
Characteristic
Application
CATV、Active device termination、Telecommunication networks、Metro、Local Area Networks(LANs)、Data Processing networks、Test Equipment、Premise installations.、Wide Area Networks(WANs)
Feature：
Low insertion loss and back reflection loss
Good echangeability Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
Technical Parameter
|
Item |
Single Mode |
Multimode |
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
|
Return Loss |
≥50dB(PC); ≥65dB(APC) |
≥35dB （PC） |
|
Repeat-ability |
≤0.1 |
≤0.1 |
|
Durability |
≤0.2dB typical change 1000matings |
≤0.2dB typical change 1000matings |
|
Interchangeability |
≤0.2dB |
850nm,1300nm |
|
Operating Temperature |
- 40℃ to +85℃ |
- 40℃ to +85℃ |
| Ordering Options | |

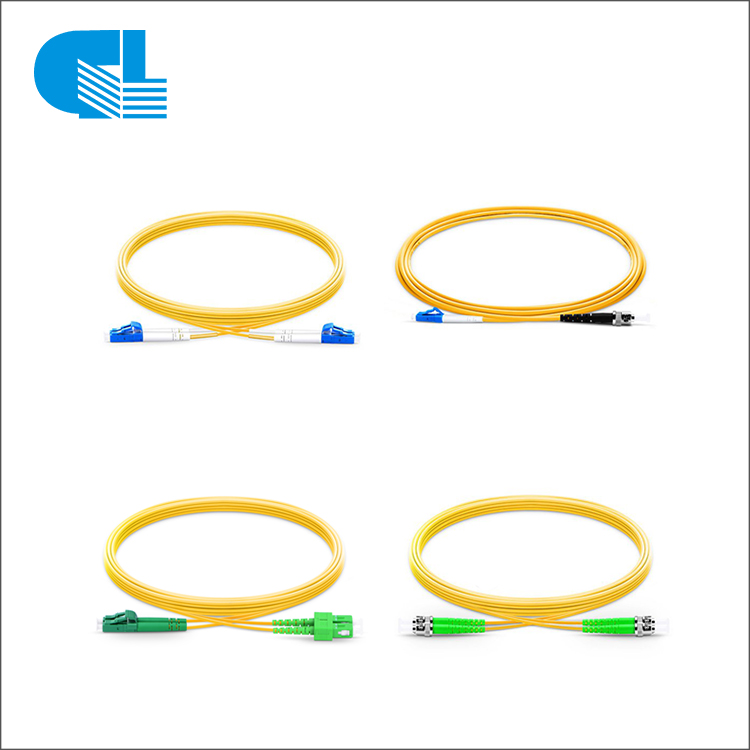

| Connector | SC, FC, ST, LC, E2000, DIN, MU,MTRJ, etc. |
| Finish | UPC, APC,PC; for MTRJ, Female, Male |
| Cable Type | Simplex, Duplex Straight, Duplex Reverse |
| Fiber | SM(G652), 62.5/125um, 50/125um, OM2, OM3,SM(G655) |
| Cable Jacket | Riser, Plenum, LSZH |
| Cable Diameter | Ø3.0mm, Ø2.0mm, Ø0.9mm, etc. |
| Cable Length | Length in meter |
Notes:
Only a part of Joint Box/Splice Closure/Joint Closure are listed here. We can depend on customer’s requirement to producing the different model Joint Box/Splice Closure/Joint Closure.
We supply OEM&ODM Service.
