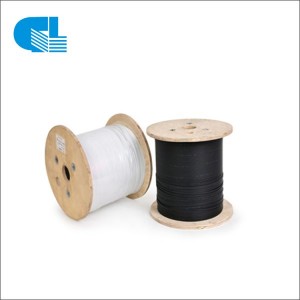

Single Mode 2 Core LSZH G657D FTTH Drop Cable

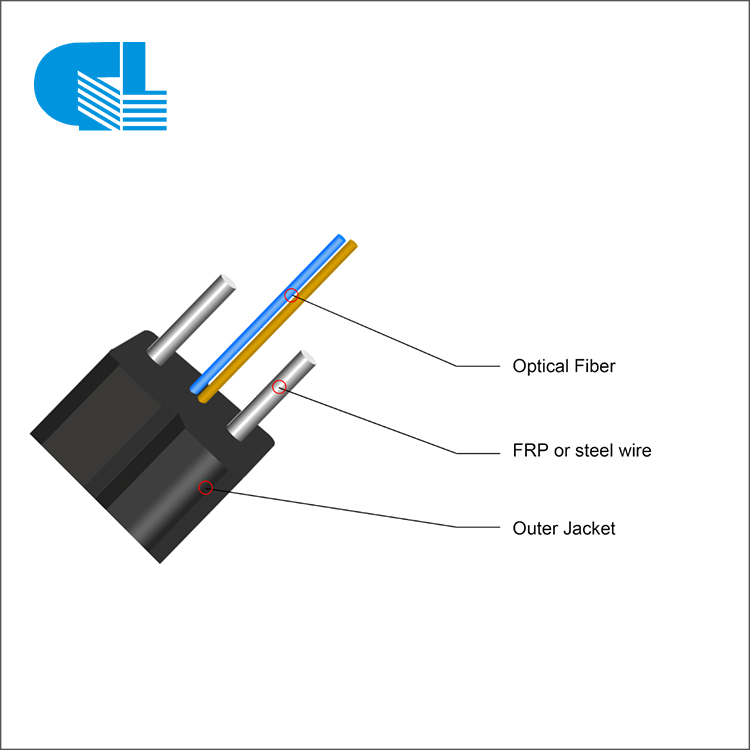

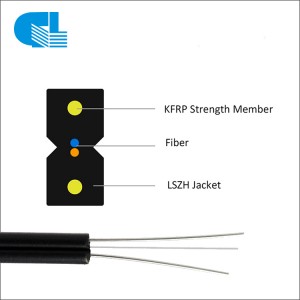

FTTH indoor drop fiber cables are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced Steel Wire/FRP/KFRP as the strength member, and surrounded with the LSZH jacket. Indoor use FTTH drop fiber cables have the same function of the common indoor fiber cables, but it does have some special features. FTTH indoor drop fiber cables are small diameter, water-resistant, soft and bendable, easy to deploy and maintenance. Special indoor FTTH drop fiber cables will also meet the requirement of thunder-proof, anti-rodent or waterproof.

  • Product Name: Single Mode 2 Core LSZH G657D FTTH Drop Cable
  • Brand Place of Origin: GL Hunan,China (Mainland)
  • Provide OEM/ODM Services !:
  • Categories: All Products, FTTH Drop Cable

    Description

    Specification

    Package & Tansportation

    Application:

    Indoor
    1,All types of fiber cables with different structures.
    2,High performance optical network operating.
    3,High speed optical routes in buildings (FTTX).

    Temperature Range:

    Operating :-20℃ to 60℃
    Storage :-20℃ to 60℃

    Characteristic:

    1,Special flexible cable, to provide greater bandwidth and enhance network transmission characteristics;
    2,Two parallel FRP make the cable have good compression performance, protect the optical cable;
    3,Cable structure is simple, light weight, practicality;
    4,Unique groove design, easy to peel, easy to pick, simplify installation and maintenance;
    5,Low-smoke halogen-free flame retardant sheath, environmental protection.

    Standards:

    Comply with standard YD/T1997-2009

    Note:

    1,Only a part of FTTH Drop Cable are listed in the table. More can be produce as required .

    2,Cables can be supplied with a range of single mode or multimode fibers.

    3,Specially designed Cable structure is available on request.
