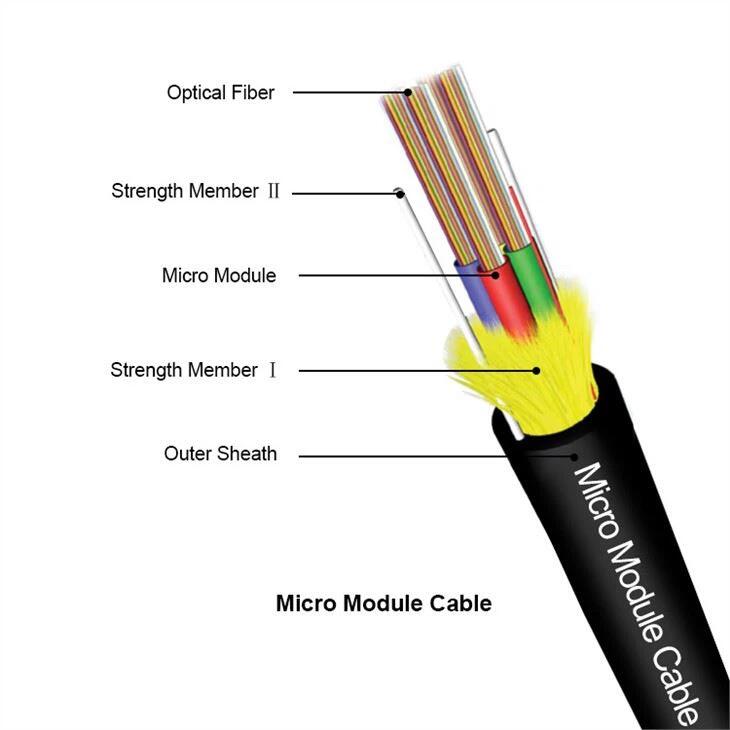

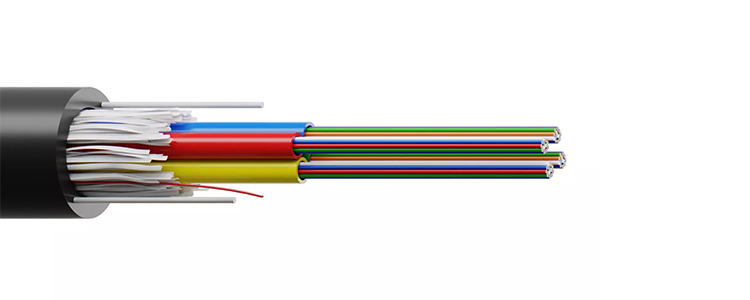

GL Fiber markets the aerial micromodule cable for indoor/outdoor ducts, that combines two mounting systems; aerial and in duct for spans up to 60 m. Cable’s concept allows time and costs savings by adapting to the type of mounting. Available from 6 to 96 fibres.
Application:
Micro Module Cable Features:
The Micro Module Cable is a highly data-efficient and flexible USB cable. It is designed to provide a reliable and convenient charging and data syncing experience for various electronic gadgets and devices that require Micro USB connectivity.
Here are some of the key features:
1. Compact and Flexible - With its miniature size and flexible body, the Micro Module Cable can be bent and twisted without damaging the cable or the device it is connected to. This feature ensures a long-lasting and durable performance and easy storage.
2. High-Quality Charging and Syncing - The Micro Module Cable is made with high-quality materials that ensure fast charging and data syncing capabilities. It is compatible with most gadgets that require Micro USB connection, including smartphones, tablets, cameras, and other electronic devices.
3. Safety and Security - At our manufacturing facility, we prioritize the safety and security of our customers. The Micro Module Cable is made with high-grade materials that are certified and tested to ensure they are safe to use and that they meet industry standards.
Benefits• Ideal for ducts in outdoor environments.
• Aerial mounting with up to 60m span
• For backbone communication networks
• FttX
• Communication backbones or local networks
• Flexible and malleable
• Easy access to fibres
• Easy stripping
| Fibers | Buffer (µm) | Attenuation (dB/Km) | |||
|---|---|---|---|---|---|
| SM | |||||
| 1310nm | 1383nm | 1550nm | 1625nm | ||
| G652.D | 250 | ≤0.40 | — | ≤0.30 | — |
| G657.A2 | 250 | ≤0.40 | — | ≤0.30 | — |
| Fiber | Fiber count | Fibers per tube | Outside diameter [mm] | Weight [Kg/Km] | Tensile [N] |
|---|---|---|---|---|---|
| SM G652.D G657.A2 | 6 | 6 | 6.2±0.5 | 28±5% | 800 |
| 12 | 12 | 6.8±0.5 | 33±5% | 800 | |
| 24 | 12 | 8.0±0.5 | 43±5% | 1200 | |
| 36 | 12 | 8.2±0.5 | 48±5% | 1200 | |
| 48 | 12 | 8.7±0.5 | 53±5% | 2000 | |
| 72 | 12 | 9.8±0.5 | 69±5% | 2200 | |
| 96 | 12 | 10.9±0.5% | 84±5% | 2500 |
Operation temperature [ᴼC]
-40~+70 °C
Note: Values for reference purposes only
Standards
• IEC 60794-1-2
• ITU-T G.652.D
• ITU-T G.657.A2
