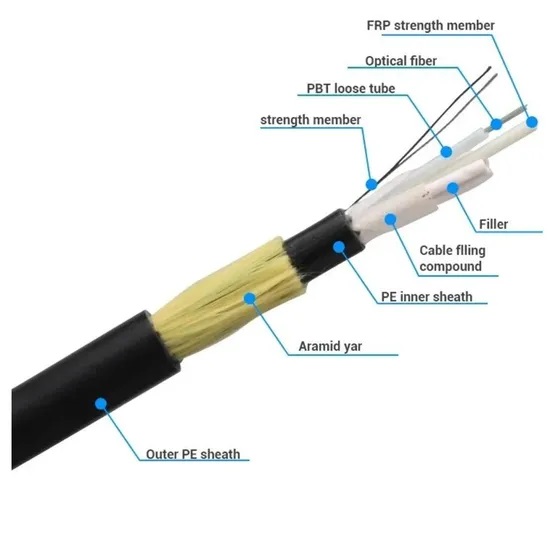

GL FIBER offers HDPE-sheathed All-Dielectric Self-Supporting (ADSS) fiber optic cables with aramid yarn reinforcement, available in configurations of 12, 24, 48, and 96 cores. These cables are designed for aerial installations, eliminating the need for additional support structures.
Key Features:
☆Non-Metallic Structure: Ensures excellent insulation and protection against lightning.
☆Aramid Yarn Strength Member: Provides high tensile strength, allowing the cable to support itself over long spans.
☆HDPE Outer Jacket: Offers resistance to environmental factors such as UV radiation and moisture.
☆Loose Tube Design: Each tube is filled with gel to prevent water ingress, enhancing durability.
Technical Specifications:
1. Fiber Types: Single-mode G652D, G657A1, G657A2.
2. Fiber Count Options: 2 to 144 fibers.
3. Jacket Material: Polyethylene (PE) or Anti-Tracking (AT) for high-voltage environments.
4. Operating Temperature Range: -40°C to +70°C.
5. Compliance: Meets IEEE 1222-2004 and IEC 60794-1 standards.
ADSS Cable Specifications:
1. ADSS single jacket
| fiber count | structure | fiber per tube | losse tube diameter(MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 90 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 95 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 98 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 108 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 135 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
2. ADSS double jacket
| fiber count | structure | fiber per tube | losse tube diameter(MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
|
| PE Jacket | AT Jacket | |||||||
| 4 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+5 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+5 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+5 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+5 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications, pls contact our salers.
These cables are suitable for self-supporting aerial installations in both distribution and transmission environments, offering a reliable solution for long-distance communication networks. The use of imported aramid yarn ensures uniform stress distribution and excellent stress-strain performance.
For more detailed information, including specific technical parameters and customization options, please visit GL FIBER's official product page: https://www.gl-fiber.com/products-adss-cable.
