As global demand for reliable, high-performance fiber optic infrastructure grows, understanding the differences between ASU and ADSS cables becomes critical for telecom operators, power utilities, and network planners. At GL-FIBER, a leading optical cable manufacturer with 21 years of expertise, we specialize in both ASU and ADSS cables, offering tailored solutions for diverse applications. This article compares their technical features, use cases, and how our production capabilities ensure unmatched quality and delivery efficiency.
1. Technical Comparison: ASU vs ADSS Cables
A. ADSS (All-Dielectric Self-Supporting) Cables
ADSS cables are designed for high-voltage power transmission environments and feature a fully non-metallic structure, making them ideal for lightning-prone areas and harsh weather conditions. Key attributes include:
Structure: Layer-stranded loose tubes with FRP (Fiber-Reinforced Plastic) central strength member and aramid yarn reinforcement for tensile strength up to 100 kN.
Anti-Corrosion: AT (Anti-Tracking) sheath for >110 kV environments to prevent electrical arcing and surface degradation.
Applications: Long-span installations (up to 1,500+ meters), 5G fronthaul, and power grid communications.

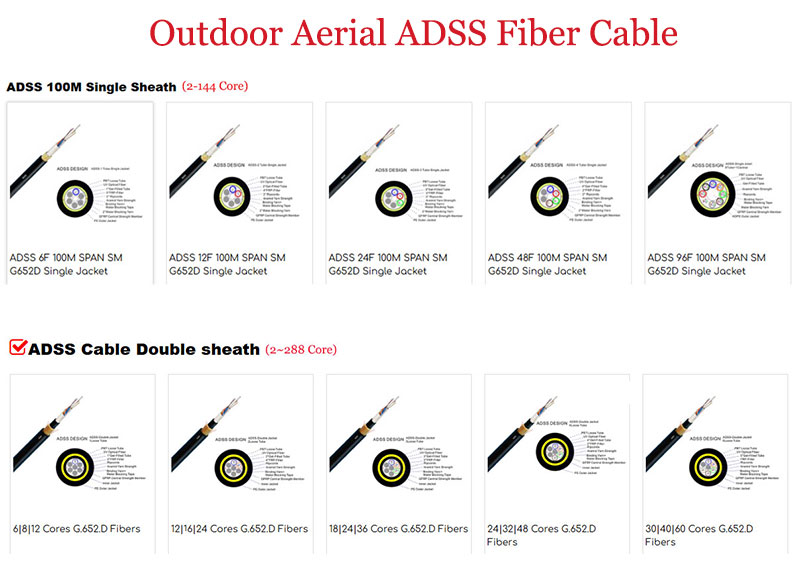

Explore our ADSS product line: ADSS Cable Solutions
B. ASU (All-Self-Supporting Utility) Cables
ASU cables are a compact, lightweight variant optimized for urban and short-span deployments. Key features:
- Miniaturized Design: Smaller diameter (10–14 mm) and reduced weight (50–130 kg/km) for easy installation in congested areas.
- Flexibility: Available in 2–24 cores, suitable for FTTH, CATV, and enterprise networks.
- Cost Efficiency: Lower material and installation costs compared to traditional ADSS, ideal for ≤200-meter spans.
Discover our ASU offerings: ASU Cable Solutions
- Feature ADSS Cable ASU Cable
- Max Span 1,000+ meters 200 meters
- Core Capacity 4–96 cores 2–24 cores
- Sheath Material PE/AT (Anti-Tracking) PE/FRP
- Key Application High-voltage power lines Urban FTTH/CATV networks
2. Application Scenarios
When to Choose ADSS Cables
- Power Grids: Co-located with 220 kV+ transmission lines for real-time grid monitoring.
- Rural Broadband: Large spans across valleys or rivers without intermediate supports.
- 5G Infrastructure: Supports high-density small-cell networks with EMI immunity.
When to Choose ASU Cables
- Urban Deployments: Compact design for dense urban corridors and building-to-building links .
- Cost-Sensitive Projects: Budget-friendly solution for FTTH and last-mile connectivity .
- Quick Installations: Pre-terminated options reduce deployment time by 40% .
3. Why GL-FIBER Stands Out
A. Manufacturing Excellence
- 21 Years of Expertise: Proven track record in ADSS/ASU production for global clients.
- High Capacity: 1,200 km/day output ensures rapid order fulfillment.
- Customization: Adjust core counts (2–96), sheath materials (PE/AT/FRP), and span lengths 910.
B. Rigorous Quality Assurance
- ISO 9001:2015 Certified: Compliant with IEC 60794-4, TIA/EIA-598-A, and GR-20 standards 38.
- Pre-Shipment Testing: 100% OTDR, tensile strength, and bend-radius validation 3.
- C. Competitive Advantages
- Fast Delivery: 15–30 days lead time for bulk orders.
- 5-Year Warranty: Industry-leading durability.
4. Future-Proof Your Network
With the rise of smart grids and 5G, selecting the right cable type is crucial:
ADSS: Ideal for energy utilities prioritizing long-term reliability and hybrid power/communication networks.
ASU: Perfect for ISPs and urban planners seeking scalability and rapid ROI.
Conclusion
Whether deploying across mountain ranges or city streets, GL-FIBER delivers precision-engineered ADSS and ASU cables tailored to your needs. Backed by ISO-certified production and 21 years of innovation, we empower networks worldwide with speed, durability, and cost efficiency.
Request a quote or sample today！
