6/12/24/36/48/72 Core ADSS Fiber Cable Technical Parameters

GL Fiber provides for hardware fittings for installation with ADSS fiber cable supporting on the pole. The cable inside the multi-loose tube filled with a water-resistant filling compound or design for water blocked with water blocking material inside the cable. The cable high is tensile by aramid yarns and FRP strength member rod inside. Outer sheath made from HDPE. Of course, there are many specifications of ADSS fiber cables. Let's take a brief look at the ADSS cable of 120m span. The following are the specific parameter details:

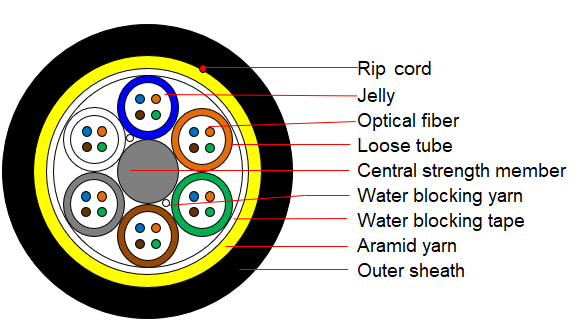

1. Cable Section Design:

2. Cable Specification

2.1 Introduction
Loose tube construction, tubes jelly filled, elements (tubes and filler rods) laid up around non-metallic central strength member, polyester yarns used to bind the cable core, water blocking tape wrapped the cable core, aramid yarns reinforced and PE outer sheath.
2.2 Fiber color code
Fiber color in each tube starts from No. 1 Blue.
1 2 3 4
Blue Orange Green Brown
2.3 Color codes for loose tube
Tube color starts from No. 1 Blue.
1 2 3 4 5 6
Blue Orange Green Brown Gray White
2.4 Cable structure and parameter
SN Item Unit Value
1 No. of fibers count 6/12/24
2 No. of fibers per tube count 4
3 No. of elements count 6
4 Thickness of outer sheath(nom.) mm 1.7
5 Cable diameter（±5%） mm 10.8
6 Cable weight（±10%） kg/km 85
7 Maximum allowable tension N 3000
8 Short term crush N/100mm 1000
