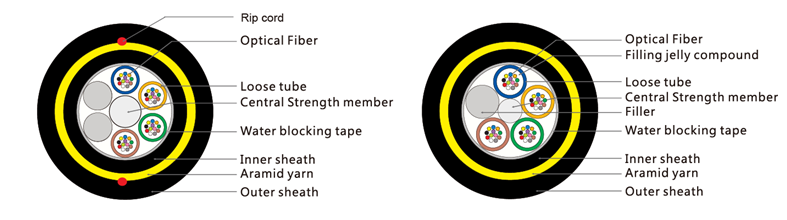

48 Core Fiber Optic ADSS Cable, this optical cable uses 6 loose tubes(or partial gasket for packing) to wind around the FRP and become the a complete round cable core, which is stranded of certain number of Kevlar with potentiation after being covered with PE internal sheath. Finally, the PE external sheath will be squeezed. The loose tube is made of the materials with great temperature properties. Several single mode or multi mode optical fiber (2-8 core) of a proper extra length and the oil jelly used for moistureproof optical fiber are put into the tube. The slits of the cable core are fulfilled with water-blocking compound.
Features:
* It is applicable for the transmission wavelength 1310mm and 1550mm.
* The biggest advantage of ADSS optical cable is that the cable doesn't need the suspender by taking the advantage of the existing pole.
* It is applicable for the different span form 50-1000M, it mainly uses Kevlar as the strengthening device, has good tensile strength, bullet-proof performance and good performance in high and low temperature.
* 48 Core Fiber Optic ADSS Cable design and experiment can comply with the IEEEP1222.
Electrical
Corona effect
Dry-Band arcing
Space potential effect
Mechanical
Span length and sag
Tension on cables
Environmental
Wind velocity and Aeolian vibration
Sheath composition for UV resistance (UV from the sun)
Pollution & temperature
48 Core ADSS Fiber & Cable Specification:
Max. allow able working tension |
Break strength | Year average working tension | Weight (Kg/Km) | Diameter (mm) | Operation temperature (℃) | |
PE sheath | AT sheath | |||||
3.0 | 7.5 | 1.88 | 115 | 123 | 11.9 | -40~+70 |
4.0 | 10.0 | 2.5 | 118 | 127 | 12.1 | -40~+70 |
5.0 | 12.5 | 3.13 | 120 | 130 | 12.2 | -40~+70 |
6.0 | 15.0 | 3.75 | 123 | 132 | 12.3 | -40~+70 |
7.0 | 17.5 | 4.38 | 126 | 135 | 12.5 | -40~+70 |
8.0 | 20.0 | 5.0 | 128 | 137 | 12.6 | -40~+70 |
9.0 | 22.5 | 5.63 | 131 | 140 | 12.7 | -40~+70 |
10.0 | 25.0 | 6.25 | 134 | 143 | 12.9 | -40~+70 |
11.0 | 27.5 | 6.88 | 136 | 145 | 13.0 | -40~+70 |
12.0 | 30.0 | 7.5 | 138 | 148 | 13.1 | -40~+70 |
13.0 | 32.5 | 8.13 | 142 | 151 | 13.3 | -40~+70 |
14.0 | 35.0 | 8.75 | 144 | 154 | 13.4 | -40~+70 |
15.0 | 37.5 | 9.38 | 146 | 156 | 13.5 | -40~+70 |
16.0 | 40.0 | 10.0 | 149 | 159 | 13.6 | -40~+70 |
18.0 | 42.5 | 10.63 | 154 | 164 | 13.8 | -40~+70 |
20.0 | 45.0 | 11.25 | 159 | 169 | 14.1 | -40~+70 |
