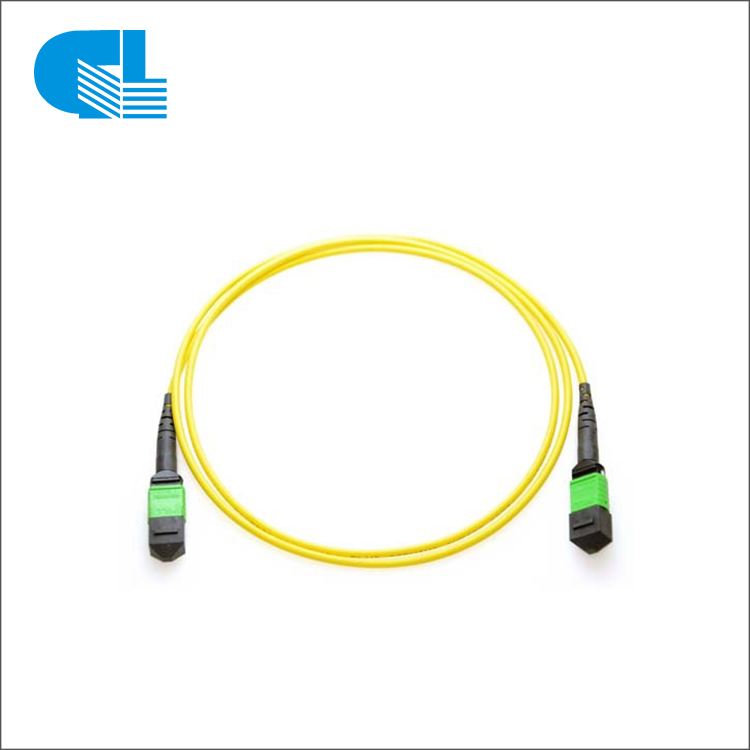

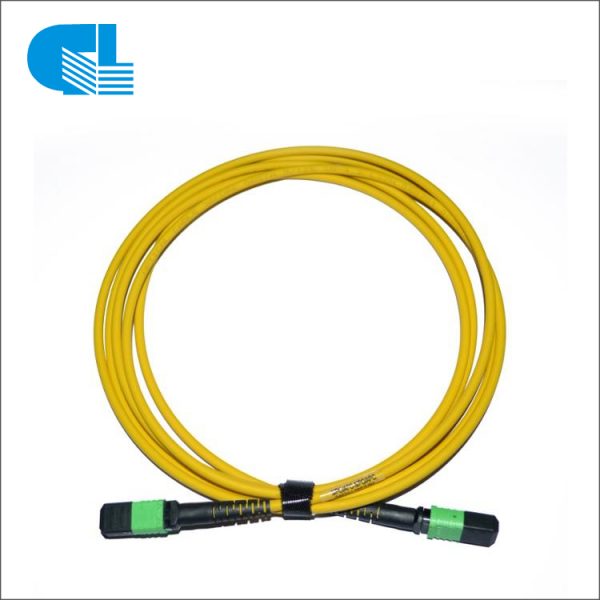

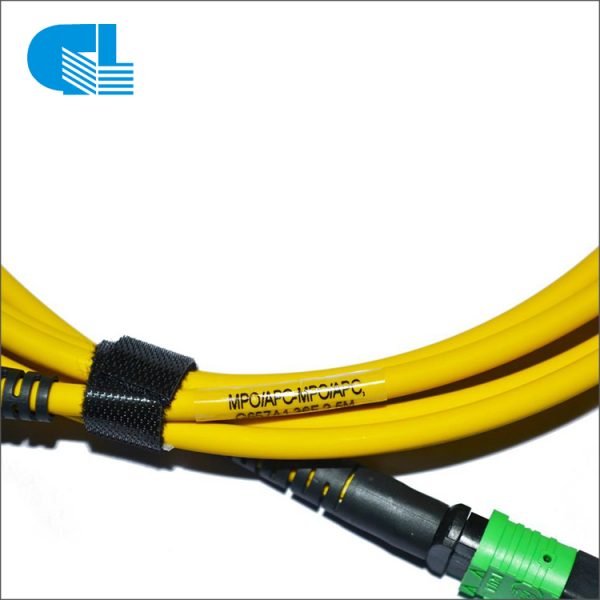

MTP/MPO Fiber Patch Cabl

MTP / MPO multi-fiber system is designed for the reliable and quick operations in data centers, where the obvious benefits are less space requirements and improved scalability, which providing significant space and cost savings.

  • Product Name: MTP/MPO Fiber Patch Cable
  • Brand Place of Origin: GL Hunan,China (Mainland)
  • Provide OEM/ODM Services !:
  • Categories: All Products, ODN Products, Patch Cord

    Description

    Specification

    Package & Tansportation

    Our MPO fiber patch connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating and are fully compliant with TIA/EI942, ISO/IEC 24764 and EN 50173-5, which are specific data center standards. The MPO fiber cable can be mass terminated in combinations of 4, 8, 12, 24 fiber ribbon/bunch cables. Optional Lengths available and provide secure transition between MTP / MPO and LC / SC / FC / ST connections. Available in singlemode (9/125μm), multimode(50 or 62.5/125μm) and 10Gig fiber.
    Features
    1.Easy connection and disconnection;
    2.Factory finished MPO plugs;
    3.Low smoke zero halogen (LSZH)jacket;
    4.Push-on / Pull-off latching connector;
    5.Each MPO connector is polished according the polished end-face quality specification standard.
    Applications
    1.Local Area Networks;
    2.Data Centre;
    3.Campus Networks;
    4.Storage Area Networks.
    Notes:

    Only a part of Joint Box/Splice Closure/Joint Closure are listed here. We can depend on customer’s requirement to producing the different model Joint Box/Splice Closure/Joint Closure.
    We supply OEM&ODM Service.
