GYXTY53 Uni-tube Anti-rodent Optical Cable

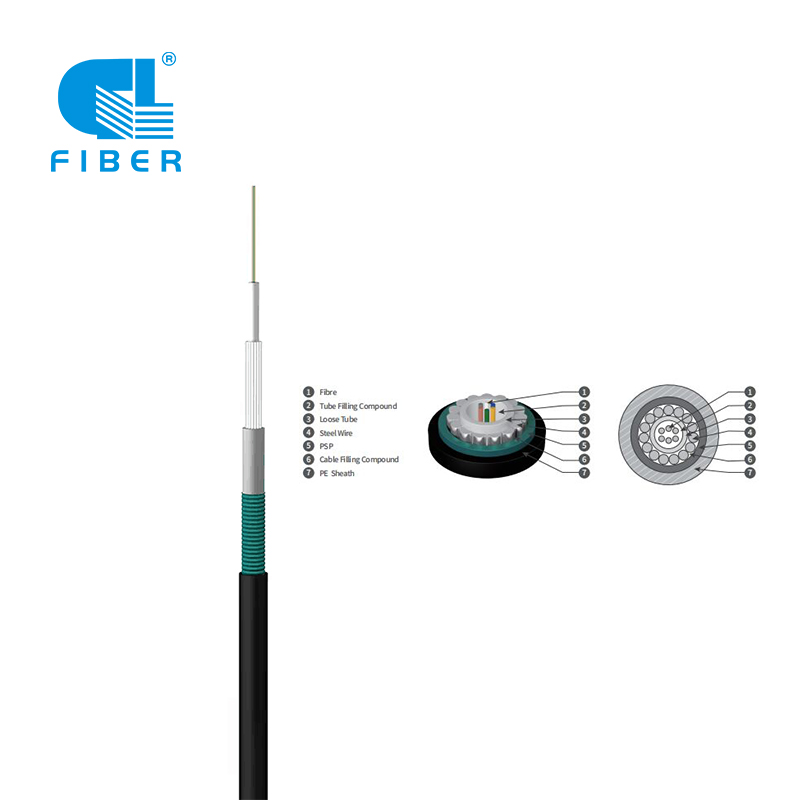

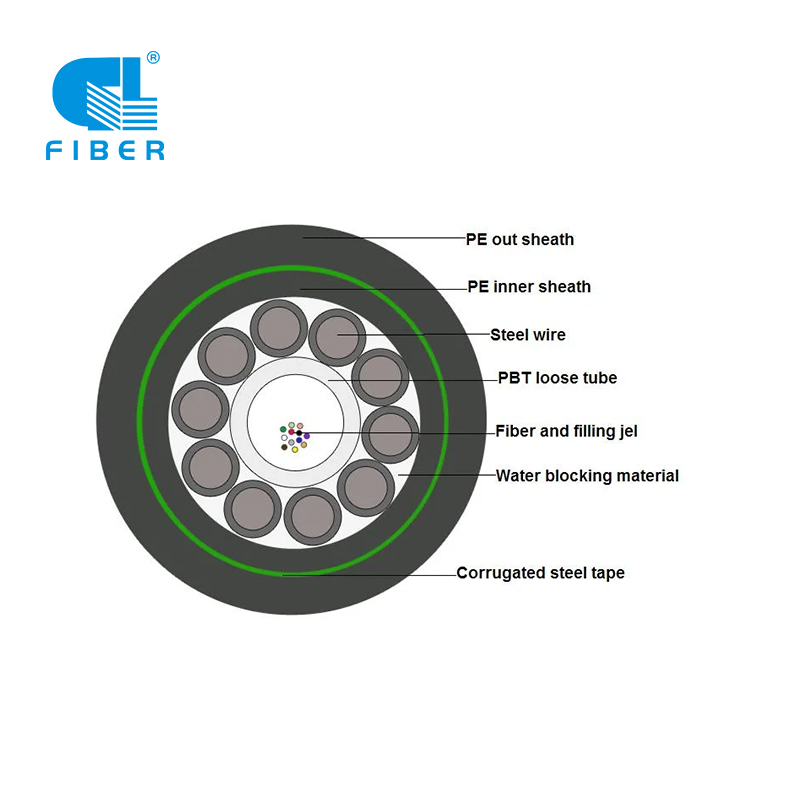

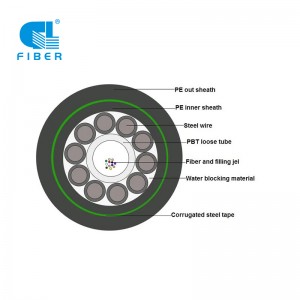

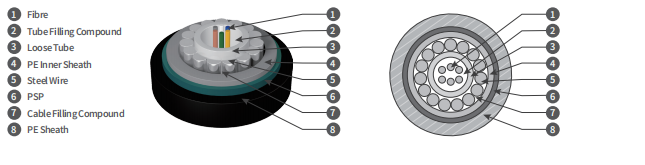

Cable Section Design:

Features:

• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing the key protection for fibres
• Excellent crush resistance and flexibility
• Small size and light weight, easy for installation
• Steel wire and steel tape armors providing excellent anti-rodent performance
• Applicable to duct, aerial and buried installations

Technical Characteristics:

Type(in 2F increments)	Fibre count	Tube size（mm）	Nominalthickness of sheath （mm）	Cable diameter（mm）	Cable weight（kg/km）	Tensile strengthLong/short term （N）	Crush Long/short term（N/100mm）
GYXTY53-2-12 Xn	2-12	2.5	2.0	10.9	144	600/1500	1000/3000
GYXTY53-14-18Xn	14-18	2.8	2.0	11.2	155	1000/3000	1000/3000
GYXTY53-20-24Xn	20-24	3.2	2.0	11.6	167	1000/3000	1000/3000
GYXTY53-26-30Xn	26-30	3.5	2.0	11.9	178	1000/3000	1000/3000
GYXTY53-32-36Xn	32-36	3.8	2.0	12.2	186	1000/3000	1000/3000

Note:
1. Xn refers to fibre type. For details, see naming rules for optical cables of GL Fiber.
2. For color arrangement of fibres, see the color sequence.

Environmental Characteristics:

• Transport/storage temperature: -40℃ to +70℃

Delivery Length:

• Standard length: 2,000m; other lengths are also available.

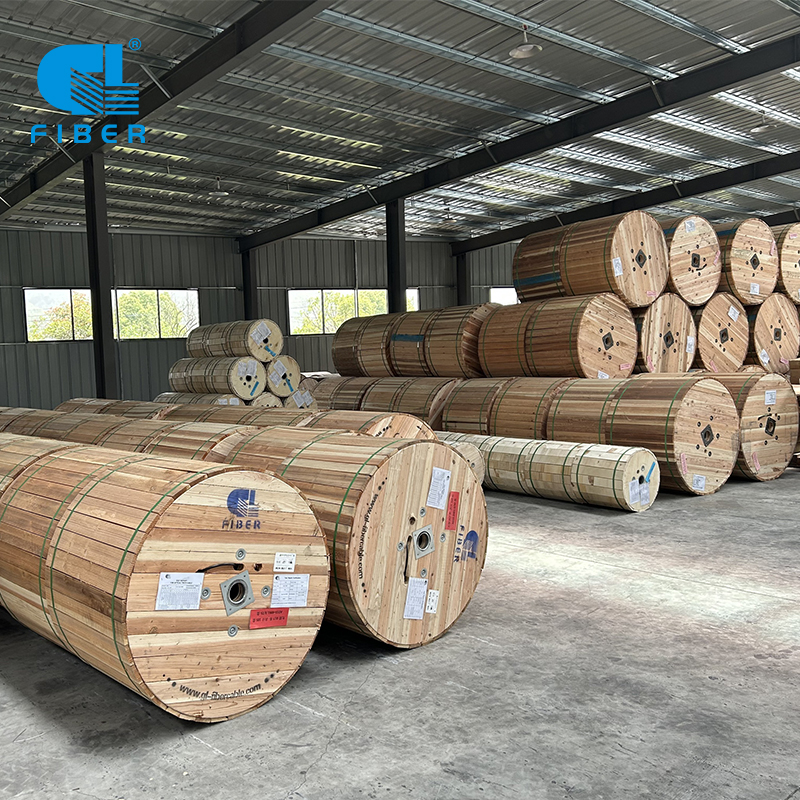

Packing Material:

Non-returnable wooden drum.
Both ends of the fiber optic cables are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%;

Cable printing:

The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.

The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

1. Cable type and number of optical fiber
2. Manufacturer name
3. Month and Year of Manufacture
4. Cable length

Drum marking:

Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:

1. Manufacture name and logo
2. Cable length
3. Fiber cable types and number of fibers,etc
4. Rollway
5. Gross and net weight

Port:
Shanghai/Guangzhou/Shenzhen

Lead Time：

Note:The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

Remark:  The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
