1.GENERAL
1.1CABLE DESCRIPTION
GL cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
1.2QUALITY
Excellent quality control is achieved through intense in-house quality check and stringent audit acceptance by ISO 9001.
1.3RELIABILITY
Initial and periodic product qualification tests for performance and durability are performed rigorously to ensure product reliability.
2.CABLE STRUCTURE

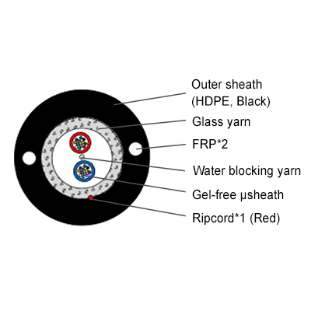

2.1 Cable Type: OFC-12/24 G.657A2/G.652D-DiC-S1 (Module 12)
GL micro module cable for duct1633GL micro module cable for duct485

Technical Characteristics

With excellent mechanical and environmental properties

Low weight, easy to install and joi

Dimension and Properties



Physical

Fiber count (G.657A2/G.652D)

12

24

μsheath No.

1

2

Fiber No. per module

12

μsheath diameter

1.5±0.1mm

FRP diameter

(1.0±0.1mm)*2

Outer sheath thickness

Nominal 2.0mm

Cable OD

7.4±0.5mm

8.2±0.5mm

Cable weight

32kg/km±15%

38kg/km±15%

Operation temperature range

-30 deg C to + 60 deg C

Installation temperature range

-5 deg C to + 40 deg C

Transport and storage temperature range

-40 deg C to + 70 deg C

   Mechanical Max. tensile load

100daN

Crush resistance

200daN/10cm

Minimal installation bending radius

20 x OD

Minimal operation bending radius

10 x OD


Color code scheme:

Fiber color red blue green yellow violet white orange grey brown black aqua rose
Modules color red blue / / / / / / / / / /

Note: sheath thickness not consider ripcord portion

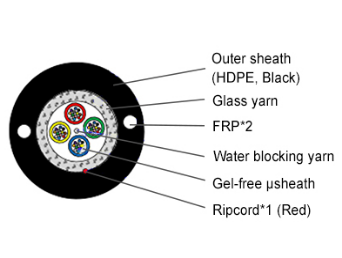

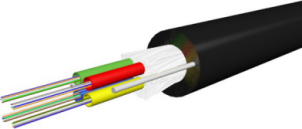

2.2 Cable Type: OFC-36/48 G.657A2/G.652D-DiC-S1

(Module 12)

GL micro module cable for duct1568 GL micro module cable for duct1633

Technical Characteristics

With excellent mechanical and environmental properties

Low weight, easy to install and joint

Dimension and Properties



Physical

Fiber count (G.657A2/G.652D)

36

48

μsheathNo.

3

4

Fiber No. per module

12

μsheathdiameter

1.5±0.1mm

FRP diameter

(1.0±0.1mm)*2

Outer sheath thickness

Nominal 2.0mm

Cable OD

8.8±0.5mm

9.3±0.5mm

Cable weight

37kg/km±15%

42kg/km±15%

Operation temperature range

-30 deg C to + 60 deg C

Installation temperature range

-5 deg C to + 40 deg C

Transport and storage temperature range

-40 deg C to + 70 deg C

   Mechanical Max. tensile load

100daN

Crush resistance

200daN/10cm

Minimal installation bending radius

20 x OD

Minimal operation bending radius

10 x OD

Color code scheme:

Fiber color red blue green yellow violet white orange grey brown black aqua rose
Modules color red blue green yellow / / / / / / / /

Note: sheath thickness not consider ripcord portion

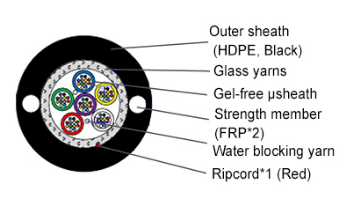

2.4 CABLE TYPE: OFC-96/144 G.657A2/G.652D-DiC-S1 (Module 12)

GL micro module cable for duct2689 GL micro module cable for duct2630

Technical Characteristics

l With excellent mechanical and environmental properties

l Has good bending performance, easy to install

Dimension and Properties



Physical

Fiber count (G.657A2/G.652D)

96

144

μsheathNo.

8

12

Fiber No. per module

12

μsheathdiameter

1.5±0.1mm

Strength member diameter

1.2±0.1mm*2

Outer sheath thickness

Nominal 2.2mm

Cable OD

11.3mm±5%

12.4mm±5%

Cable weight

98kg/km±15%

116kg/km±15%

Operation temperature range

-30 deg C to + 60 deg C

Installation temperature range

-5 deg C to + 40 deg C

Transport and storage temperature range

-40 deg C to + 70 deg C

   Mechanical Max. tensile load

200daN

Crush resistance

200daN/100mm

Minimal operation bending radius

20D

Minimal installation bending radius

10D

Color code scheme:

Fiber color

red

blue

green

yellow

violet

white

orange

gray

brown

black

aqua

rose

Module color

red

blue

green

yellow

violet

white

orange

 gray

brown

Light green

aqua

rose

Note: sheath thickness not consider ripcord portion

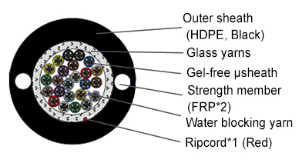

2.5 CABLE TYPE: OFC-288G.657A2/G.652D-DiC-S1

(Module 12)

GL micro module cable for duct4854 GL micro module cable for duct4856

Technical Characteristics

l With excellent mechanical and environmental properties

l Has good bending performance, easy to install

Dimension and Properties



Physical

Fiber count (G.657A2/G.652D)

288

μsheathNo.

24

Fiber No. per module

12

μsheathdiameter

1.5±0.1mm

Strength member diameter

1.6±0.1mm*2

Outer sheath thickness

Nom. 2.6mm

Cable OD

15.6mm±5%

Cable weight

176kg/km±15%

Operation temperature range

-30 deg C to + 60 deg C

Installation temperature range

-5 deg C to + 40 deg C

Transport and storage temperature range

-40 deg C to + 70 deg C

   Mechanical Max. tensile load

270daN

Crush resistance

200daN/100mm

Minimal operation bending radius

20D

Minimal installation bending radius

10D

 Color code scheme:

Fiber color

red

blue

green

yellow

violet

white

orange

gray

brown

black

aqua

rose

Module color

red

blue

green

yellow

violet

white

orange

 gray

brown

Light green

aqua

rose

1~12 tube with one black track

13~24 tube color: red, blue, green, yellow, violet, white, orange, gray, brown, light green, aqua, rose, with two black track
