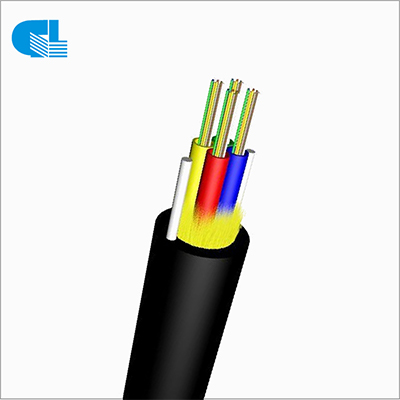

China Gold Supplier for Ofnp Fiber - Micromoudule 144 Core Aerial G.657A2 / G.652D (Module 12) – GL Technology Detail:

Technical Characteristics:

1,The unique extruding technology provides the fibers in the tube with good flexibility and bending endurance2,The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties3,Multiple water blocking material filling provides dual water blocking function

Dimension and Properties:
Physical
Fiber count (G.657A2/G.652D)
144
No. of fiber per tuber
12
No. of μsheath
12
μsheath diameter
1.5±0.1mm
Strength member diameter
1.4±0.1mm*2
Outer sheath thickness
Nominal 2.4mm
Cable OD
12.8mm±5%
Cable weight
82kg/km±15%
Operation temperature range
-30 deg C to + 60 deg C
Installation temperature range
-5 deg C to + 40 deg C
Transport and storage temperature range
-40 deg C to + 70 deg C
Mechanical
Max. tensile load
1800N
Span
50m
Crush resistance
2000 N/10cm
Minimal installation bending radius
20 x OD
Minimal operation bending radius
10 x OD
Color code scheme:
Fiber color red blue green yellow violet white orange grey brown black aqua rose
Modules color red blue green yellow violet white orange grey brown light green aqua rose

Note: Sheath thickness not consider ripcord portion

OEM Services is available!
E-mail:[email protected]
Write your message here and send it to us

Product detail pictures:

China Gold Supplier for Ofnp Fiber -
 Micromoudule 144 Core Aerial G.657A2 / G.652D (Module 12) – GL Technology detail pictures

China Gold Supplier for Ofnp Fiber -
 Micromoudule 144 Core Aerial G.657A2 / G.652D (Module 12) – GL Technology detail pictures

Related Product Guide:

We consistently carry out our spirit of ''Innovation bringing development, Highly-quality ensuring subsistence, Management promoting benefit, Credit attracting customers for China Gold Supplier for Ofnp Fiber - Micromoudule 144 Core Aerial G.657A2 / G.652D (Module 12) – GL Technology, The product will supply to all over the world, such as: Cambodia , Dominica , UAE , Based on our guiding principle of quality is the key to development, we continually strive to exceed our customers' expectations. As such, we sincerely invite all interested companies to contact us for future cooperation, We welcome old and new customers to hold hands together for exploring and developing; For more information, be sure to feel free to contact us. Thanks. Advanced equipment, strict quality control, customer-orientation service, initiative summary and improvement of defects and extensive industry experience enable us to guarantee more customer satisfaction and reputation which, in return, brings us more orders and benefits. If you are interested in any of our merchandise, make sure you feel free to contact us. Inquiry or visit to our company are warmly welcome. We sincerely hope to start a win-win and friendly partnership with you. You can see more details in our website.

Optical Cable Factory

In 2004, GL FIBER established the factory to produce optical cable products, mainly producing drop cable, outdoor optical cable, etc.

GL  Fiber now have 18 sets of coloring equipments, 10 sets of secondary plastic coating equipments, 15 sets of SZ layer twisting equipments, 16 sets of sheathing equipments, 8 sets of FTTH drop cable production equipments, 20 sets of OPGW optical cable equipments, and 1 paralleling equipment And many other production auxiliary equipments. At present, the annual production capacity of optical cables reaches 12 million core-km (average daily production capacity of 45,000 core km and kinds of cables can reach  1,500 km) . Our factories can produce various types of indoor and outdoor optical cables ( such as ADSS, GYFTY, GYTS, GYTA, GYFTC8Y, air-blown micro-cable, etc.). the daily production capacity of common cables can reach 1500KM/day, the daily production capacity of drop cable can reach max. 1200km/day, and the daily production capacity of OPGW can reach 200KM/day.
