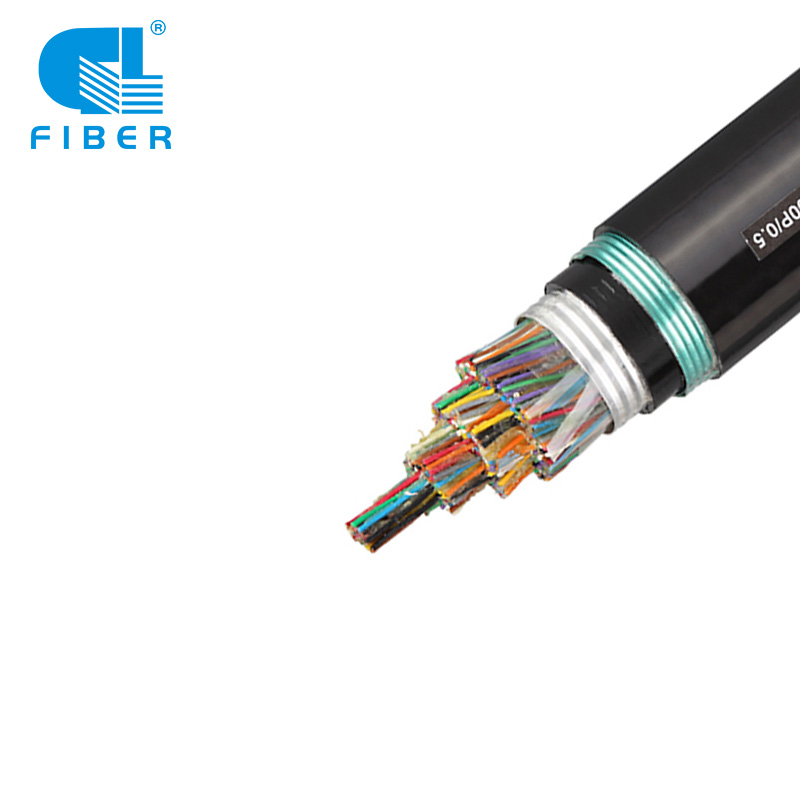

200 Pairs Armoured UG Buried Jelly Filled Telephone Cable

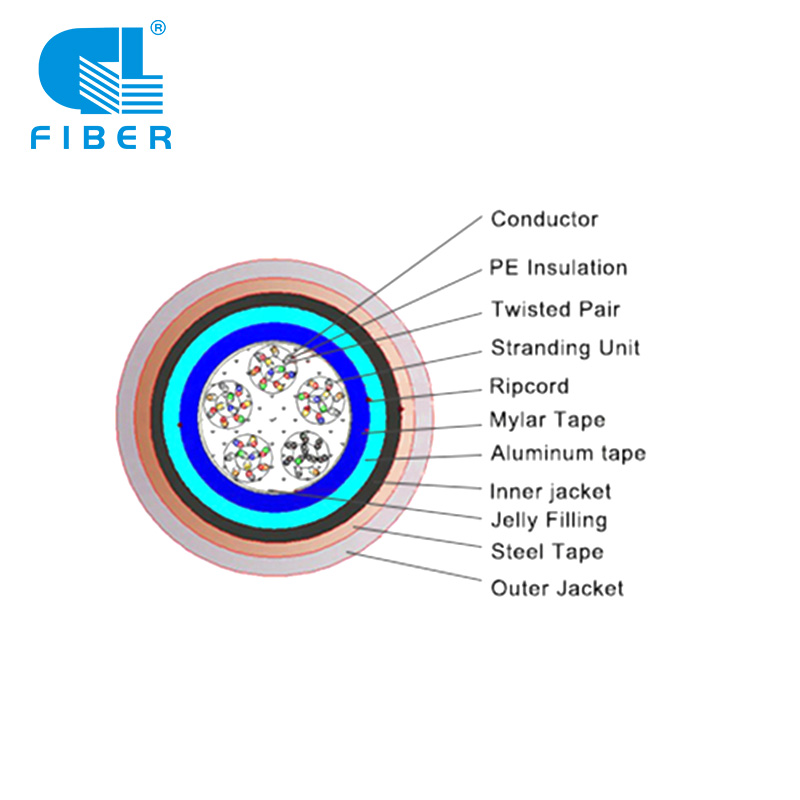

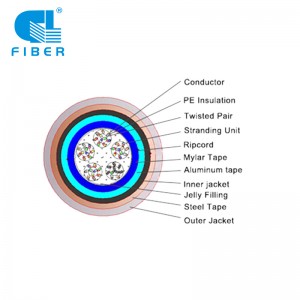

HYAT53-Local Communication Cable with Copper Core, Solid Polyolefin Insulation, Filling Compound, Aluminum-plastic Laminated Inner Sheath, Single Steel Tape Longitudinal Wrapping Armor and Laminated Outer Jacket.Underground telephone cable is directly buried under ground or threaded pipes which connect cable tunnels together.

Product Name: 200 Pairs Armoured UG Buried Jelly Filled Telephone Cable

Brand Place of Origin: GL Hunan,China (Mainland)

Application: Indoor/Outdoor Lead-in Wire for Telephone Network Users

Starting custom your ideal size By E-mail: [email protected]

Send email to us Open Whats App

Description

Specification

Package & Shipping

Factory Show

Leave Your Feedback

Application: Direct Buried/Underground/Outdoor

Rated Temperature :-30 ℃ ~ 60 ℃. Laying temperature:>-5℃.

Usage: Transmitting audio frequency signals, analog signals up to 150kHz or digital signals up to 2048kbit/s and in certain condition can carry digital signals, which is higher than 2048kbit/s.

Telephone Cable Specfication:

Part Number		10P filled underground Telephone Cable
Conductor	Diameter(mm)	0.5±0.01
	Material	Bare Copper
	Type	Solid
Dielectric(Insulation)	Diameter	0.92±0.01
Dielectric(Insulation)	Material	Solid PE
Twist		2wire twist)
Fillde		water resistant compound
Core Wrapping	Material	plastic tape
Core Wrapping	Thickness (mm)	0.04±0.01
Shield	Material	Al Tape
Shield	Thickness(mm)	0.25
Inside Jacket(sheath)	Material	LDPE
	Colour	Black
	Thickness(mm)	1.1±1.0
	Diameter(mm)	9.0±0.5
Armor	Material	Corrugated Steel Tape
	Width(mm)	39
	Thickness(mm)	0.23
Jacket(sheath)	Diameter(mm)	12.5±0.5
	Thickness(mm)	1.4±0.5
	Material	LDPE
	Colour	Black
Resistance(ohms/km )		≤95
Insulation Resistance(Gohms/km )		≥5
Mutual Capacitance (Nf/km )		50±5
Number of Pairs		10

Notes:

More Telephone Cable(HYA, HYAT, HYAT53, HYAT23, HYATC, HYAC, HSYV, HYV, etc ).

Can be produced according to the customer’s demands.

Write your message here and send it to us

Application: Direct Buried/Underground/Outdoor

Rated Temperature :
-30 ℃ ~ 60 ℃. Laying temperature:>-5℃.

Usage: Transmitting audio frequency signals, analog signals up to 150kHz or digital signals up to 2048kbit/s and in certain condition can carry digital signals, which is higher than 2048kbit/s.

Telephone Cable Specfication:

Part Number		10P filled underground Telephone Cable
Conductor	Diameter(mm)	0.5±0.01
	Material	Bare Copper
	Type	Solid
Dielectric(Insulation)	Diameter	0.92±0.01
Dielectric(Insulation)	Material	Solid PE
Twist		2wire twist)
Fillde		water resistant compound
Core Wrapping	Material	plastic tape
Core Wrapping	Thickness (mm)	0.04±0.01
Shield	Material	Al Tape
Shield	Thickness(mm)	0.25
Inside Jacket(sheath)	Material	LDPE
	Colour	Black
	Thickness(mm)	1.1±1.0
	Diameter(mm)	9.0±0.5
Armor	Material	Corrugated Steel Tape
	Width(mm)	39
	Thickness(mm)	0.23
Jacket(sheath)	Diameter(mm)	12.5±0.5
	Thickness(mm)	1.4±0.5
	Material	LDPE
	Colour	Black
Resistance(ohms/km )		≤95
Insulation Resistance(Gohms/km )		≥5
Mutual Capacitance (Nf/km )		50±5
Number of Pairs		10
