Long Span ADSS Double Jacket Fiber Cable Up To 1000m

Long Span ADSS provides reliable self-support performance for up to 1000 meters. Each Long Span ADSS cable is custom engineered for optimum placement on utility towers and to operate under full weather load, ensuring safe reliable lifetime performance. For installation on high-voltage lines up to 275 KV, an optional track-resistant jacket prevents dry-band arcing damage. Fiber counts is available up to 288 fibers.

The excellent quality and service of GL’s ADSS cable have won the praise of a large number of customers at home and abroad, and the products are exported to many countries and regions such as South and North America, Europe, Asia and UEA. We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of optical fiber ADSS cable is 2, 6, 12, 24, 48 cores, up to 288 cores.

Fiber Type: G652D; G655C.

Fiber Count: 2-288 Core Is Available.

Span: Up to 1000m.

Standard: IEC 60794-4、 IEC 60793、TIA/EIA 598 A

Send email to us Open Whats App

Description

Specification

Package & Tansportation

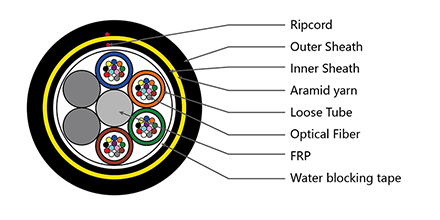

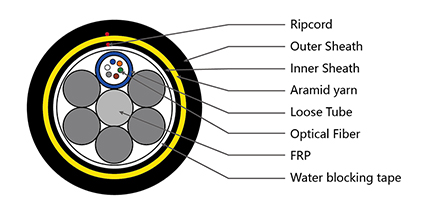

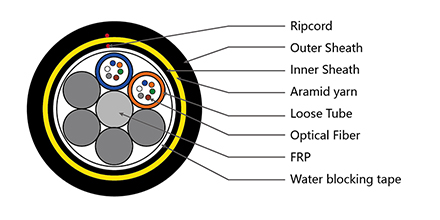

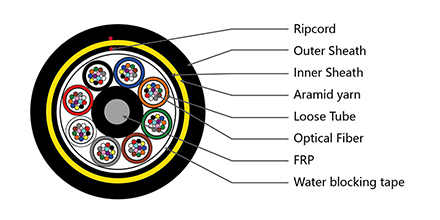

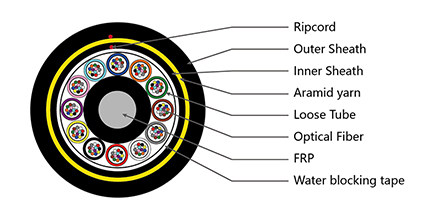

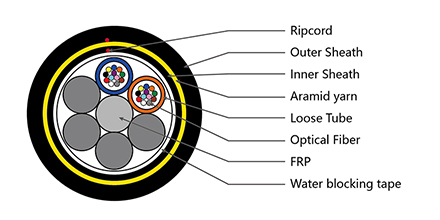

Structure Design:

Main Features:
1. Two Jacket and stranded loose tube design . Stable performance and compatibility with all common fiber types;
2. Track -Resistant outer jacket available for the high voltage ( ≥35KV)
3. Gel-Filled buffer tubes are S-Z stranded
4. Instead of Aramid yarn or glass yarn,there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain Performance
5. Fiber counts from 6 to 288fibers
6. Span up to 1000meter

Standrads
IEC 60794-4、 IEC 60793、TIA/EIA 598 A.

Product Parameter:

Items	Condition	Value
Fiber count	-	2 to 144 core
Max. tensile strength (N)	Short term	As per requested
Max. tensile strength (N)	Long term	As per requested
Max. crush strength (N/mm)	Short term	3000 /2200
Max. crush strength (N/mm)	Long term	1000
Min. bend radius (mm)	Statics	12.5 * cable diameter
Min. bend radius (mm)	Dynamics	25 * cable diameter
Drum length (KM)	-	2 to 4
Working temperature (℃)	-	-40 to +60
Contact us for more details

Remarks:
Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Span or tensile strength
D, weather conditions

How to Ensure the Quality and Performance of Your Fiber Optic Cable?
We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , GL also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).
Quality Control - Test Equipment and Standard:

Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: inquiry@gl-fibercable.com.

Write your message here and send it to us

Specification of Optical Fiber:

(Item)		Unit	Specification	Specification	Specification	Specification
(Item)		Unit	G. 657A1	G. 657A2	G. 652D	G. 655
Mode field diameter	1310nm	mm	8.6-9.5 ± 0.4	8.6-9.5 ± 0.4	9.2 ± 0.4	9.6± 0.4μm
Cladding diameter		mm	125.0 ± 0.7	125.0 ± 0.7	125.0 ± 1	125 ±0.7μm
Cladding non-circularity		%	£1.0	£1.0	£1.0	£1.0
Core/cladding concentricity error		mm	£0.5	£0.5	£0.5	£0.5
Coating diameter		mm	245 ± 5	245 ± 5	242 ± 7	242 ± 7
Coating/cladding concentricity error		mm	£12	£12	£12	£12
Cable cut-off wavelength		nm	£ 1260	£ 1260	£ 1260	£ 1260
Attenuation Coefficient	1310nm	dB/km	£0.36	£0.36	£0.35	£0.35
Attenuation Coefficient	1550nm	dB/km	£0.22	£0.22	£0.22	£0.22
1 turn on 10±0.5mm Dia. Mandrel	1550nm	dB/km	£0.75	£0.5	-	-
1 turn on 10±0.5mm Dia. Mandrel	1625nm	dB/km	£1.5	£1.0	-	-
Proof stress level		kpsi	≥100	≥100	≥100	≥100

(Item)		Unit	Specification	Specification	Specification	Specification
(Item)		Unit	OM1	OM2	OM3	OM4
Mode field diameter	1310nm	mm	62.5±2.5	50±2.5	50±2.5	50±2.5
Mode field diameter	1550nm	mm	125.0 ± 1.0	125.0 ± 1.0	125.0 ± 1.0	125.0 ± 1.0
Cladding diameter		mm	£1.0	£1.0	£1.0	£1.0
Cladding non-circularity		%	£1.5	£1.5	£1.5	£1.5
Core/cladding concentricity error		mm	245 ± 10	245 ± 10	245 ± 10	245 ± 10
Coating diameter		mm	£12	£12	£12	£12
Coating/cladding concentricity error		mm	≥ 160	≥ 500	≥ 1500	≥ 3500
Cable cut-off wavelength		nm	≥ 500	≥ 500	≥ 500	≥ 500
Attenuation Coefficient	1310nm	dB/km	£3.5	£3.5	£3.5	£3.5
Attenuation Coefficient	1550nm	dB/km	£1.5	£1.5	£1.5	£1.5
Proof stress level		kpsi	≥100	≥100	≥100	≥100
