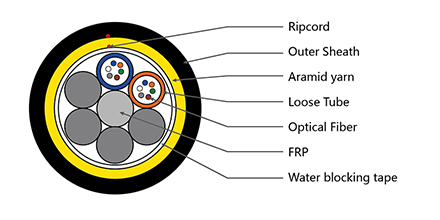

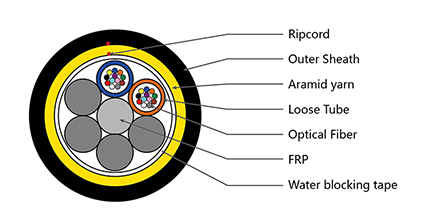

Structure Design:
Main Feature:
1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication；
2. Track -Resistant outer jacket available for the high voltage (≥35KV); HDPE outer jacket available for the high voltage (≤35KV)；
3. Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
4. Gel-Filled buffer tubes are S-Z stranded;
5. Can be installed without shutting off the power.
6. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
7. Good performance of tensile strength and temperature.
8. The design life span is over 30 years.
Standards:
GL Technology's ADSS Fiber Optical Cable complies with IEC 60794-4, IEC 60793, TIA/EIA 598 A standards.
Advantages of GL ADSS Optical Fiber Cable:
1.Good aramid yarn have excellent tensile performance;
2.Fast delivery, 200km ADSS cable regular production time about 10 days;
3.Can using glass yarn instead of aramid to anti rodent.
Technical Parameter:
| Fiber count |
Structure |
Fiber per tube |
Thickness of outer jacket
(mm) |
Outer jacket material |
Cable diameter(mm) |
MAT(KN) |
Crush Short term |
Temperature |
Min. bending radius |
Wind speed |
Ice cover |
| Operation Temperature |
Storage Temperature |
Static |
Dynamic |
| 4 |
1+6 |
4 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
10 times cable diameter |
20 times cable diameter |
25m/s |
0 |
| 6 |
1+6 |
6 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 8 |
1+6 |
8 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 12 |
1+6 |
6/12 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 24 |
1+6 |
6/12 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 36 |
1+6 |
6/12 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 48 |
1+6 |
8/12 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 72 |
1+6 |
12 |
1.5-1.7 |
HDPE |
10.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 96 |
1+8 |
12 |
1.5-1.7 |
HDPE |
10.8±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 144 |
1+12 |
12 |
1.5-1.7 |
HDPE |
12.2±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
| 288 |
1+12 |
24 |
1.5-1.7 |
HDPE |
17.0±0.5 |
1.8-2.1 |
1000N/100mm |
-20℃～+70℃ |
-40℃～+70℃ |
REMARKS:
Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Span or tensile strength
D, weather conditions
